Valve Body Crack Growth from Weld Defects

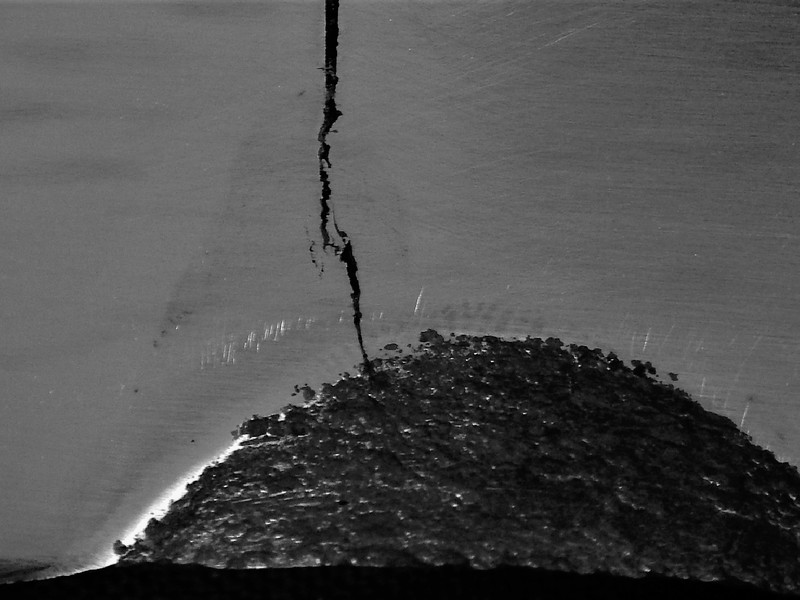

Macrographic detail of the cracked position close to the actuator hole. The through wall crack presented a branch aspect in the weld metal, that is the original defect created during welding, and a straight aspect when propagating from the repair.

19

27

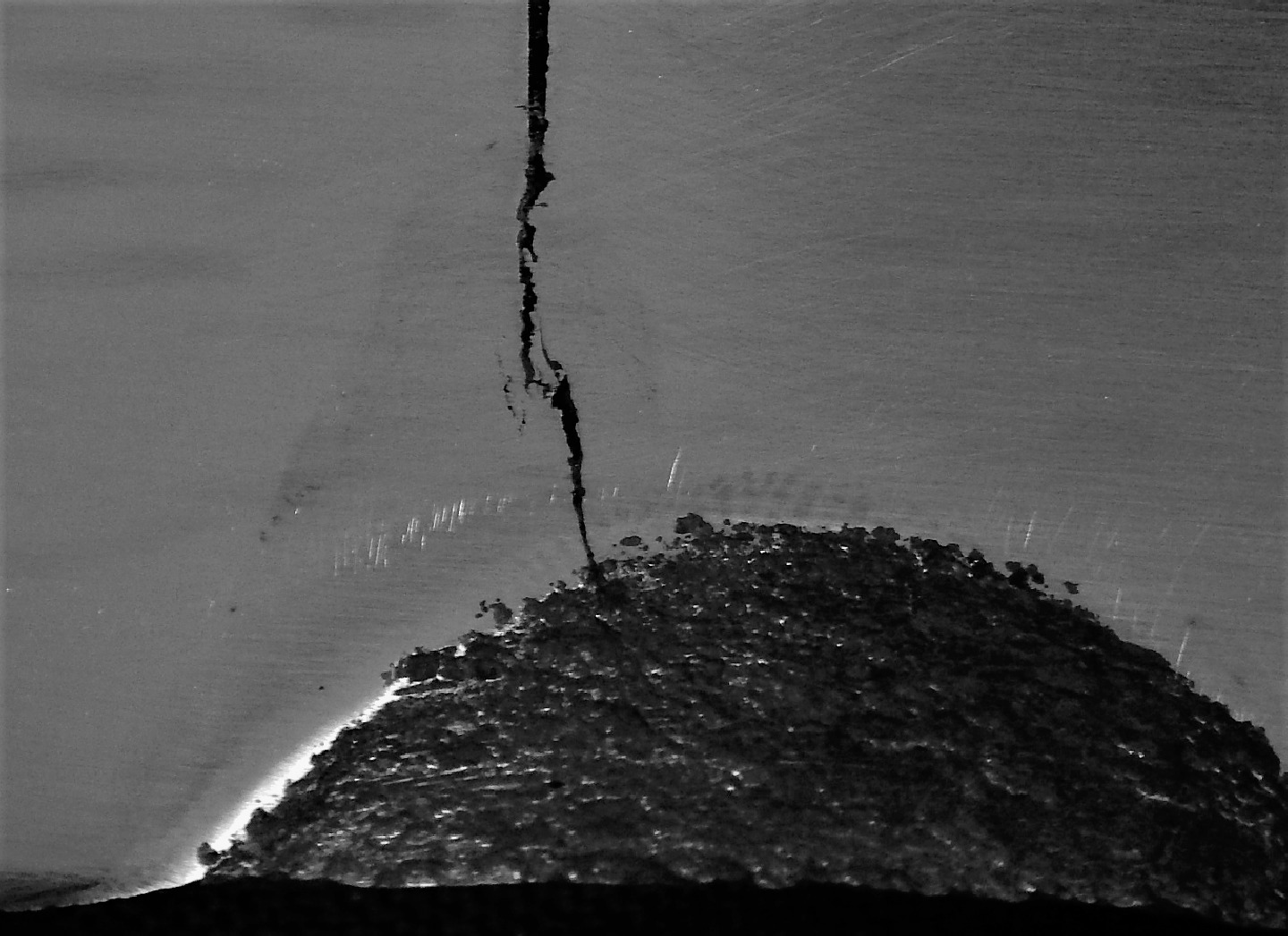

Macrographic detail of the cracked position close to the actuator hole. The through wall presented a branch aspect in the , that is the original defect created during , and a straight aspect when propagating from the repair.
M

Material

Low Alloy Medium Carbon QT
  • AISI 4340
Ds

Description

The control flow presented after three months in operation. During pressure test to identify the leakage location it was detected a linear , transverse to the body, originated in the actuator hole. The metallurgical analysis showed that the body is a high strength , with good impact energy at -18°C, and there was a close to the actuator hole, with (hot cracks) that created a condition for propagation through wall.

C

Chemistry (% in weight)

body chemistry

0.42C; 0.27Si; 0.73Mn; 0.019P; 0.010S; 0.78Cr; 1.76Ni; 0.23Mo; 0.17Cu.

weld metal chemistry

0.21C; 0.49Si; 1.33Mn; 0.018P; 0.016S; 0.39Cr; 0.68Ni; 0.35Mo; 0.21Cu.
