Valve Body Crack Growth from Weld Defects

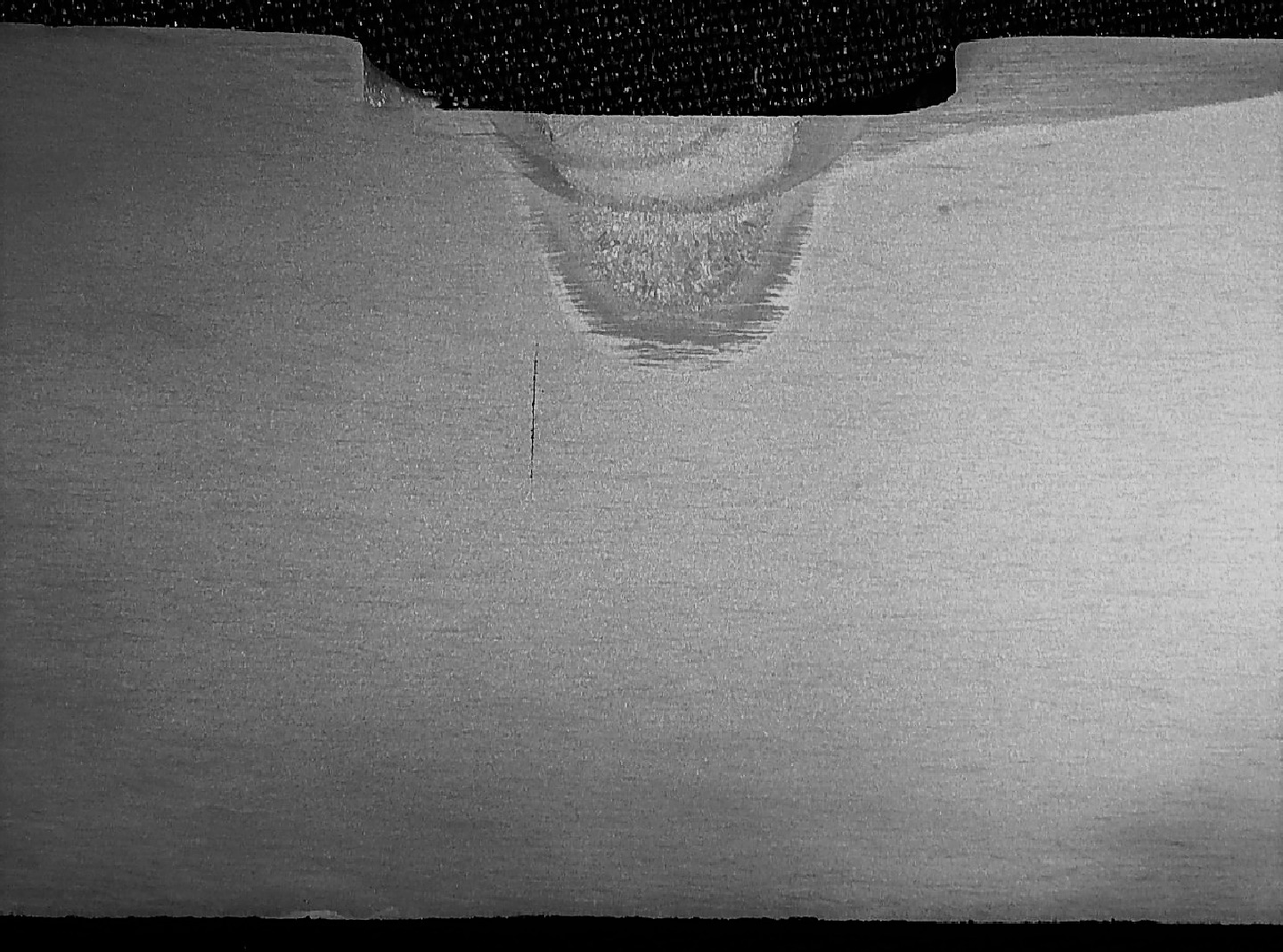

Macrography of the longitudinal section of the valve body, at the cracked position, a little far from the actuator hole. The valve body is 40 mm thick at this position and it is possible to see that at this position only one region is welded in repair, close to the outer surface (top), and there is a crack, transverse to the thickness, that is difficult to see with this magnification and that is clearly the propagation in fatigue.

11

47
of the of the body, at the cracked position, a little far from the actuator hole. The body is 40 mm thick at this position and it is possible to see that at this position only one region is welded in repair, close to the outer surface (top), and there is a , transverse to the thickness, that is difficult to see with this magnification and that is clearly the propagation in .
M

Material

Low Alloy Medium Carbon QT
  • AISI 4340
Ds

Description

The control flow presented after three months in operation. During pressure test to identify the leakage location it was detected a linear , transverse to the body, originated in the actuator hole. The metallurgical analysis showed that the body is a high strength , with good impact energy at -18°C, and there was a close to the actuator hole, with (hot cracks) that created a condition for propagation through wall.

C

Chemistry (% in weight)

body chemistry

0.42C; 0.27Si; 0.73Mn; 0.019P; 0.010S; 0.78Cr; 1.76Ni; 0.23Mo; 0.17Cu.

weld metal chemistry

0.21C; 0.49Si; 1.33Mn; 0.018P; 0.016S; 0.39Cr; 0.68Ni; 0.35Mo; 0.21Cu.
