Thermal Spray Layer in a Pinion Shaft

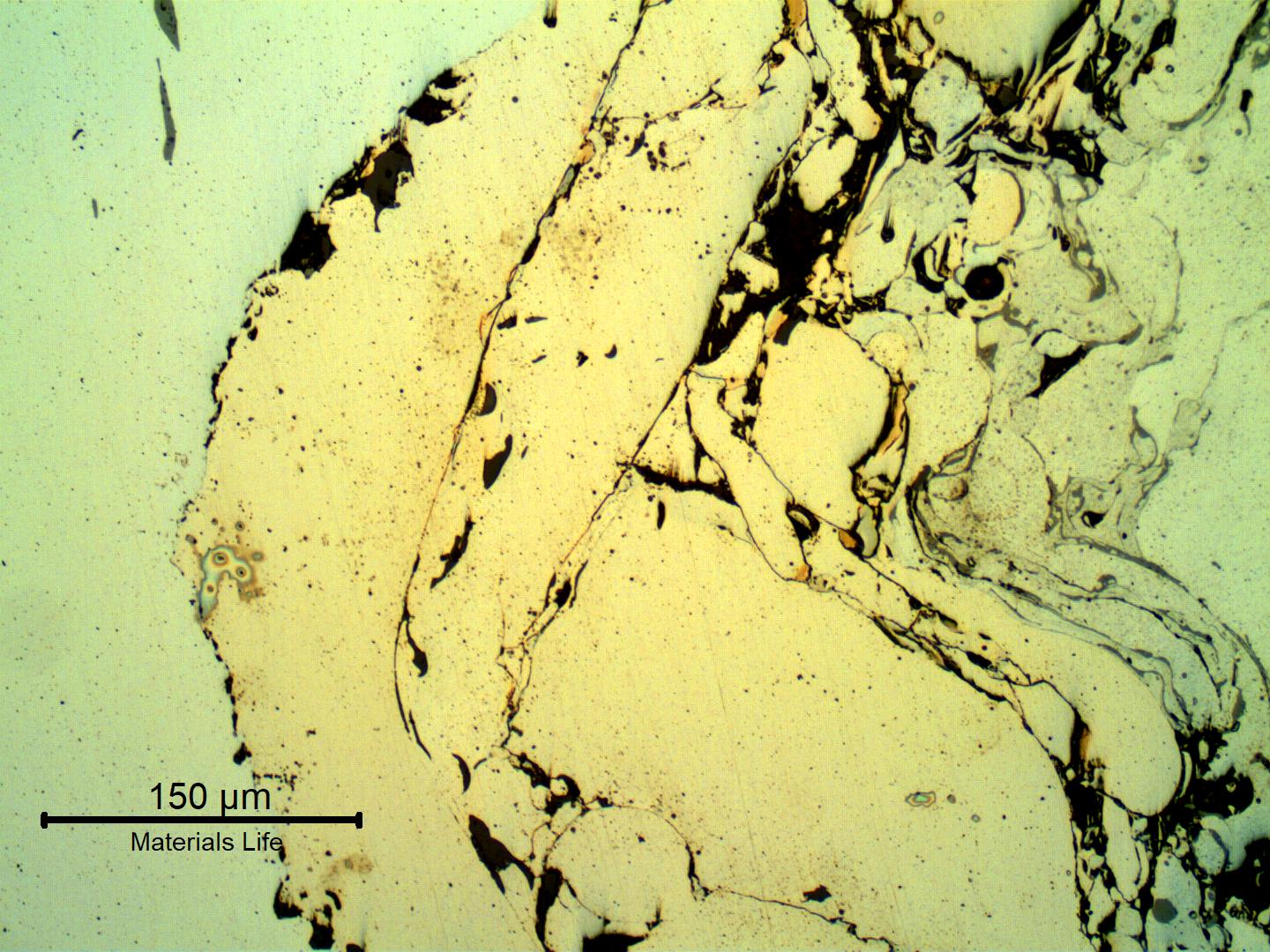

Micrographic detail, as polished in a longitudinal section, of the interface between the shaft substrate and the thermal spray layer. In the left it is the shaft substrate also presenting parts of aligned inclusions (gray). In the center it is the Ni base TS alloy and in the right it is the Cr base TS alloy. There are also black voids and grey oxides.

5

33
Micrographic detail, in a , of the interface between the substrate and the layer. In the left it is the substrate also presenting parts of aligned inclusions (gray). In the center it is the base alloy and in the right it is the base alloy. There are also black and grey oxides.
M

Material

High Strength Low Alloy
  • AISI 4820
  • DIN 1.6587
  • UNS G48200
  • EN 10084 18CrNiMo7
Ds

Description

The pinion failed after several years in service. It was manufactured using a that usually requires surface hardening at the positions, but the surface did not present any evidence of . Instead, the contact regions presented a (TS) layer, in two alloys, a base at the interface and a base , but the hardness level at the surface is only slightly higher than the shaft itself. The TS layer detached in several regions.

C

Chemistry (% in weight)

Shaft Analysis

0.18C; 0.22Si; 0.54Mn; 0.010P; 0.010S; 1.8Cr; 1.6Ni; 0.27Mo; 0.08Cu; 0.012V.

Thermal Spray Surface

1.1C; 2.1Si; 1.4Mn.

Associated Images
Shaft pinion presenting the bearing surface, with machining markes, from where the thermal spray layer was detached. The diameter of the 880 mm long shaft in this region is about 75 mm.
