WC Layer Detached from a Cast Lean Duplex

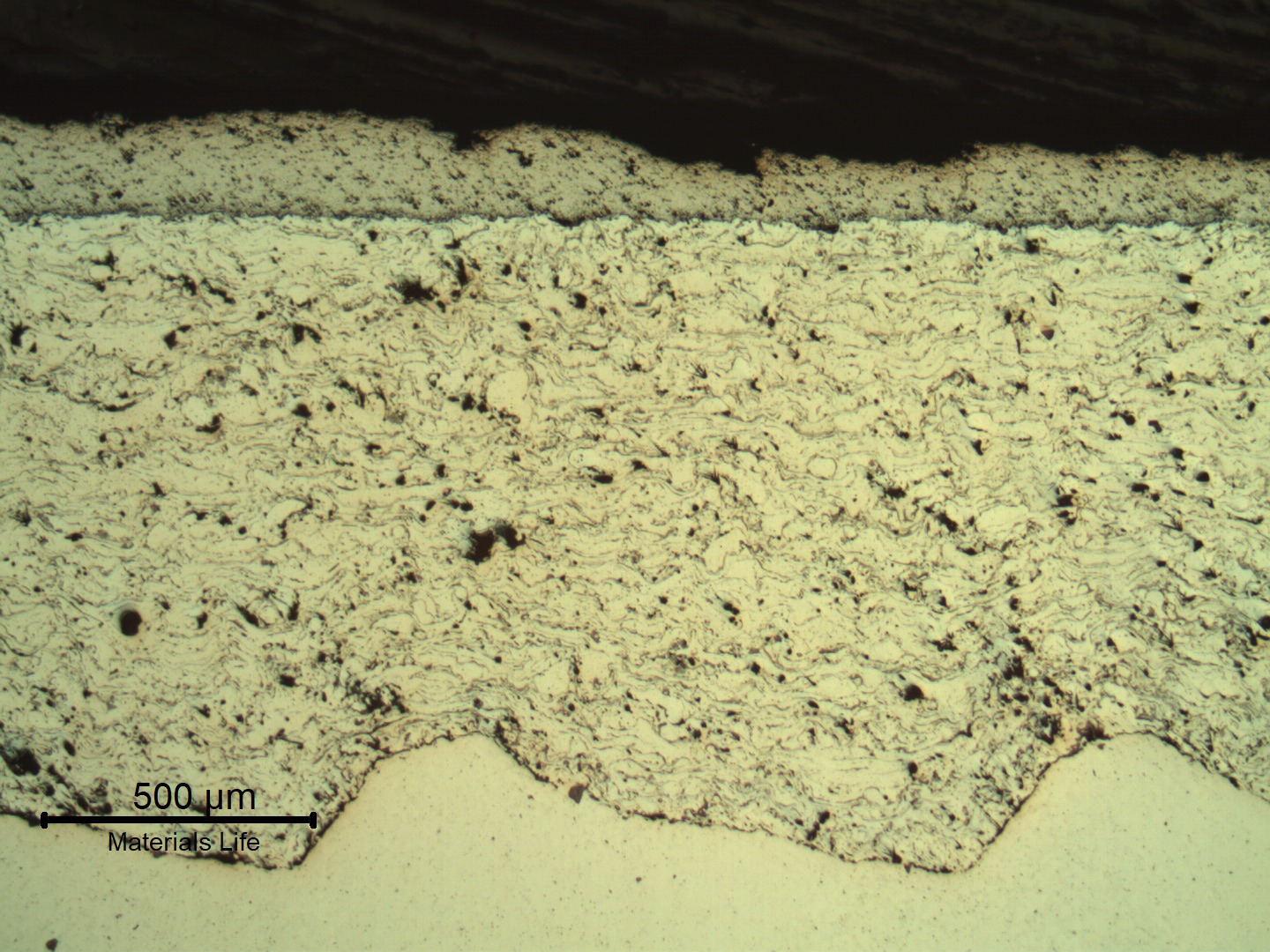

Micrography of a longitudinal section of the sleeve, in a region where the surface layer starts detachment. This grey layer is the tugnsten carbide; and the white layer (1000 microns) is a stainless steel. In this case the first TS layer is sound. The substrate is white in the bottom of the figure.

25

20
of a of the sleeve, in a region where the surface layer starts detachment. This grey layer is the tugnsten carbide; and the white layer (1000 microns) is a . In this case the first layer is . The substrate is white in the bottom of the figure.
M

Material

Lean Duplex Stainless Steel
  • UNS S32304
  • ALLOY 2304
Ds

Description

This centrifugally cast lean duplex , manufactured as a flanged sleeve, is responsible for sealing (at its outer diameter) an oiled system from seawater, but a was detected after five years in service. The failure is associated to the detachement of the tungsten carbide layer, applied by , and although the DSS substrate presented , perhaps associated to the preheating to apply the , the material of the substrate was not corroded.

C

Chemistry (% in weight)

Casting

0.96Si; 0.53Mn; 0.011P; 0.016S; 22.5Cr; 4.2Ni; 0.46Mo; 0.11Nb; 0.23Cu; 0.08V.
