Thermal Fatigue of a Marine Boiler

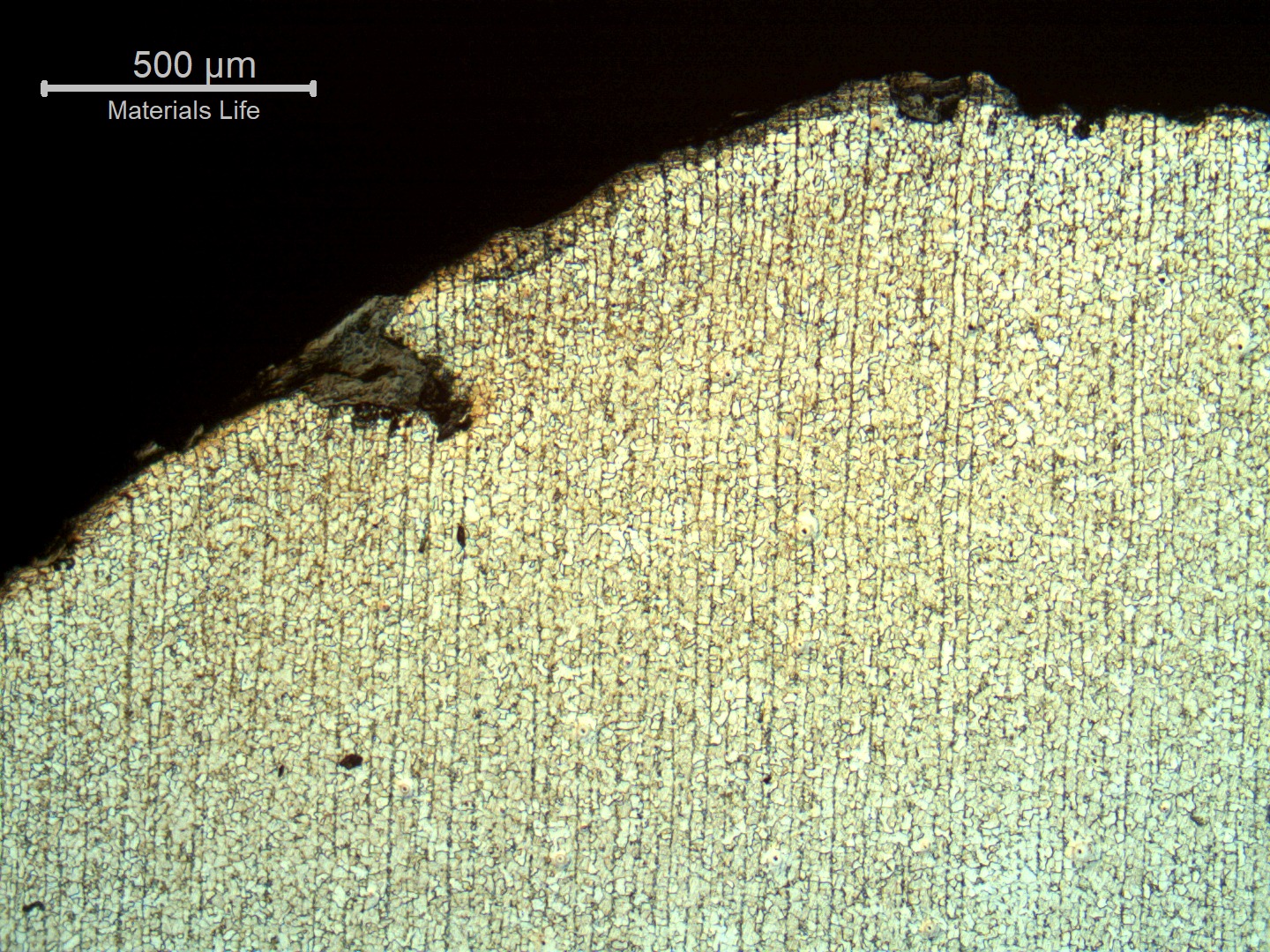

Micrography of the section transverse to the weld, presenting one crack at the edge of the tube. This is not the best direction of analysis because the cracks are parallel to the analyzed section. It is possible to see the crack from the surface, large and filled with oxides.

15

78
of the section transverse to the weld, presenting one at the edge of the . This is not the best direction of analysis because the are parallel to the analyzed section. It is possible to see the from the surface, large and filled with oxides.
M

Material

Low Carbon Steel
  • EN 10028-2 grade P295GH
  • EN 10216-2 grade P265GH
Ds

Description

After 8 years in service with intermittent operation, the auxiliary of a had presented water at the welded position between the smoke (water cooled from outside) and the combustion chamber (tubesheet). The metallurgical analysis revealed the presence of multiple formed at regions of different expansion due to different shapes, during heating and cooling cycles.

C

Chemistry (% in weight)

Tube

0.13C; 0.19Si; 0.49Mn; 0.006P; 0.013S; 0.04Cr; 0.06Ni; 0.02Mo; 0.14Cu.

Plate

0.22C; 0.32Si; 1.08Mn; 0.006P; 0.012S; 0.03Cr; 0.05Ni; 0.01Mo; 0.02Cu.

Weld Metal

0.09C; 0.37Si; 0.91Mn; 0.006P; 0.015S; 0.03Cr; 0.22Ni; 0.03Mo; 0.03Cu.

Associated Images
Multiple thermal fatigue cracks at the welded joint between the smoke tube (vertical, internal diameter 248mm) and the tubesheet (horizontal, plate of 22 mm thickness). This is a view from the combustion chamber. The dye check tests revealed several parallel cracks.
