Intergranular SCC of Pure Nickel

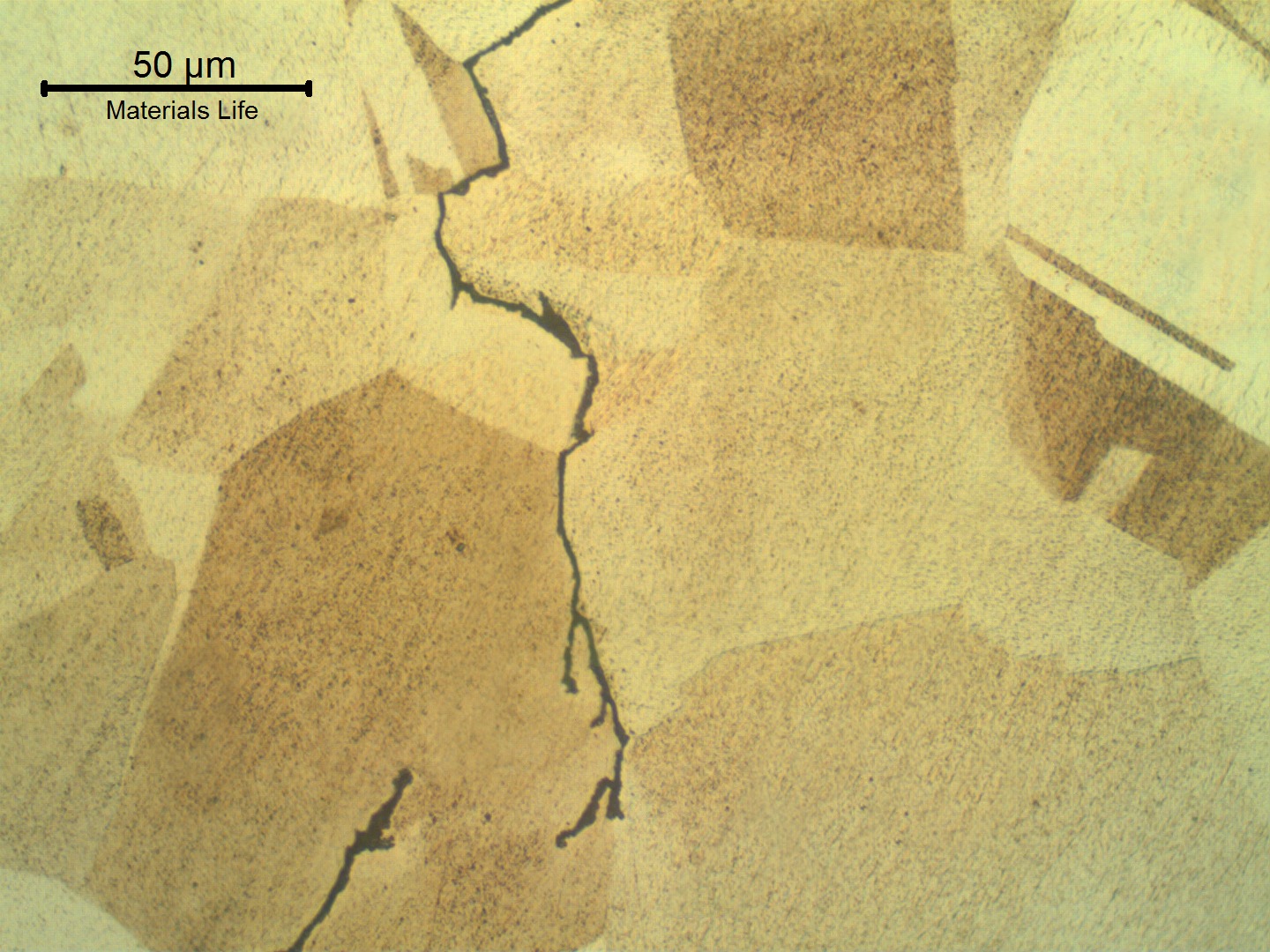

Crack propagation with intergranular and transgranular aspects.

13

45
propagation with intergranular and transgranular aspects.
M

Material

Unalloyed Nickel
  • UNS N02200
  • ASTM B 366 Ni 200
Ds

Description

The was in operation in a caustic line, at 90°C/100°C, and presented longitudinal after less than 1 year in service. The failure occurred by a mechanism, intergranular, from the internal fitting surface, not associated to any welded region. The elbow was suffering vibration (pulsing loads) and the frequent cleaning with contaminated condensed steam could contribute for the failure.

C

Chemistry (% in weight)

Product Analysis

99.7Ni; 0.01Cu; 0.07C; 0.11Mn.

Associated Images
Transverse section of the fitting that suffered a longitudinal cracking. As polished. The wrought fitting has suffered intergranular stress corrosion cracking from the internal surface, exposed to hot caustic environment.
