Impact of a .308 Winchester on AR500 Plate

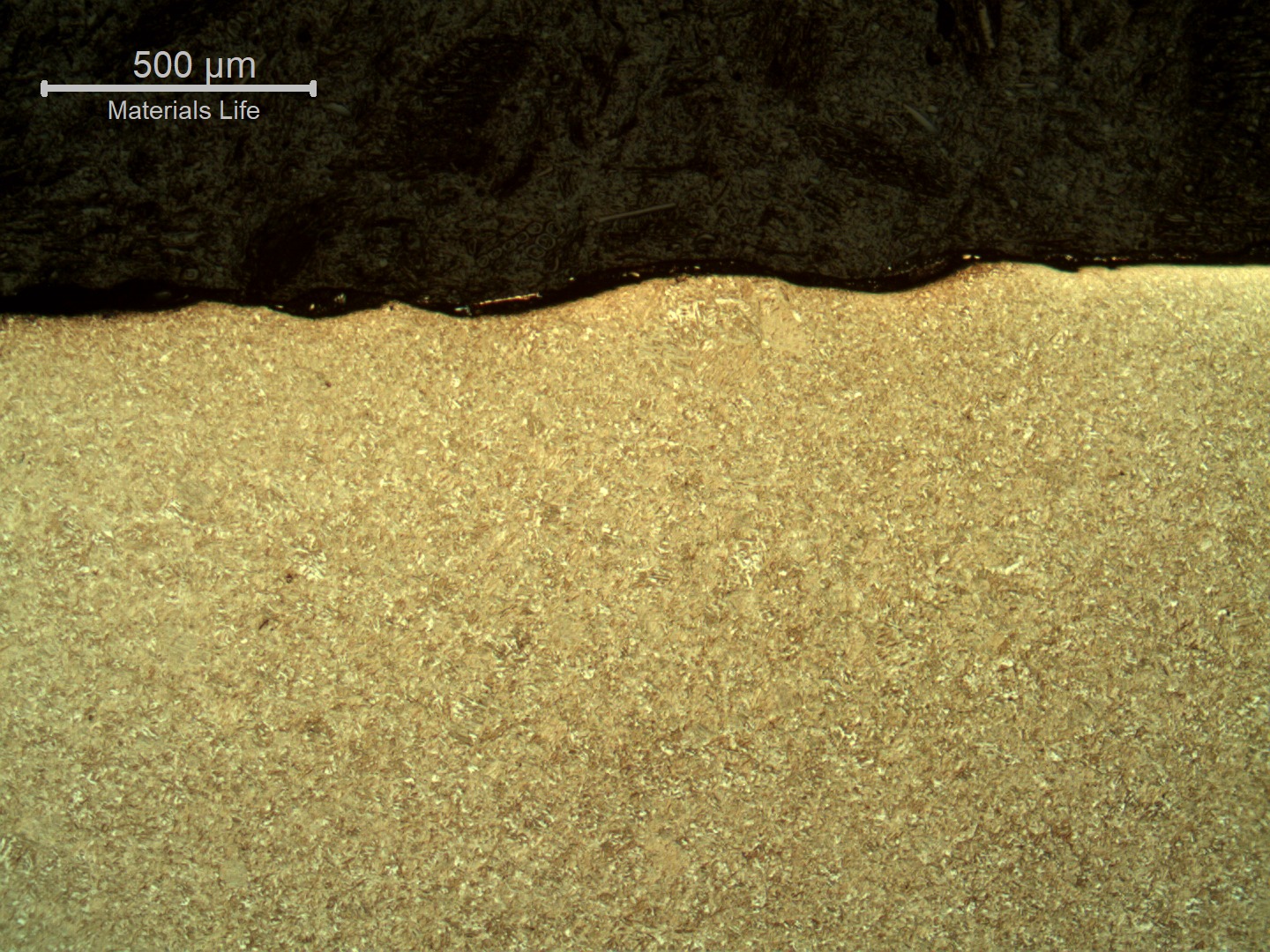

Micrography of the plate section, close to the surface that suffered the impact. Smooth waves but no evidences of damage.

27

15
of the section, close to the surface that suffered the impact. Smooth waves but no evidences of .
M

Material

Low Alloy Wear Resistant
  • ALLOY AR500
Ds

Description

The AR500 , a resistant , was shot with a .308 Winchester projectile (cooper alloy case filled with -antimony) using a Remington 700 gun, 100 meters far from the target. The bullet speed was 2749 ft/sec measured using a chronograph. The plate material was not macroscopically damaged at the bullet impact position and the did not show any transformation, thermal or mechanical; but there were (Cu) and lead (Pb) alloy films, melted on the surface of impact.

C

Chemistry (% in weight)

Plate Analysis

0.21C; 0.26Si; 1.12Mn; 0.011P; 0.004S; 0.34Cr; 0.03Ni; 0.01Mo; 0.01Cu.
