ML00179 - Feb.2022

Hydrides in Titanium Weld

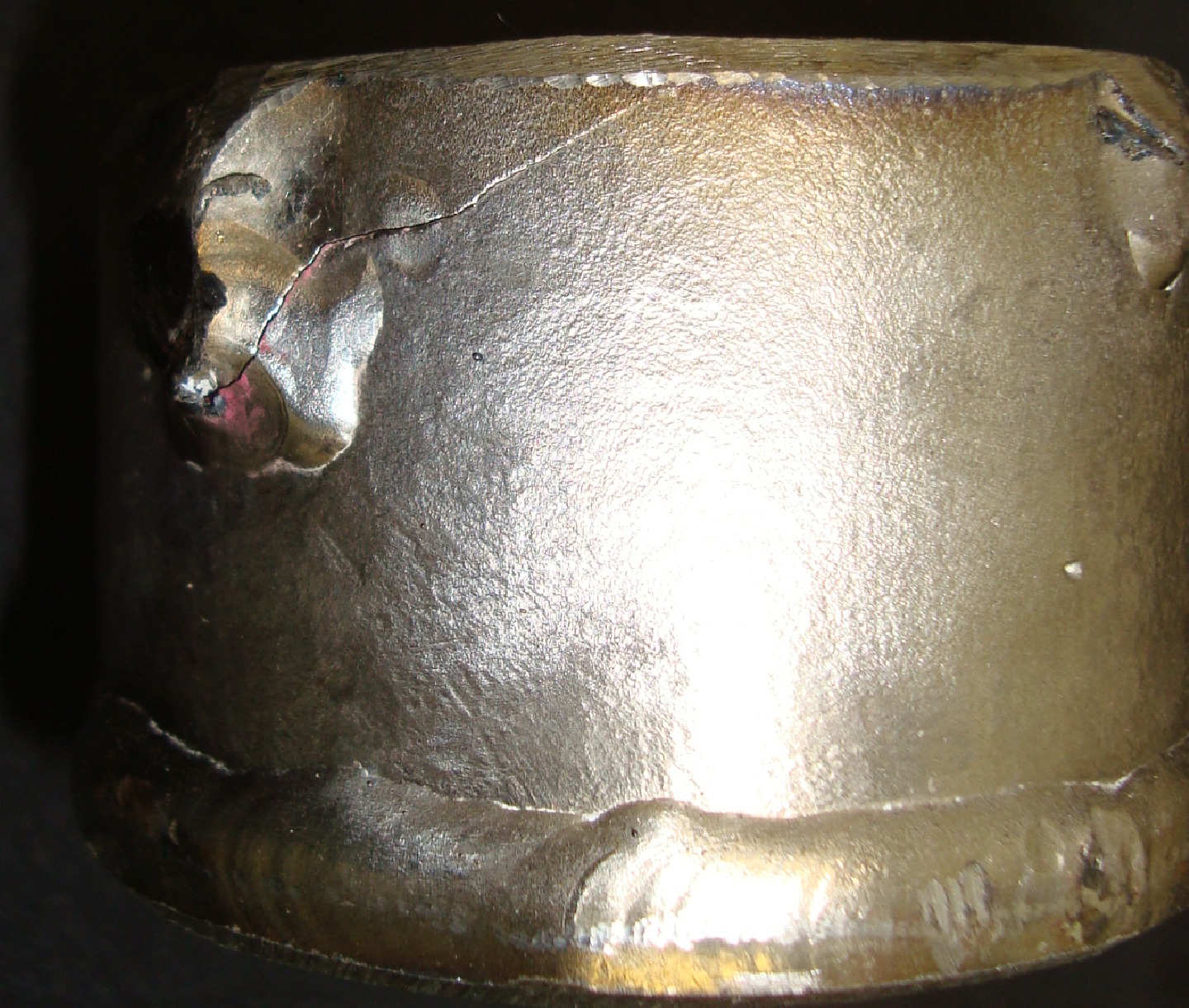

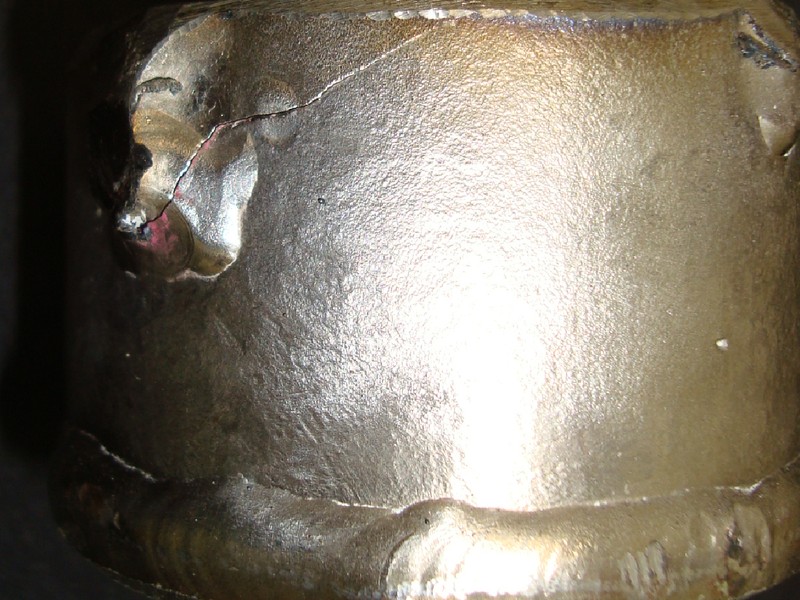

Detail of the end of the rib, with a crack in the fillet weld metal, propagating through the pipe wall.

7

40
Detail of the end of the rib, with a in the metal, propagating through the wall.
M

Material

Unalloyed Titanium
  • ASTM B 862 grade 2
Ds

Description

It was recommended to adopt a welded reinforced rib at the 2" of the drainage system from the 10" main line with the aim of reducing vibration, but the formation of a brittle full of hydrides at the weld, probably associated to lack of proper shielding during field , abbreviated the life and leaded to a (and ) after a very short time in service.

C

Chemistry (% in weight)

2" pipe semiquant

99.6Ti; 0.08V; 0.2Zr; 0.12Cr.

Associated Images
2" drain line from the main 10" line. The leakage occurred at the margin of the weld, a short time after the introduction of the reinforced ribs to reduce vibration.
641
VIEW
ML00179 / Feb.2022
Hydrides in Titanium Weld
M - Unalloyed TitaniumP - In Field WeldAp - Chemical IndustryCd - Hydride Formation
Cm - Field photoDf - General View
Detail of the through wall cracking that caused the leakage in the 2" pipe. The crack was originated in the fillet weld, from the end of the reinforced rib.
