High-Pressure Piston Seal in Casting Al Alloy

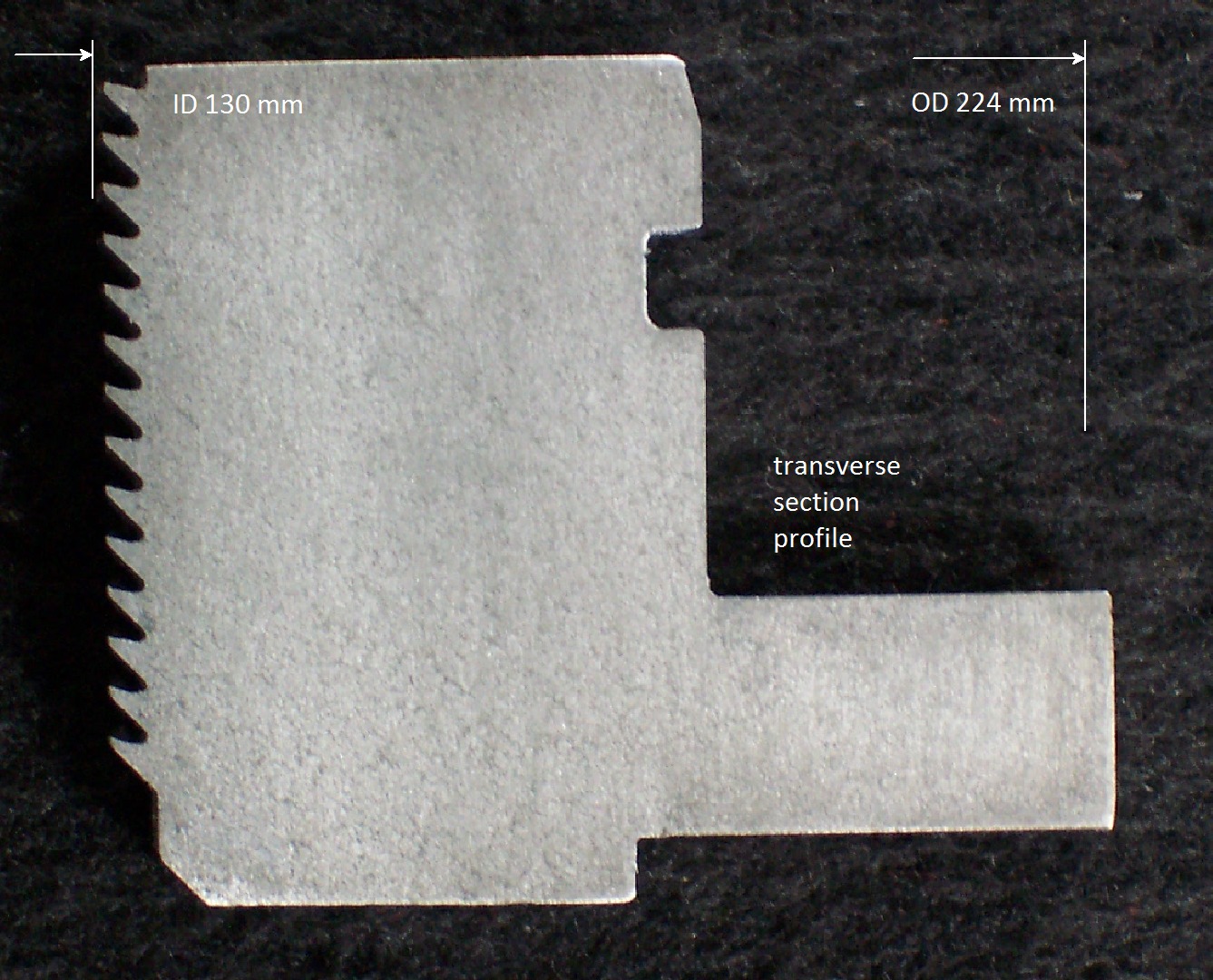

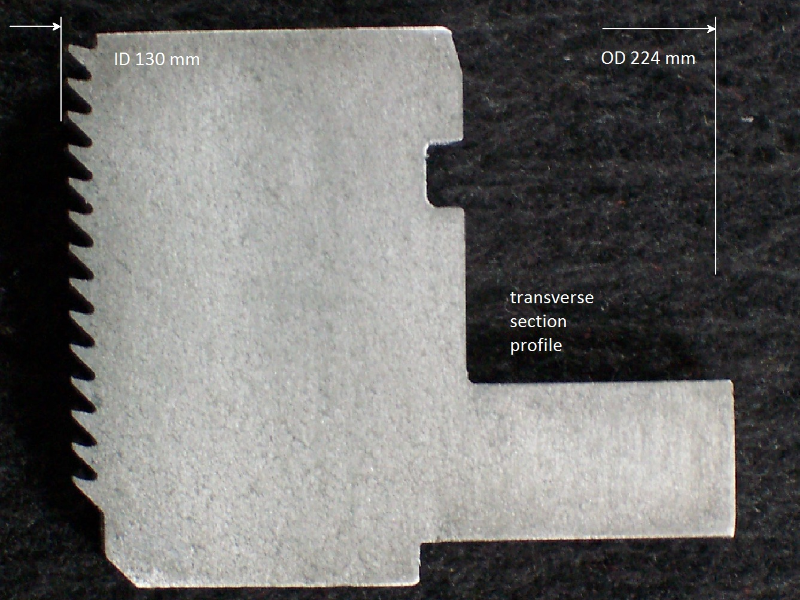

Macrography of a transverse section of the ring piston seal, shwing a thread in the internal diameter.

2

54
of a of the ring piston seal, shwing a thread in the internal diameter.
M

Material

Aluminum Tin
  • ASTM B 26 850.0
  • UNS A08500
Ds

Description

The high-pressure piston seal was and tested. It is a product of an -Sn-- alloy, usually applied for applications, presenting properties that are typical of a T5 (artificially aged).

C

Chemistry (% in weight)

Product Analysis

88.8Al; 7.89Sn; 1.01Cu; 1.24Ni; 0.70Fe; 0.08Ti; 0.17Si.

Associated Images
Micrography of the cast Aluminum alloy (AlSnCuNi) typically adopted for bearing applications.
