Forging Defect in a Cadmium Plated Nut

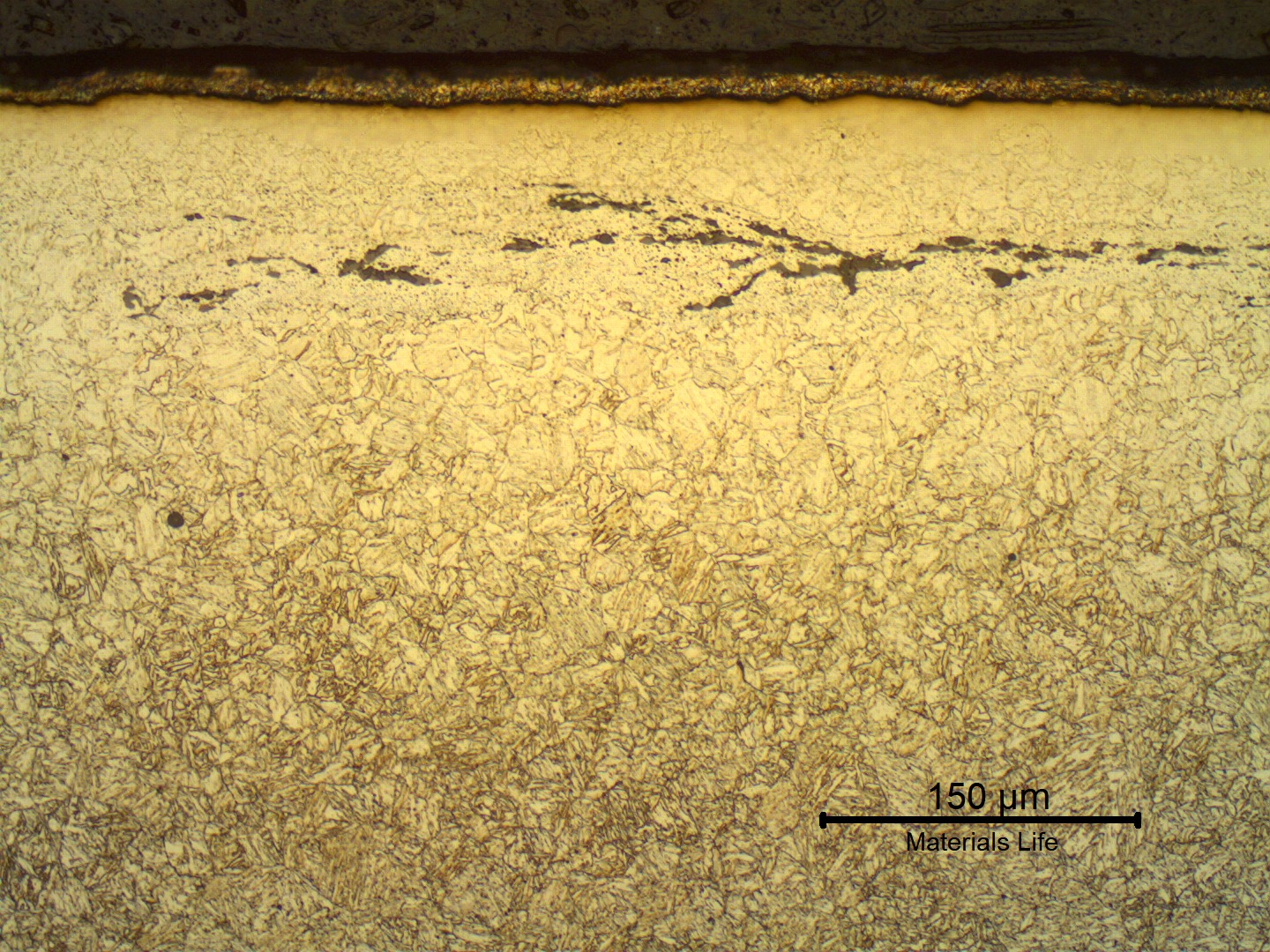

Ferritic-bainitic microstructure in the transverse section of the nut, at the surface where the cadmium plate is also evident. The nut surface presents a decarburized layer and the lap entrapped oxides.

8

30
-bainitic in the of the , where the cadmium is also evident. The surface presents a decarburized layer and the entrapped oxides.
M

Material

Medium Carbon Steel
  • ASTM A 194 2H
  • AISI 1045
Ds

Description

Several cadmium plated from a specific heat were rejected during receiving inspection due to the presence of visual indications. The metallurgical analysis of one defective nut showed that the indications are associated to decarburized zones, and the presence of Cd inside the defects confirm that they are created during the process.

C

Chemistry (% in weight)

Nut analysis

0.47C; 0.24Si; 0.60Mn; 0.016P; 0.014S; 0.09Cr; 0.02Ni; 0.01Mo.

Associated Images
Micrographic detail of the forging lap defect that appears at the nut surface like a crack, filled with oxides. The nut presented a martensitic structure in the center of the nut, but in the regions adjacent to the defect the structure is ferritic-bainitic due to decarburization. There are several globular oxides (grey spots) that became entrapped during the forging.
