Forging Defect in a Cadmium Plated Nut

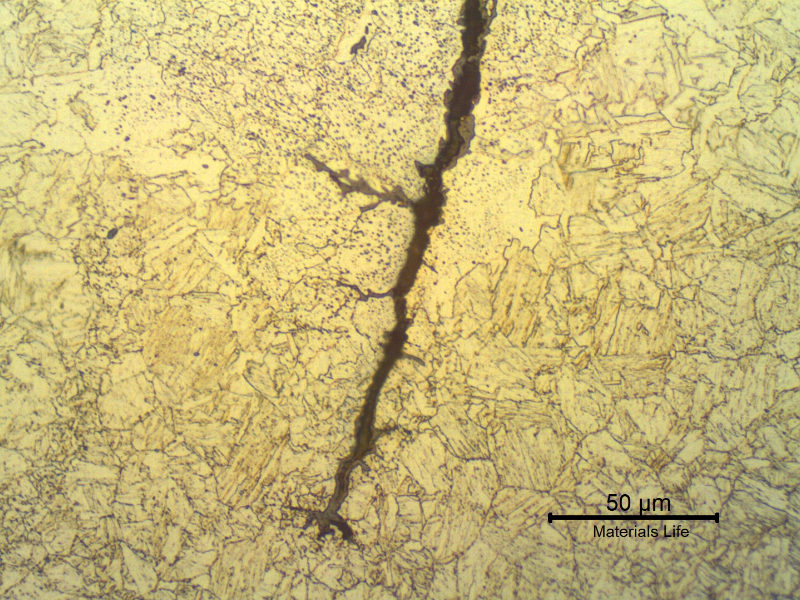

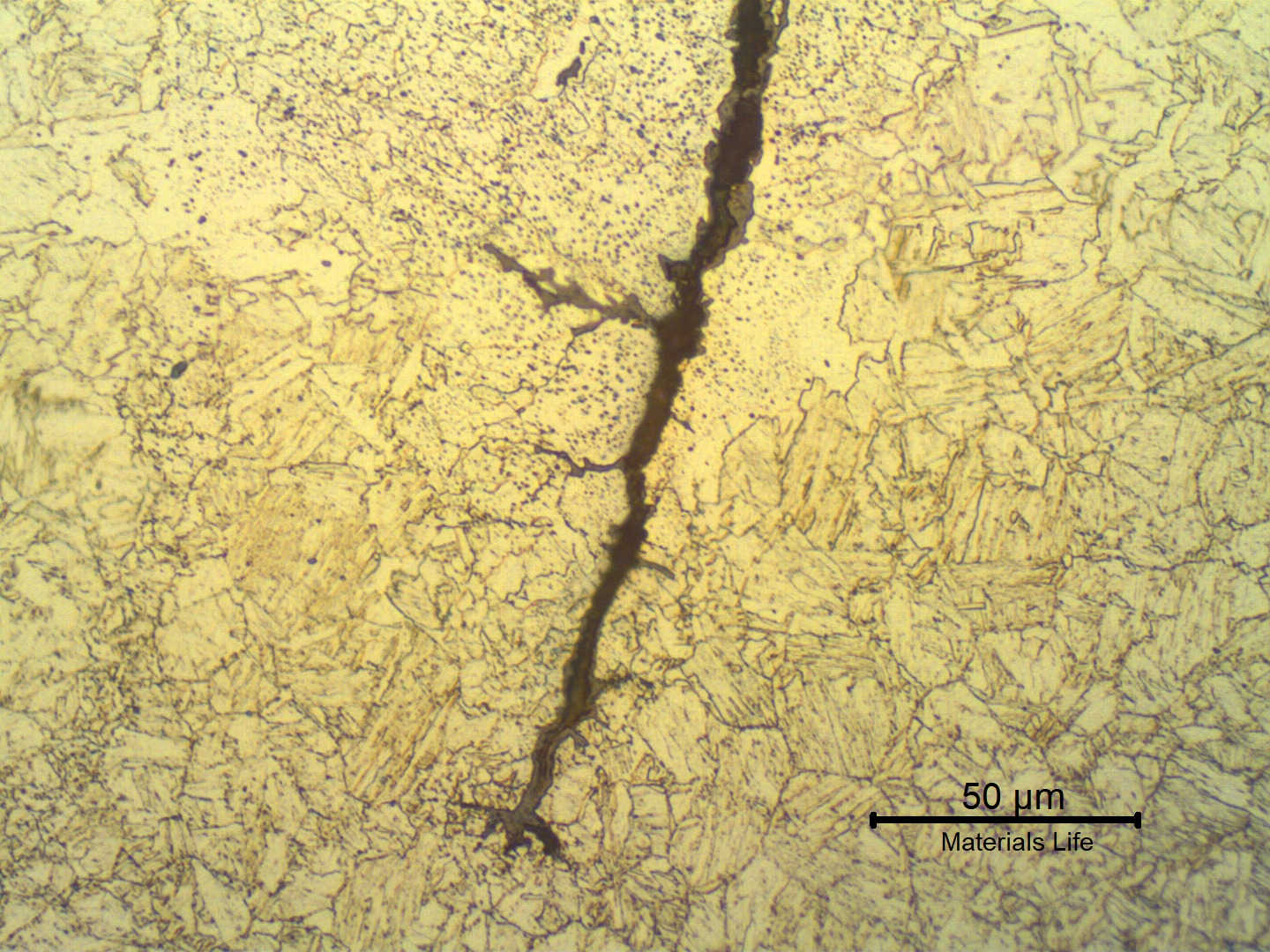

Micrographic detail of the forging lap defect that appears at the nut surface like a crack, filled with oxides. The nut presented a martensitic structure in the center of the nut, but in the regions adjacent to the defect the structure is ferritic-bainitic due to decarburization. There are several globular oxides (grey spots) that became entrapped during the forging.

1

654
Micrographic detail of the defect that appears at the surface like a , filled with oxides. The presented a martensitic in the center of the , but in the regions adjacent to the defect the is -bainitic due to . There are several globular oxides (grey spots) that became entrapped during the .
M

Material

Medium Carbon Steel
  • ASTM A 194 2H
  • AISI 1045
Ds

Description

Several cadmium plated from a specific heat were rejected during receiving inspection due to the presence of visual indications. The metallurgical analysis of one defective nut showed that the indications are associated to decarburized zones, and the presence of Cd inside the defects confirm that they are created during the process.

C

Chemistry (% in weight)

Nut analysis

0.47C; 0.24Si; 0.60Mn; 0.016P; 0.014S; 0.09Cr; 0.02Ni; 0.01Mo.

Associated Images
Micrographic detail of the forging lap defect that appears at the nut surface like a crack, filled with oxides. The nut presented a martensitic structure in the center of the nut, but in the regions adjacent to the defect the structure is ferritic-bainitic due to decarburization. There are several globular oxides (grey spots) that became entrapped during the forging.
654
VIEW
ML00099 / Jan.2018
Forging Defect in a Cadmium Plated Nut
M - Medium Carbon SteelP - NutAp - PipingCd - Fabrication Defect
Cm - Nital Etched Micrography by OMDf - Crack
Micrography of the nut in a section transverse to the surface indication. There are several microcracks (parallel and perpendicular to the nut surface) filled with oxides. The nut presented a martensitic microstructure in the center of the thickness and a ferritic-bainitic microstructure at surface and adjacent to the defect, due to decarburization occurred during high temperature forging.
