ML00047 - Mar.2017

Ductile Cast Iron Caps of Electrical Insulators

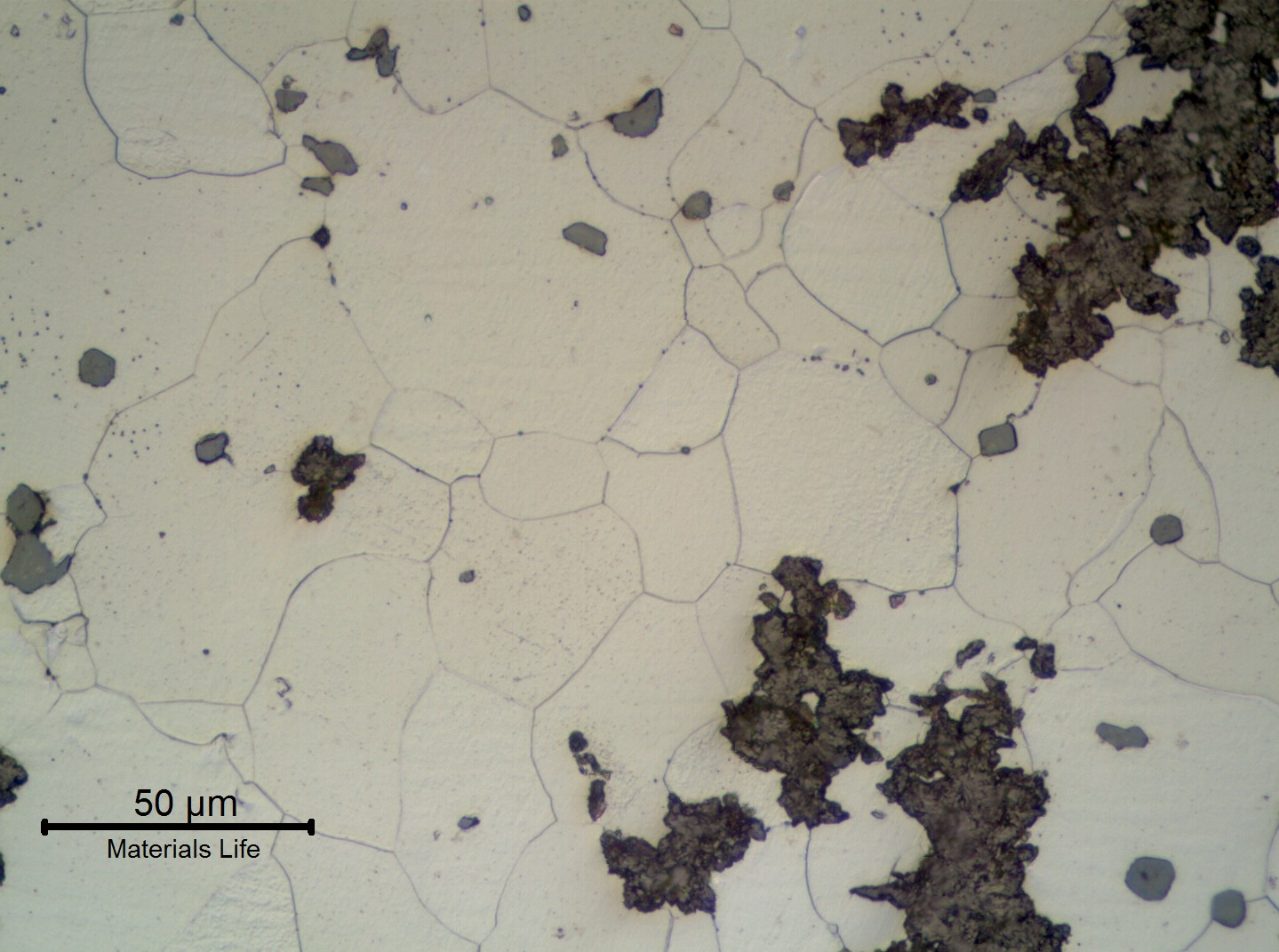

Detail of CAP A microstructure. Graphite in imperfect nodules and ferritic matrix. Grey sulphide inclusions.

2

88

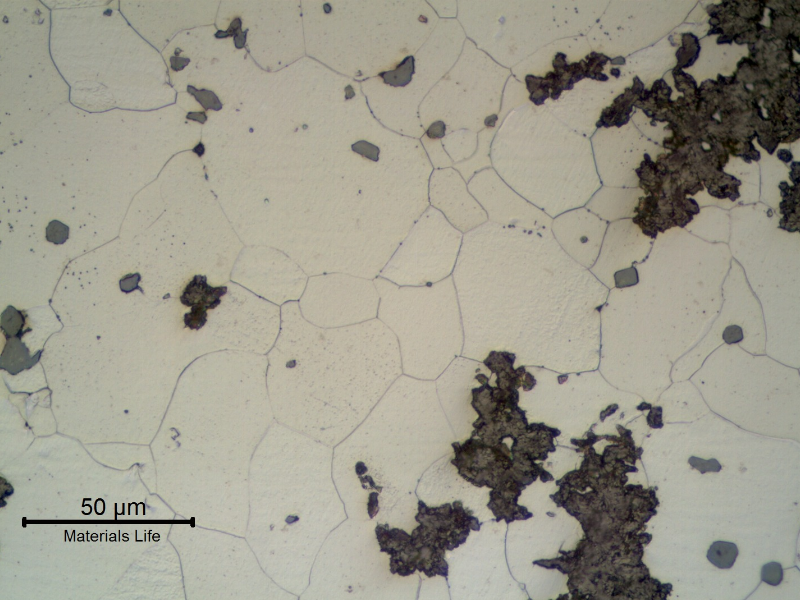

Detail of CAP A . Graphite in imperfect nodules and matrix. Grey sulphide inclusions.
M

Material

Ductile Cast Iron
  • ASTM A 536 60-40-18
Ds

Description

Three different caps of electrical insulators, manufactured by different suppliers to meet A536 grade 60-40-18, are presented and the results of chemistry, microstructural analysis and hardness may be compared.

C

Chemistry (% in weight)

Cap A Product Analysis

2.35C; 1.65Si; 0.51Mn; 0.042P; 0.011S.

Cap B Product Analysis

2.72C; 2.63Si; 0.16Mn; 0.023P; 0.011S.

Cap C Product Analysis

2.66C; 2.71Si; 0.22Mn; 0.034P; 0.008S.

Associated Images
Micrography of CAP A, showing graphite in imperfect nodules and ferritic matrix.
