ML00169 - Nov.2020

Drill Pipe Fracture in the Pipe Body

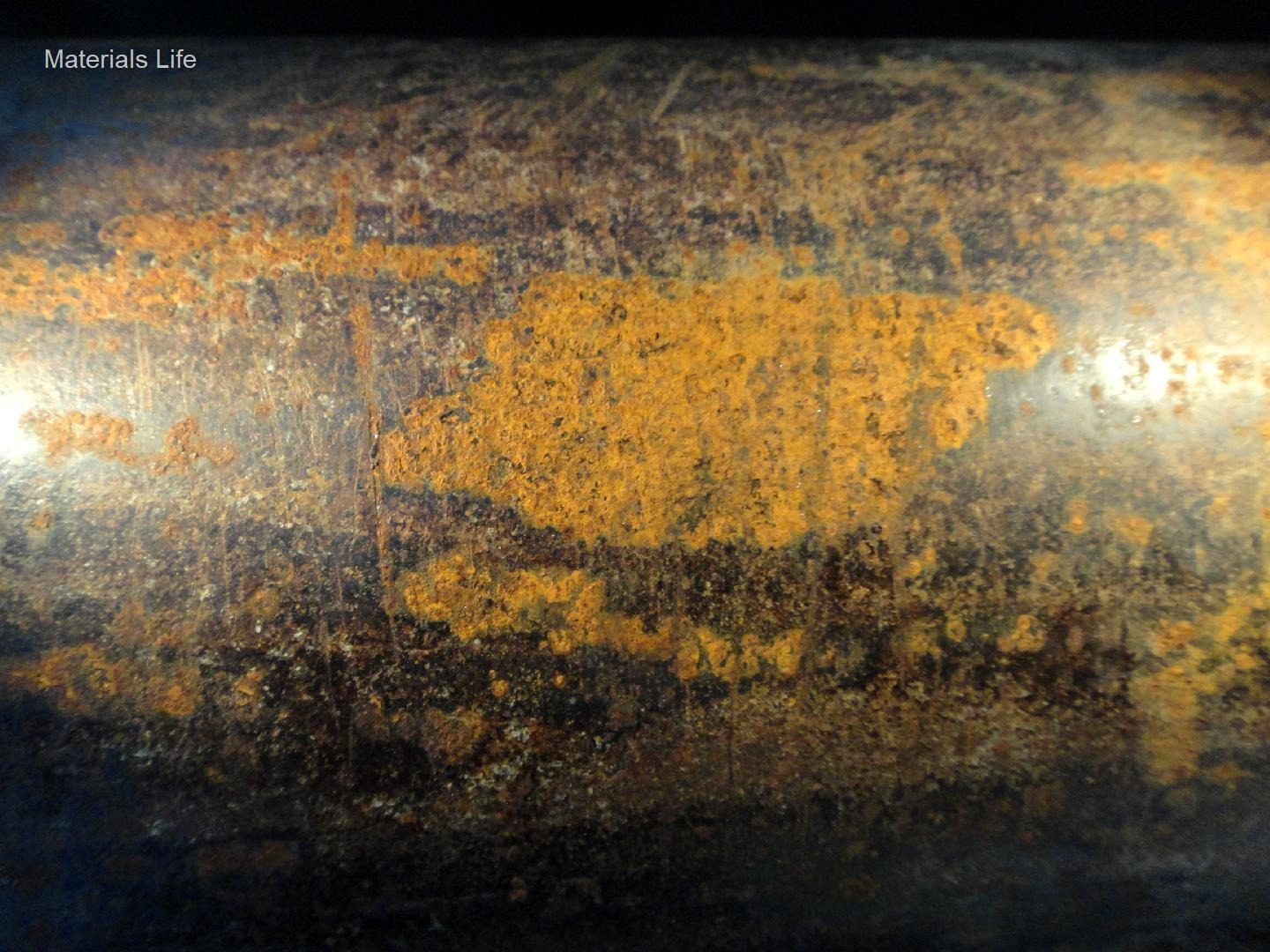

Pipe body surface, adjacent to the fracture, showing regions of corrosion and visual cracks transverse to the pipe axis.

9

28
body surface, adjacent to the , showing regions of and visual transverse to the axis.
M

Material

Low Alloy Medium Carbon QT
  • API 5D S135
Ds

Description

This has been in service for several years and the body presented regions of that created raisers for nucleation and growth, leading to a final rupture after propagation for more than 50% of the section. The metallographic examination of a longitudinal sample indicated the presence of propagating from localized corroded spots at the outside diameter. The internal detached only at the failed position.

C

Chemistry (% in weight)

Pipe Analysis

0.25C; 0.25Si; 0.50Mn; 0.026P; 0.005S; 1.01Cr; 0.05Ni; 0.77Mo; 0.02V.

Associated Images
Fracture position at the pipe body, about 1 meter from the tool joint end. The fracture presented two main aspects, a flat fracture transverse to the pipe axis, that propagated by fatigue through almost 50% of the pipe perimeter, and a final fracture by shear overloading.
