Cold cracks in Cr-Mo Welded Forging

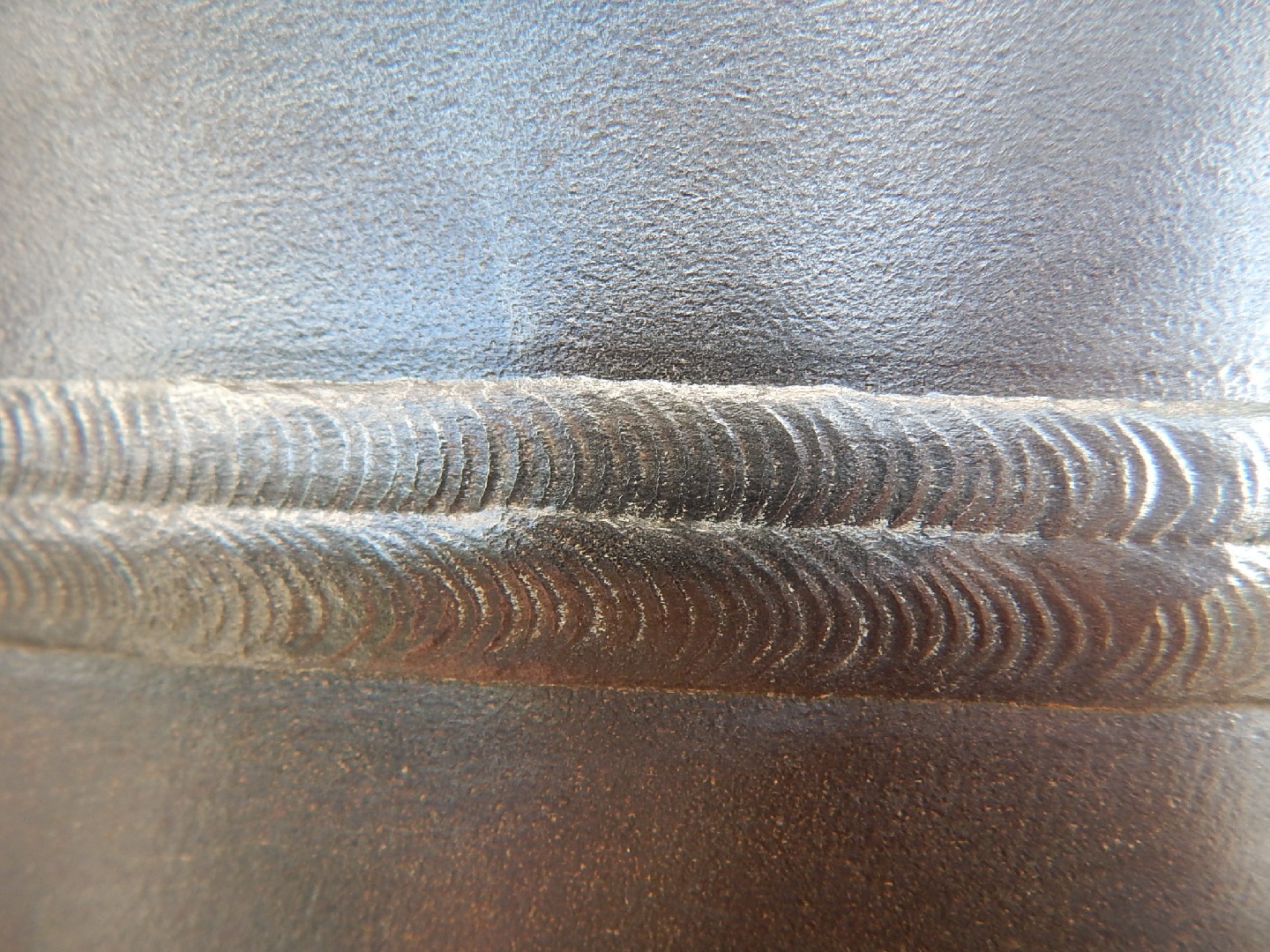

Circumferential weld aspect. Two passes in the cap. This forging to pipe welded joint, 22 mm thick, was welded by an automatic process in a narrow gap. The pipe is to the top of the image and the forging is to the bottom of the image.

2

165
Circumferential weld aspect. Two passes in the cap. This to , 22 mm thick, was welded by an automatic process in a narrow gap. The is to the top of the image and the is to the bottom of the image.
M

Material

CrMo Steel
  • ASTM A 182 grade F22
Ds

Description

The drilling riser connector presented a surface , 50 mm long and 1.2 mm deep, detected at the margin of the weld during routine inspection after 4 years in service. The location and intergranular morphology indicated that it is a that was formed after , before . Important to note that the minimum impact energy of all regions is 170J at -20°C and the crack DID NOT propagate, by or by localized , during service.

C

Chemistry (% in weight)

Forging

0.12C; 0.23Si; 0.51Mn; 0.026P; 0.011S; 2.64Cr; 0.01Ni; 1.18Mo; 0.01Cu.

Weld Metal

0.09C; 0.52Si; 0.90Mn; 0.025P; 0.011S; 1.28Cr; 0.01Ni; 0.66Mo; 0.24Cu.

Associated Images
The drilling connector, 21" diameter, presented a crack at the margin of the weld in the forging side (left side of the weld in the figure).
