ML00035 - Dec.2017

Carbon Steel L Shape

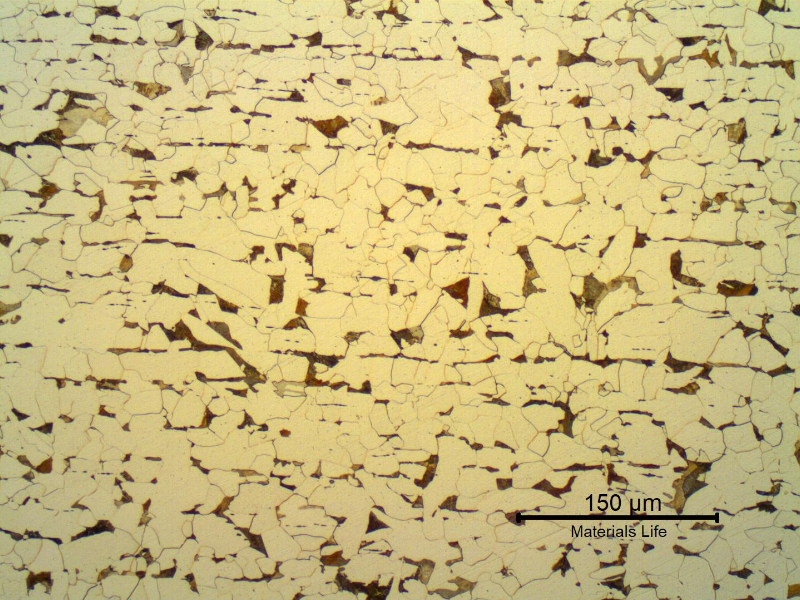

Micrography of the transverse section of the rolled shape presenting an aligned structure, ferritic-pearlitic. Transverse section.

2

97
of the of the rolled shape presenting an aligned , -. .
M

Material

Low Carbon Steel
  • ASTM A 36
Ds

Description

The L shape was removed from a structural part of a crane that was in operation for several years. The metallurgical characterization was required to classify the material and prepare a procedure for the . The meets and presented a typical - . Large sulfide inclusions were identified in the and the procedure for needs to be careful.

C

Chemistry (% in weight)

Product Analysis

0.11C; 0.19Si; 1.00Mn; 0.024P; 0.022S; 0.06Cr; 0.05Ni; 0.01Mo; 0.14Cu.

Associated Images

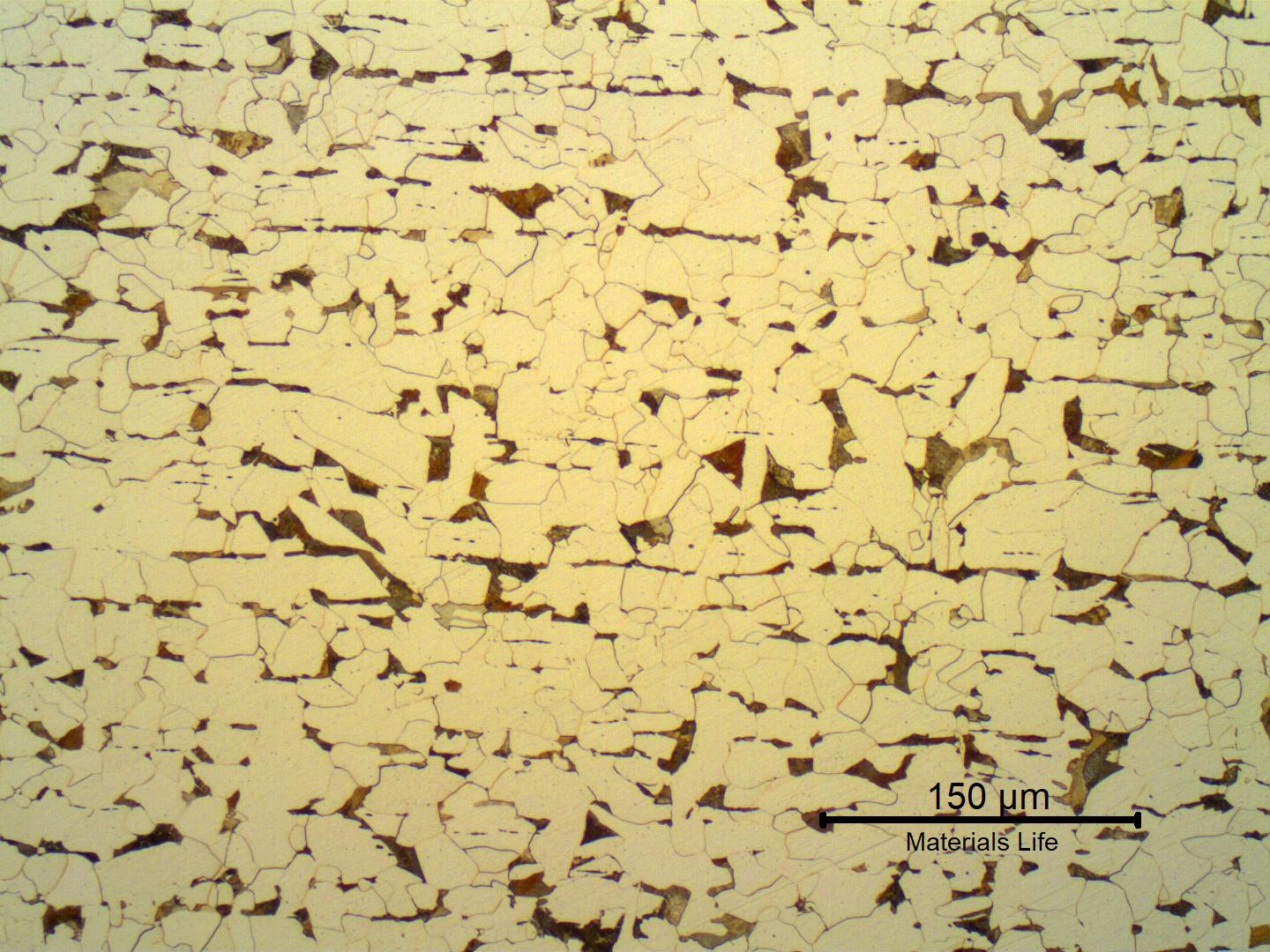

Micrographic detail of the ferritic-pearlitic structure of the angle L shape, equal legs, in the transverse section.
467
VIEW
ML00035 / Dec.2017
Carbon Steel L Shape
M - Low Carbon SteelP - Rolled ShapeAp - StructureCd - Removed From Service
Cm - Nital Etched Micrography by OMDf - Ferrite and Pearlite
Micrography of the transverse section of the rolled shape presenting an aligned structure, ferritic-pearlitic. Transverse section.
97
VIEW
ML00035 / Dec.2017
Carbon Steel L Shape
M - Low Carbon SteelP - Rolled ShapeAp - StructureCd - Removed From Service
Cm - Nital Etched Micrography by OMDf - In the Center of the Thickness
Micrography of the transverse section of the rolled shape presenting a ferritic-pearlitic microstructure. Transverse section, close to the surface.
80
VIEW
ML00035 / Dec.2017
Carbon Steel L Shape
M - Low Carbon SteelP - Rolled ShapeAp - StructureCd - Removed From Service
Cm - Nital Etched Micrography by OMDf - At the Surface
Micrography of the transverse section of the rolled shape presenting an aligned structure, ferritic-pearlitic.
62
VIEW
ML00035 / Dec.2017
Carbon Steel L Shape
M - Low Carbon SteelP - Rolled ShapeAp - StructureCd - Removed From Service
Cm - Nital Etched Micrography by OMDf - Transverse Section
Micrography of the transverse section of the rolled shape presenting an aligned structure, ferritic-pearlitic, and long sulfide inclusions. Center of the leg of 12 mm thickness.
58
VIEW
ML00035 / Dec.2017
Carbon Steel L Shape
M - Low Carbon SteelP - Rolled ShapeAp - StructureCd - Removed From Service
Cm - Nital Etched Micrography by OMDf - Non Metallic Inclusions
