Brittle Fracture of a Chilled Cast Iron Camshaft

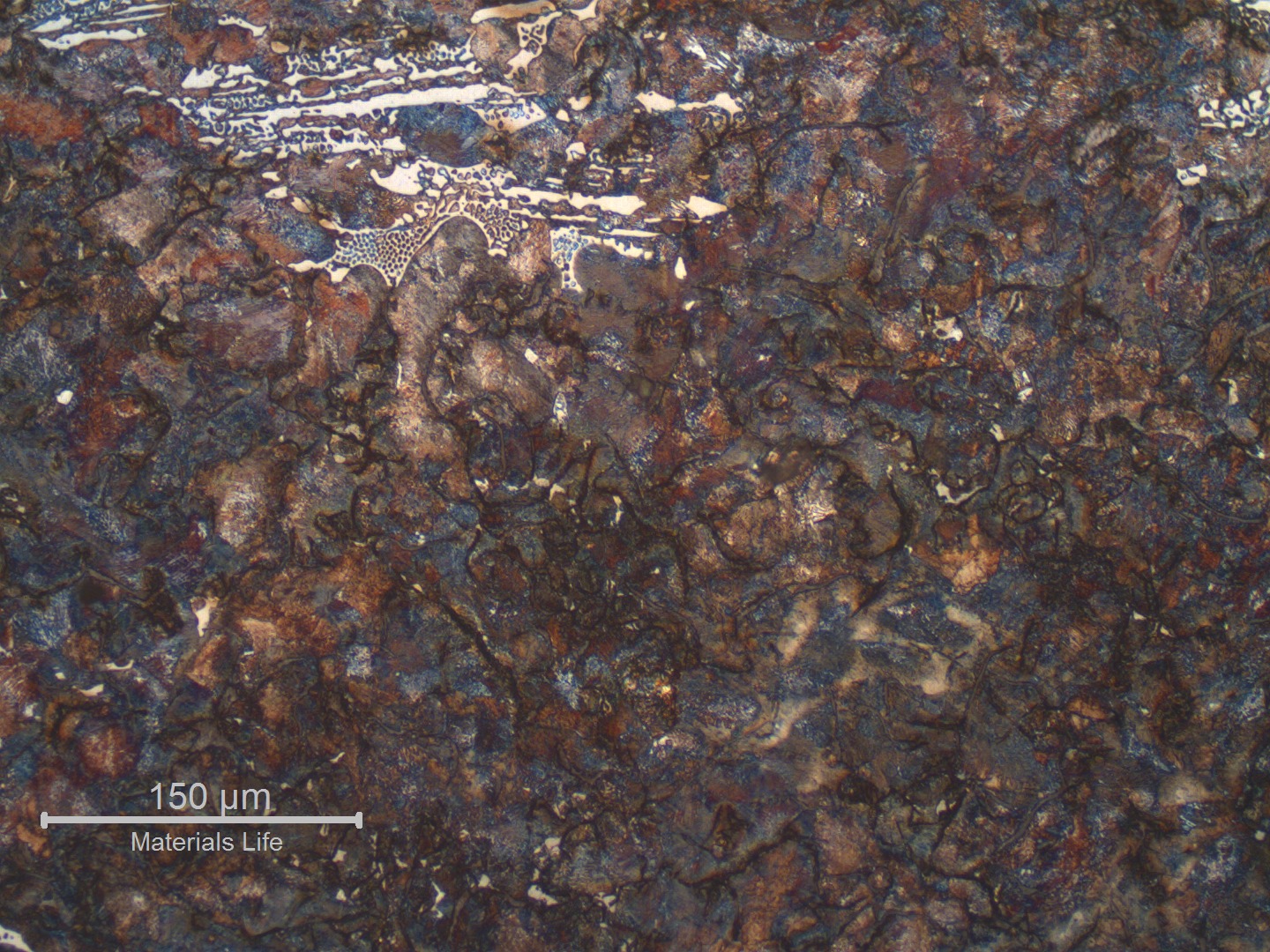

In the center of the shaft thickness the structure is perlitic with graphite in flakes, but there are also islands of ledeburite.

5

62
In the center of the thickness the is perlitic with graphite in flakes, but there are also islands of ledeburite.
M

Material

Chilled Cast Iron
  • ALLOY Non Specified
Ds

Description

The camshaft broke in a brittle way after a short time in operation. The chilled (ledeburitic) extended to the center of the thickness in some lobes. In a region of a raiser (geometric) the presence of a large amount of lebeburite created a condition for .

C

Chemistry (% in weight)

Shaft Analysis

3.85C; 1.64Si; 0.65Mn; 0.016P; 0.022S; 0.11Cr; 0.07Ni; 0.07Mo; 0.05Cu; 0.003V.

Associated Images
The camshaft broke in a brittle way in a region where the shaft changed the geometry, close to a chilled lobe.
