Thermal Fatigue of a Boiler Tube

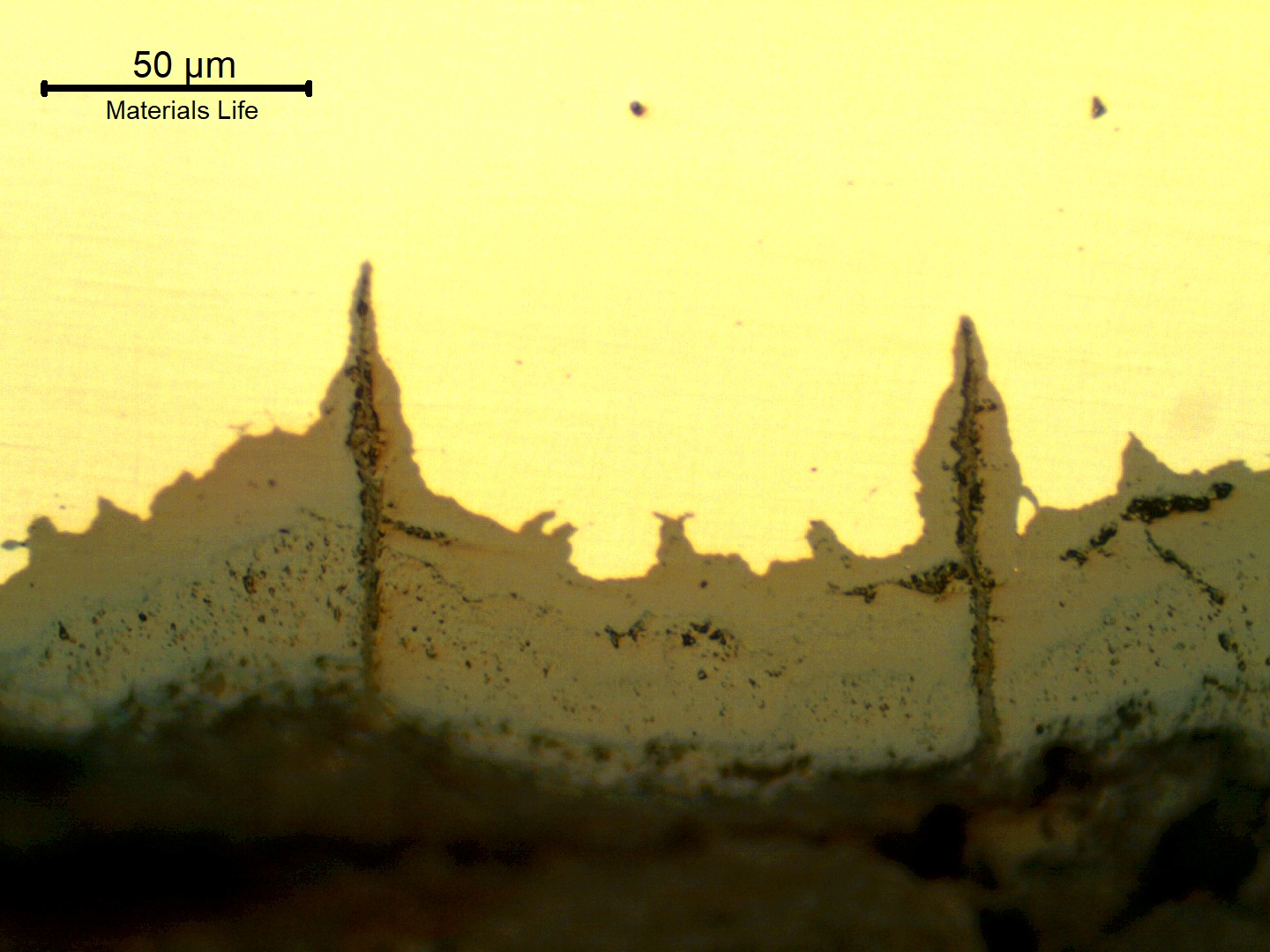

Micrographic details of the longitudinal section of the tube, close to ID, showing paralel cracks, filled with oxides, perpendicular to the surface.

12

99
Micrographic details of the of the , close to ID, showing paralel , filled with oxides, perpendicular to the surface.
M

Material

Low Carbon Steel
  • ASTM A 178 grade C
Ds

Description

Several water wall of a were leaking after 10 years in operation. The is associated to formed due to cyclically overheated regions in part of the tube. The localized tube overheating, that promoted coalescing in the but did not reduce the hardness level, is very localized under deposit at the . The actuated as an insulator avoidind uniform heat exchanging. The failure is also assisted by .

C

Chemistry (% in weight)

Tube analysis

0.12C; 0.20Si; 0.47Mn; 0.019P; 0.010S; 0.11Cr; 0.01Ni; 0.03Mo.

Associated Images
The micrography of the longitudinal section of the tube, close to OD, shows the paralel cracks, filled with oxides, perpendicular to the surface.
1441
VIEW
ML00104 / Dec.2017
Thermal Fatigue of a Boiler Tube
M - Low Carbon SteelP - Autogenously Welded TubeAp - BoilerCd - Thermal Fatigue
Cm - As polished micrographyDf - Close to the External Surface
The micrography of the longitudinal section of the tube, close to ID, shows the paralel cracks, filled with oxides, perpendicular to the surface.
229
VIEW
ML00104 / Dec.2017
Thermal Fatigue of a Boiler Tube
M - Low Carbon SteelP - Autogenously Welded TubeAp - BoilerCd - Thermal Fatigue
Cm - As polished micrographyDf - Close to the Internal Surface
The water wall tube, external diameter 60.3mm and thickness 3.9 mm, shows circunferential cracks in the middle of the section. Several other tubes have failed after 10 years in service.
