ML00110 - Jan.2018

Non Conformance in Spray and Fuse Pin

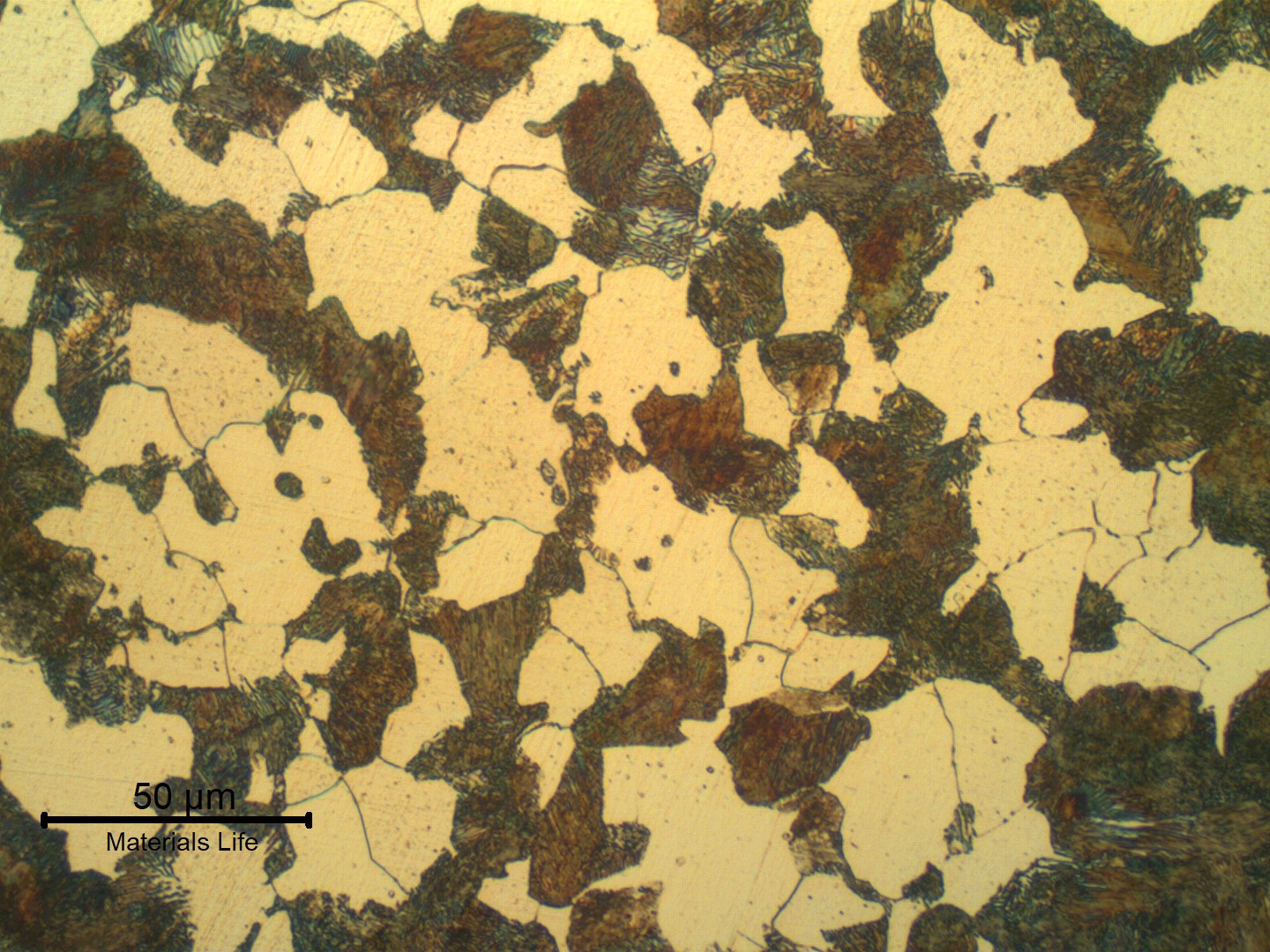

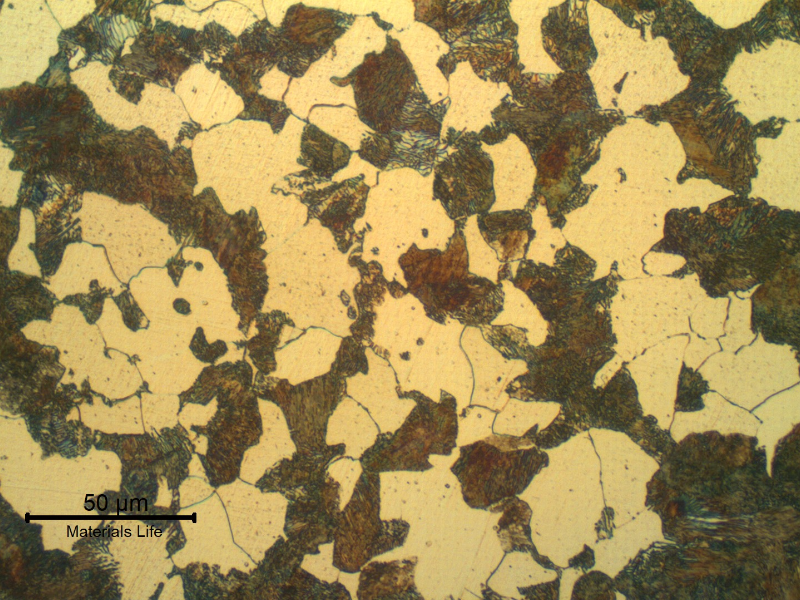

Micrographic detail of the ferritic-pearlitic structure in the center of the thickness of the tubular forging pin. Transverse section. The fuse is conducted in high temperature and the pin was not heat treated after the thermal spray deposition and fuse.

9

21
Micrographic detail of the - of the tubular . . The fuse is conducted in and the was not heat treated after the deposition and fuse.
M

Material

Low Alloy Medium Carbon QT
  • AISI 4130
  • UNS G41300
  • Commercial Name Colmonoy 5
Ds

Description

A and fuse layer was applied to the sealing surface of the to assure resistance as well as resistance, but the pin body was not heat treated after the fuse of the layer, and during hydrostactic tests to qualify the pin it was fully cracked. The low strenght, low toughness, - was not able to support the pressure. The body should be after the process.

C

Chemistry (% in weight)

Pin analysis

0.28C; 0.22Si; 0.55Mn; 0.007P; 0.008S; 0.92Cr; 0.04Ni; 0.21Mo; 0.02Cu.

Associated Images
Longitudinal cracks in the surface of the pin, detected by dye check, after high pressure hydrostatic test.
