ML00092 - Sep.2017

MIC of a Valve Body

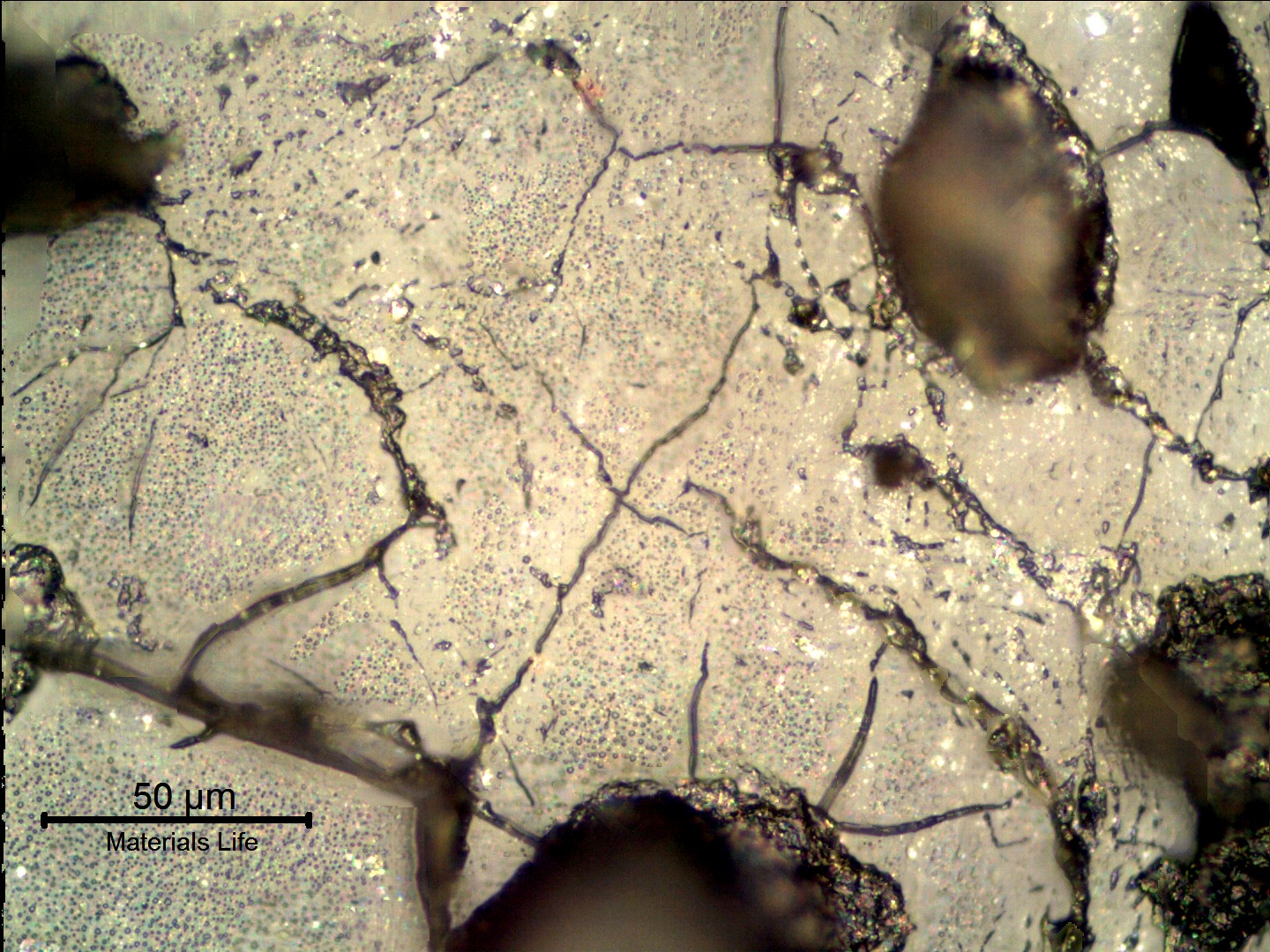

The as polished micrographic aspect of the corroded surface shows pitting and several microcracks, probably associated to the biological attack and material embrittlement. Replication technique.

1

924
The micrographic aspect of the corroded surface shows and several , probably associated to the biological attack and material embrittlement. .
M

Material

Martensitic Stainless Steel
  • AISI 410
Ds

Description

The inner side of a body in a Xtmas Tree equipment was temporarily exposed to completion and production fluids and remained with a small amount of stagnated fluid, leading to . The aggressive attack of the in a very short time suggests a biological effect (), with and by . This analysis was non destructive (PMI chemistry and metallographic ).

C

Chemistry (% in weight)

PMI equipment

0.47Si; 0.59Mn; 11.6Cr; 0.04Ni; 0.00Mo; 0.13Cu; 0.15W.
