ML00135 - May.2018

MIC of a Non Magnetic Drilling Tool

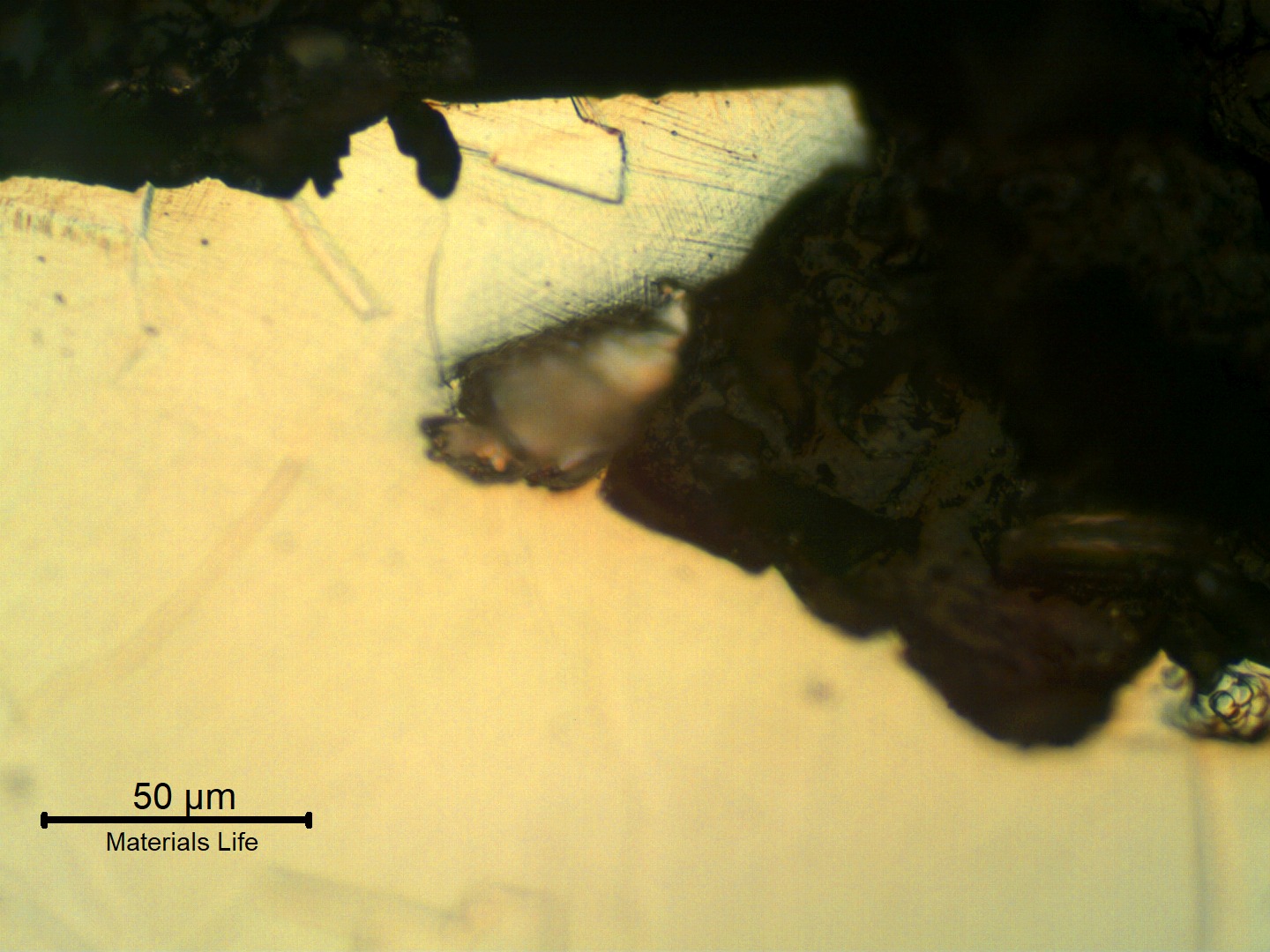

Micrographic detail of the damaged region close to the external surface, presenting a shallow localized dissolution/corrosion.

15

48
Micrographic detail of the damaged region close to the , presenting a shallow localized dissolution/.
M

Material

High Mn Austenitic Steel
  • ALLOY P550
Ds

Description

After drilling operation, several non-magnetic tools remained uncleaned in a drilling rig for a period a little longer than one month. When the parts arrived in the Yard and the tools were cleaned, the inspection team detected deep pits associated to biological deposits, for both external and of the collars. It is important to mention that these tools are fully austenitic, non magnetic, manufactured in 20Mn/20Cr , and no was expected in this short time.

C

Chemistry (% in weight)

Product analysis

0.06C; 0.20Si; 20.7Mn; 0.024P; 0.005S; 19.5Cr; 1.8Ni; 0.5Mo; 0.01Ti; 0.04Nb; 0.05Cu; 0.14W; 0.12V.
