MIC in Aluminum Brass Tubes

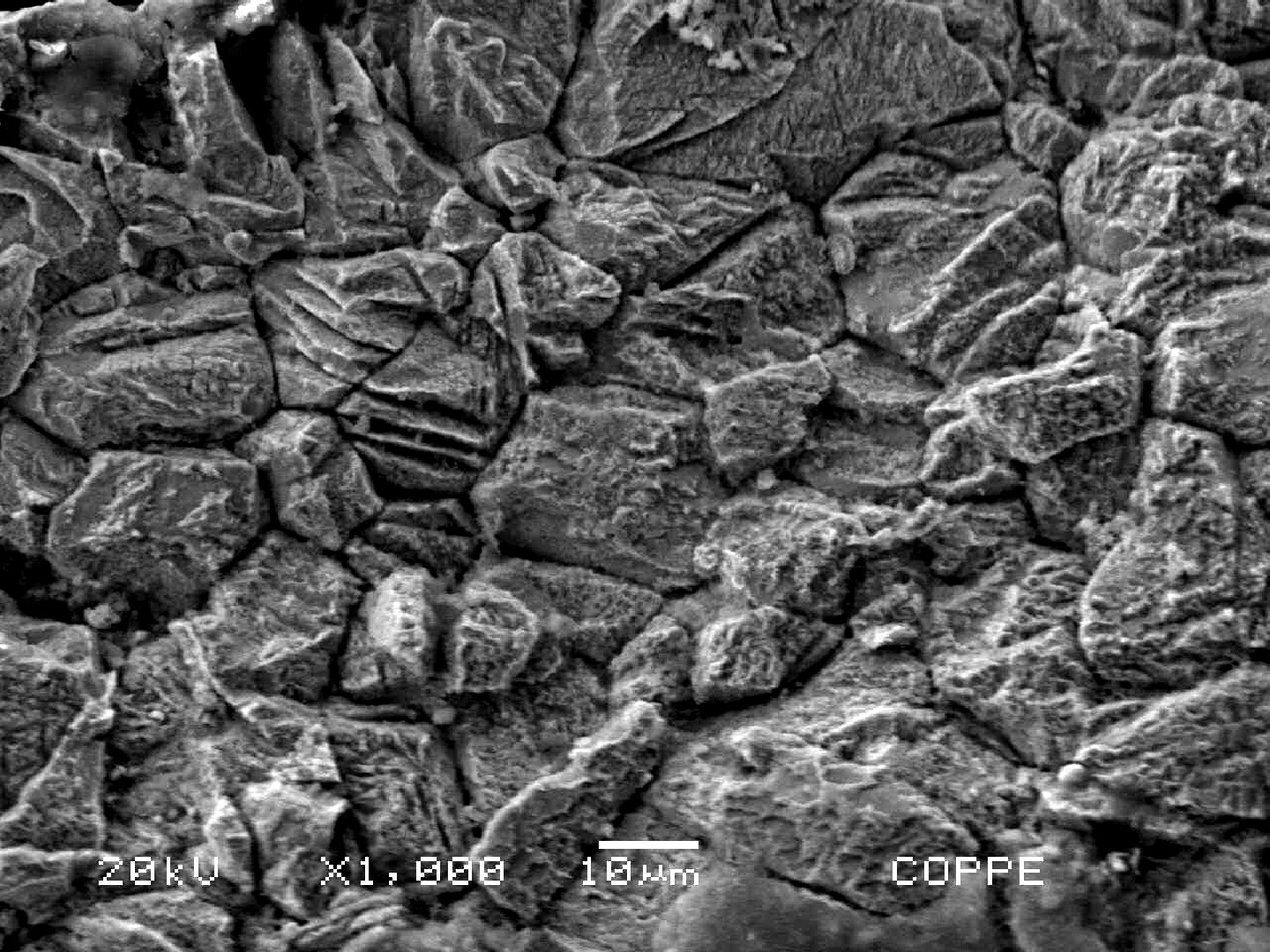

Scanning electron microscopy aspect of the region inside of a pit. The aspect is of a chemical attack, generated by the metabolic by-products of the adhered microorganism. The effect is of a localized dissolution and the granular tube microsctruture is revealed.

10

40
aspect of the region inside of a pit. The aspect is of a chemical attack, generated by the metabolic by-products of the adhered microorganism. The effect is of a localized dissolution and the microsctruture is revealed.
M

Material

Aluminum Brass
  • UNS C68700
Ds

Description

Several that were operating during 6 years in a marine (seawater in the tube and steam in the shell) had suffered from the internal side of the tubes. The mechanism is a localized dissolution with caused by (MIC).

C

Chemistry (% in weight)

Tube analysis

75.6Cu; 21.5Zn; 0.01Fe; 0.034Sn; 2.2Al; 0.005As.
