Liquid Metal Embrittlement of a HSLA Steel

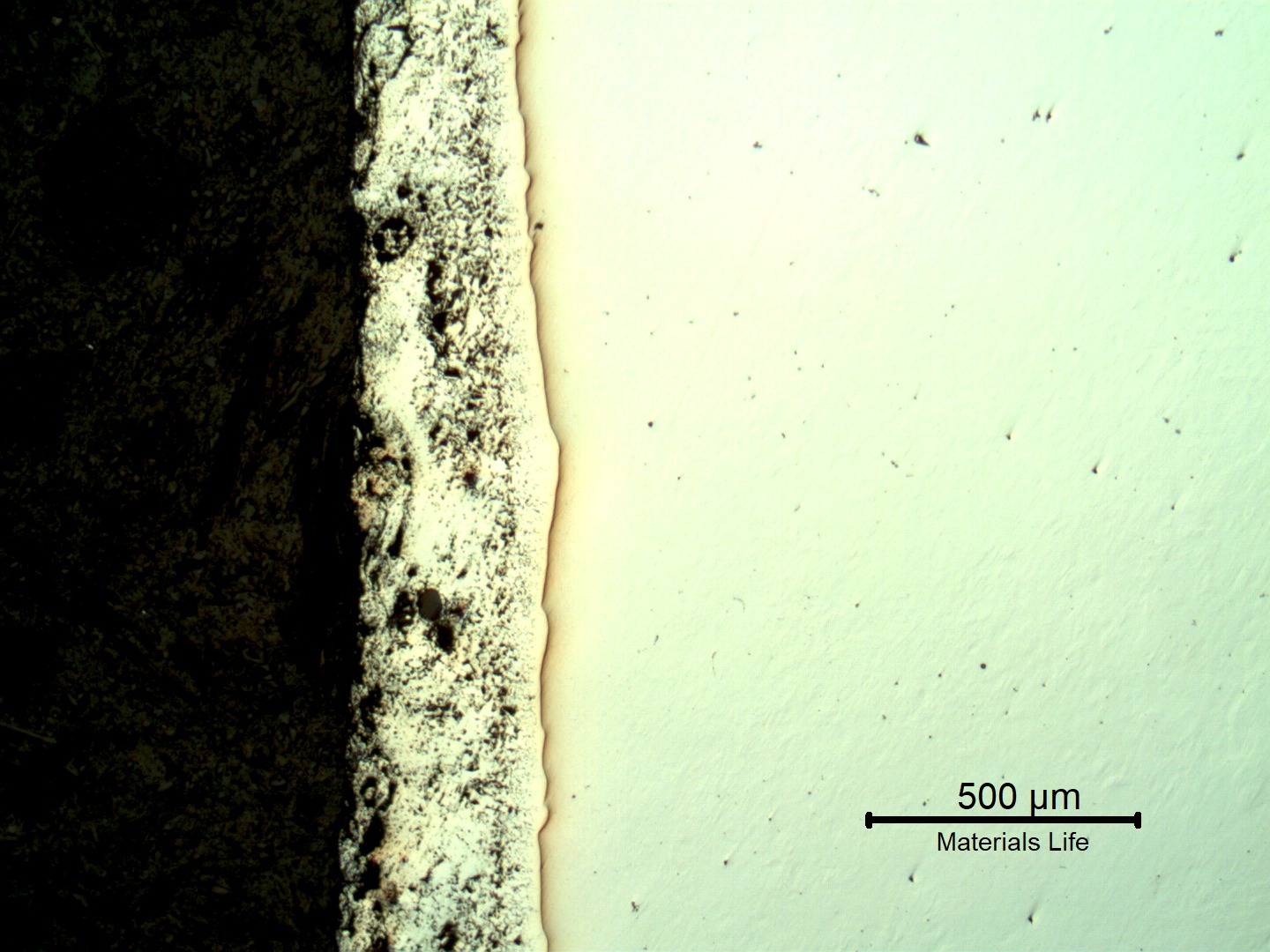

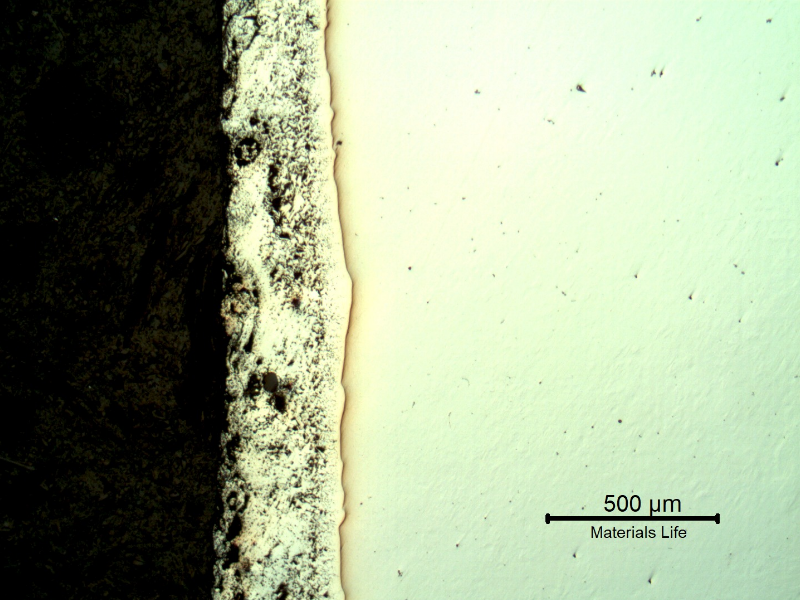

Micrography of the casting at the surface, presenting a zinc layer deposited in a hot dip process. The thickness of the layer is about 0.3mm in this position, that is higher than expected for this process. The steel substrate is not revealed because the etch was light and the zinc layer protects the low aloy steel during the etch.

5

93
of the , presenting a zinc layer deposited in a hot dip process. The thickness of the layer is about 0.3mm in this position, that is higher than expected for this process. The substrate is not revealed because the etch was light and the zinc layer protects the low aloy during the etch.
M

Material

High Strength Low Alloy
  • ASTM A 217 grade WC4
Ds

Description

The of this lifting device was galvanized as the final step of fabrication and suffered liquid metal embrittlement (LME), with deep zinc penetrations through the previous grain boundaries, as well as internal that were not detected during inspection. This fabrication problem reduced the material capacity to sustain load, favoring a of the material during testing, although the mechanical properties were fine.

C

Chemistry (% in weight)

Product Analysis

0.21C; 0.44Si; 1.00Mn; 0.015P; 0.011S; 0.71Cr; 0.76Ni; 0.44Mo; 0.06Cu; 0.028V.
