ML00106 - Dec.2017

Inconel 718 Submarine Bolt

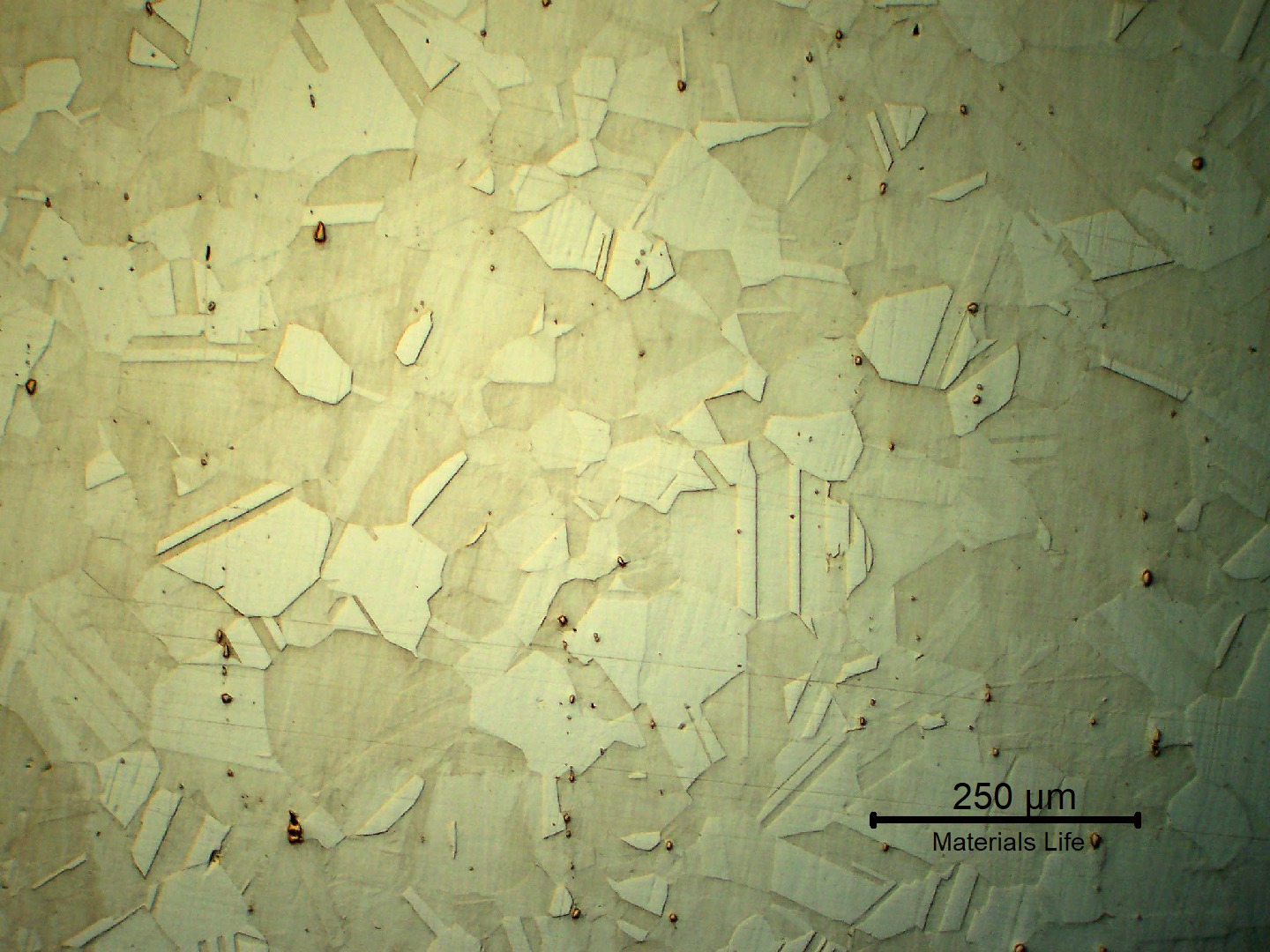

Micrography of a longitudinal section in the center of the bolt. Granular austenitic microstructure, equiaxial, primary precipitates (isolated), precipitation hardened (not detectable by metalography, only because of the hardness level)

2

63
of a in the center of the . austenitic , equiaxial, primary precipitates (isolated), (not detectable by metalography, only because of the hardness level)
M

Material

NiCrFe Alloy
  • UNS N07718
  • ASTM B 637
  • API 6A 718
Ds

Description

This was tested and approved to qualify the lot. The is free from , essential to be adopted in submarine conditions.

C

Chemistry (% in weight)

Bolt Analysis

54.1Ni; 17.8Cr; 0.02Cu; 18.1Fe; 0.13Co; 2.81Mo; 0.07W; 5.19Nb; 1.00Ti; 0.52Al; 0.03C; 0.07Mn; 0.05Si; 0.006B; 0.006S; 0.005P.

Associated Images

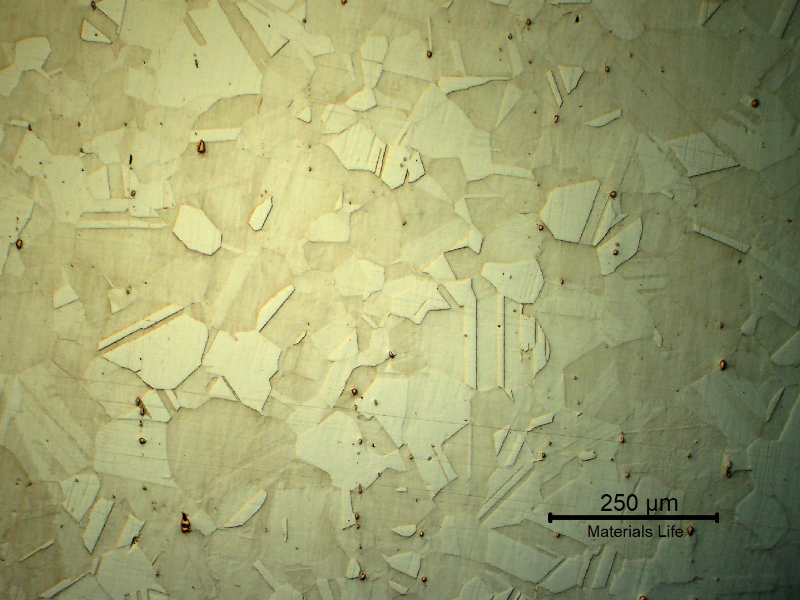

Micrographic detail of a longitudinal section in the center of the bolt. Granular austenitic microstructure, equiaxial, primary precipitates (isolated), precipitation hardened (not detectable by metalography, only because of the hardness level)
