Inconel 718 Allen Bolt for Subsea Application

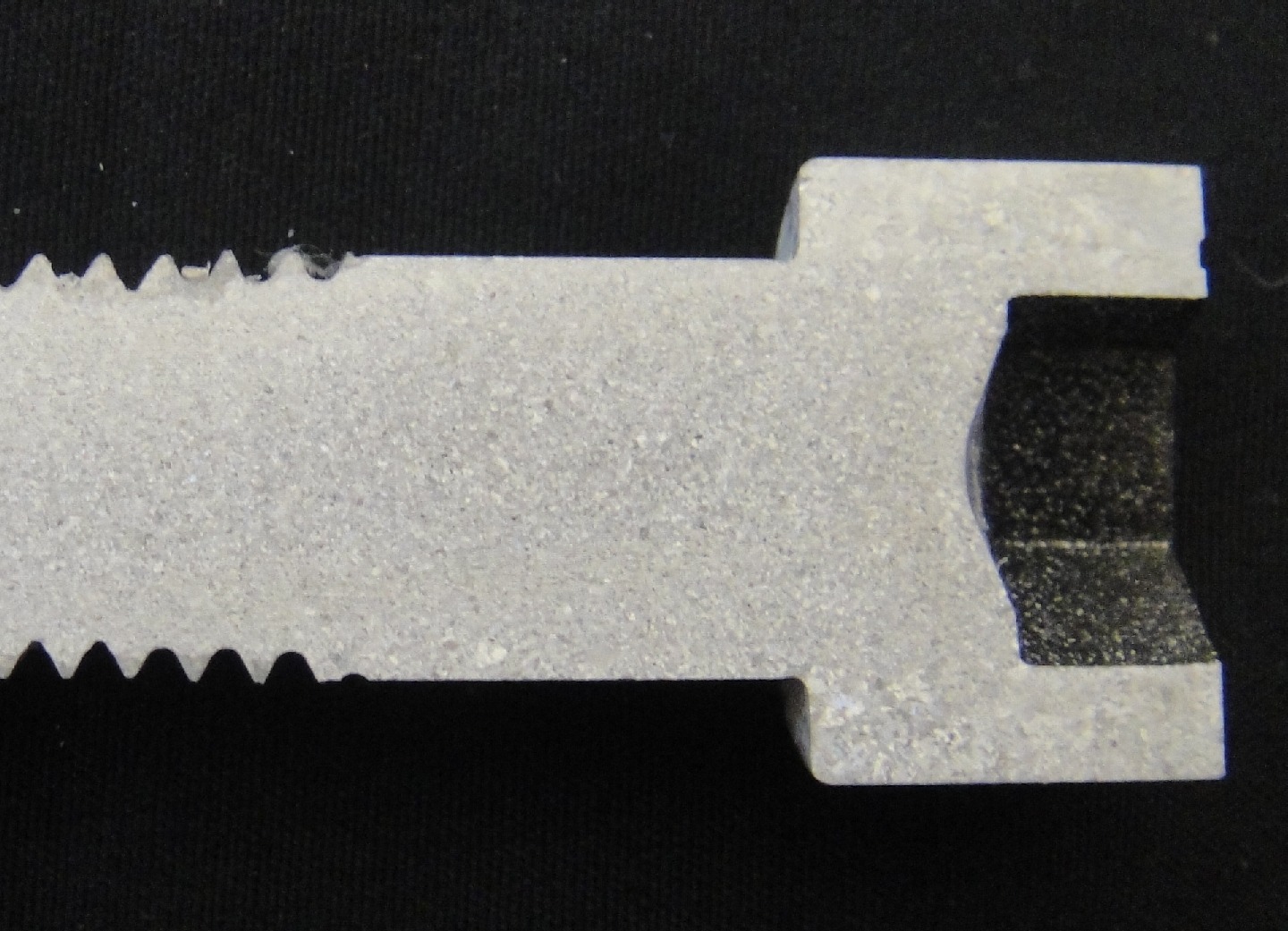

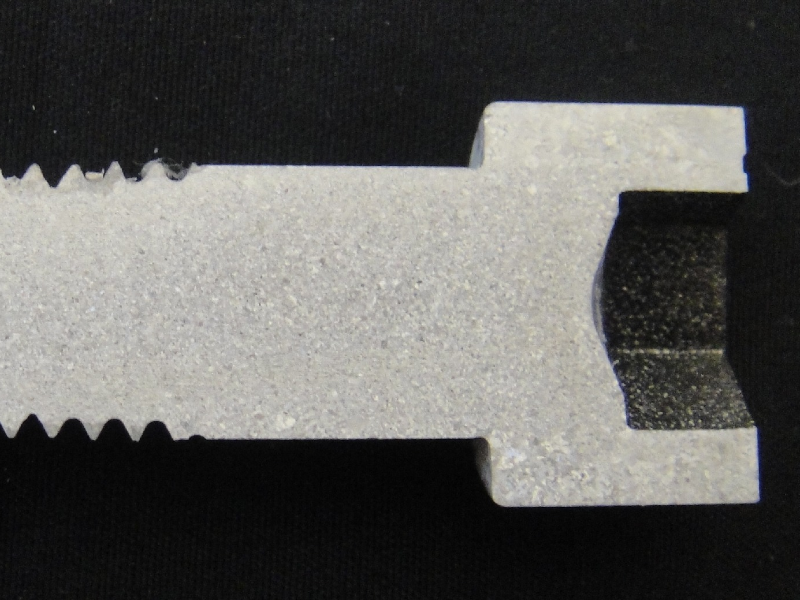

The macrography shows the longitudinal section of the allen bolt, 1/2" nominal diameter, that was machined from a heat treated bar (solution annealed and aged). The granular structure presents differences in the grain sizes. At the bolt head (external surface of the original bar) the austenitic grain size is larger than in the center of the bar where the particles in segregated bands "arrested" the grains during hot forming and solution annealing.

2

58
The shows the of the allen , 1/2" , that was machined from a heat treated (solution annealed and aged). The presents differences in the grain sizes. At the head ( of the original ) the austenitic grain size is larger than in the center of the where the particles in segregated bands "arrested" the grains during and .
M

Material

NiCrFe Alloy
  • UNS N07718
  • ASTM B 637
Ds

Description

The was machined from a solution annealed and aged and presented different austenitic grain sizes, between the center and the surface. It was qualified to be adopted in a condition.

C

Chemistry (% in weight)

Bolt analysis

50.6Ni; 20.79Cr; 18.17Fe; 2.85Mo; 0.06C; 0.27Mn; 0.23Si; 0.008S; 0.006P.

Associated Images
Micrographic detail of the austenitic structure at the surface, where the grain size of the material increased. By optical microscopy the intragranular precipitation due to solution annealing and aging is not revealed.
794
VIEW
ML00089 / Sep.2017
Inconel 718 Allen Bolt for Subsea Application
M - NiCrFe AlloyP - Machined PartAp - SubseaCd - Typical manufacturing
Cm - Kalling Etched Micrography by OMDf - Austenite
The macrography shows the longitudinal section of the allen bolt, 1/2" nominal diameter, that was machined from a heat treated bar (solution annealed and aged). The granular structure presents differences in the grain sizes. At the bolt head (external surface of the original bar) the austenitic grain size is larger than in the center of the bar where the particles in segregated bands "arrested" the grains during hot forming and solution annealing.
58
VIEW
ML00089 / Sep.2017
Inconel 718 Allen Bolt for Subsea Application
M - NiCrFe AlloyP - Machined PartAp - SubseaCd - Typical manufacturing
Cm - Kalling Etched MacroDf - Machined Thread
The micrography of a longitudinal section of the bolt close to the surface, at the thread, shows that it was machined from a bar, not rolled.
