ML00139 - Jun.2018

Hydrogen Fracture of a 17-4 PH Allen Bolt

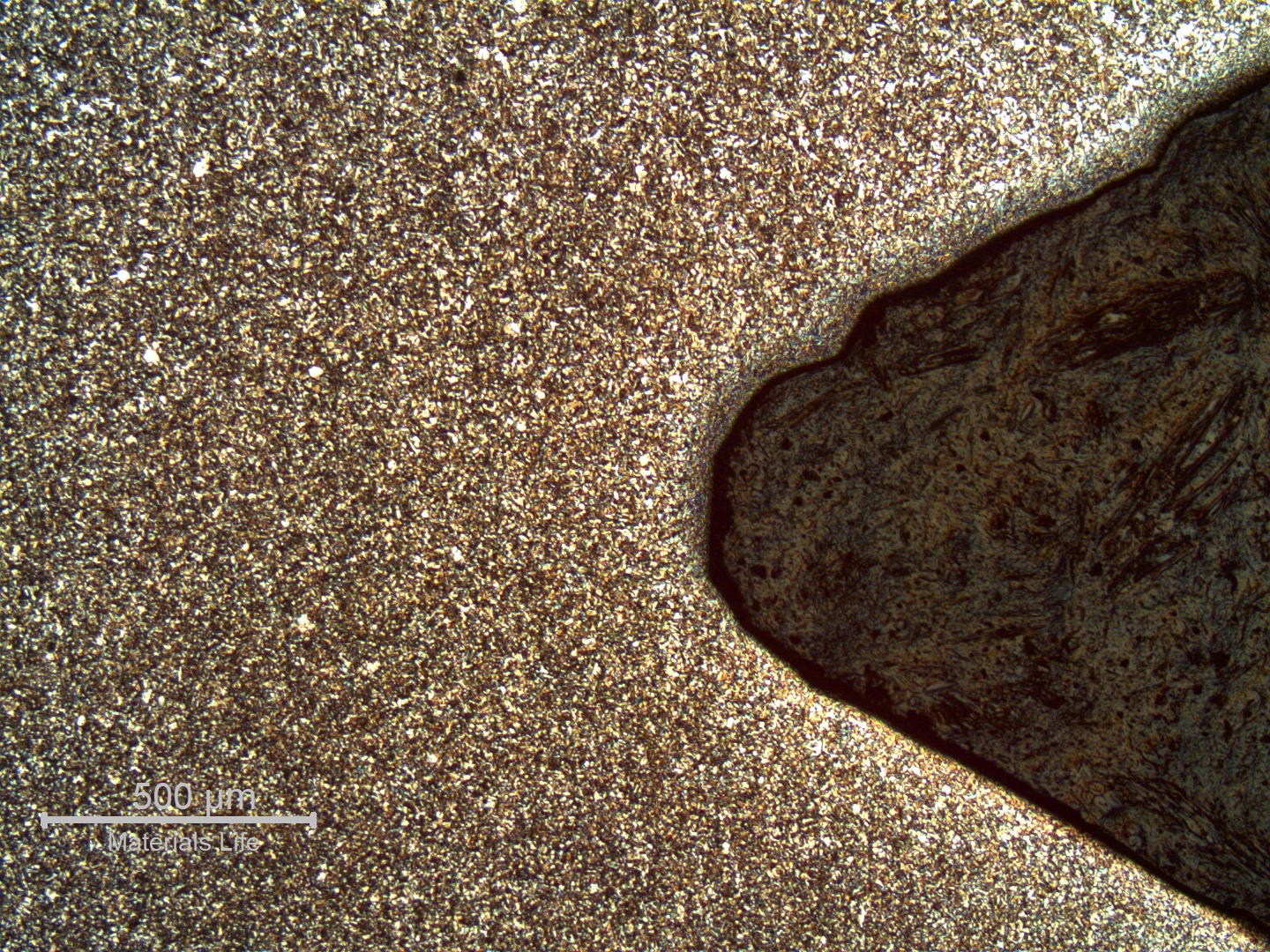

Micrography of a longitudinal section of the 5/8" bolt, at the bottom of the thread, presenting a refined structure compared to the center of the bolt and a mark at the thread flank that was probably created during tightening of the bolt.

5

95
of a of the 5/8" , at the bottom of the thread, presenting a refined compared to the center of the and a mark at the thread flank that was probably created during tightening of the .
M

Material

Precipitation Hardened Stainless Steel
  • ASTM F 593 group 7 Alloy 630 AH
  • UNS S17400
Ds

Description

The allen were connecting an instrument to a drilling and broke in a brittle way after a short time in service. The presented intergranular micromechanism close to the surface, at the bolt head to body transition; and transgranular propagation. The metallurgical analysis of a non broken bolt operating in the same assembling indicated that there were already intergranular in the same head to body bolt transition. This high strenght 17-4PH is not resistant.

C

Chemistry (% in weight)

Bolt analysis

0.034C; 0.34Si; 0.80Mn; 0.028P; 0.022S; 15.5Cr; 4.3Ni; 0.004Mo; 0.31Nb; 3.14Cu.

Associated Images
General aspect of the 5/8" allen bolt that was found fractured in an instrument connected to a subsea BOP. The fracture presented a brittle aspect and occurred at the bolt head to threaded body transition.
