Hydrogen Cracks of Cadmium Plated Studs

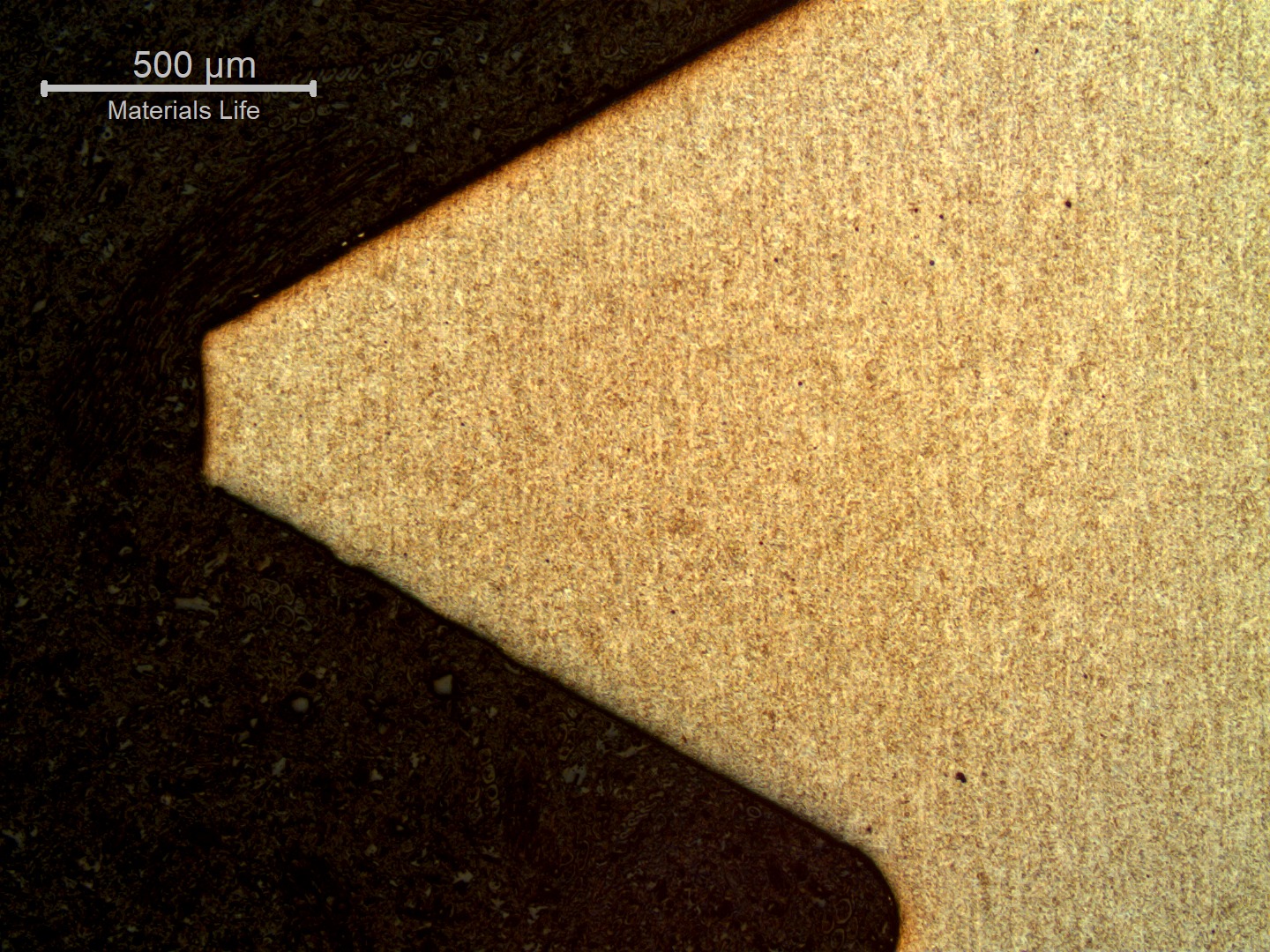

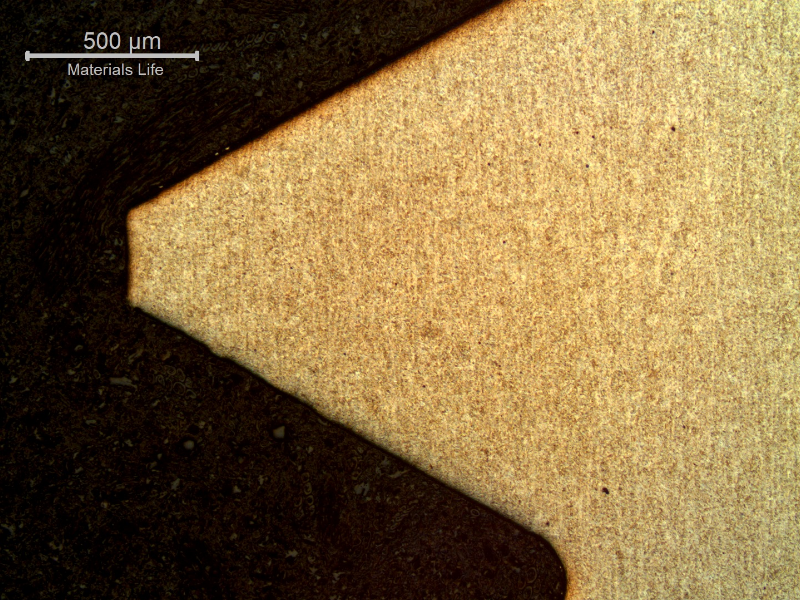

Low magnification micrographic image of the stud thread, in the longitudinal section, showing the segregation lines of the steel cut at the thread indicating it was machined.

9

30
Low magnification micrographic image of the stud thread, in the , showing the segregation lines of the cut at the thread indicating it was machined.
M

Material

Low Alloy Medium Carbon QT
  • ASME B18.3
  • AISI 4140
  • UNS G41400
Ds

Description

During assembling of external parts in gate , several allen studs have fractured in a brittle way. The studs were specified as 18.3, 39HRc-45HRc, cadmium plated, chromate treated. The analysis showed a mixture of intergranular, and quasicleavage micromechanisms, indicating that during electrolytic plating the stud has cracked and during torque the stud fractured with localized ductile . This specification is not compatible with charging conditions.

C

Chemistry (% in weight)

Stud Analysis

0.38C; 0.26Si; 0.91Mn; 0.007P; 0.007S; 0.93Cr; 0.16Ni; 0.16Mo.

Associated Images
Fractographic analysis by scanning electron microscopy of the stud fracture surface after opening the cracks. Brittle intergranular morphology with dimples and quasecleavage micromechanisms indicate that the internal cracks, intergranular, occurred by a hydrogen embrittlement effect during electroplating, and the ductile aspects are probably associated to overloading during torque.
