Hydrogen Cracking of a 17-7 PH Subsea Spring

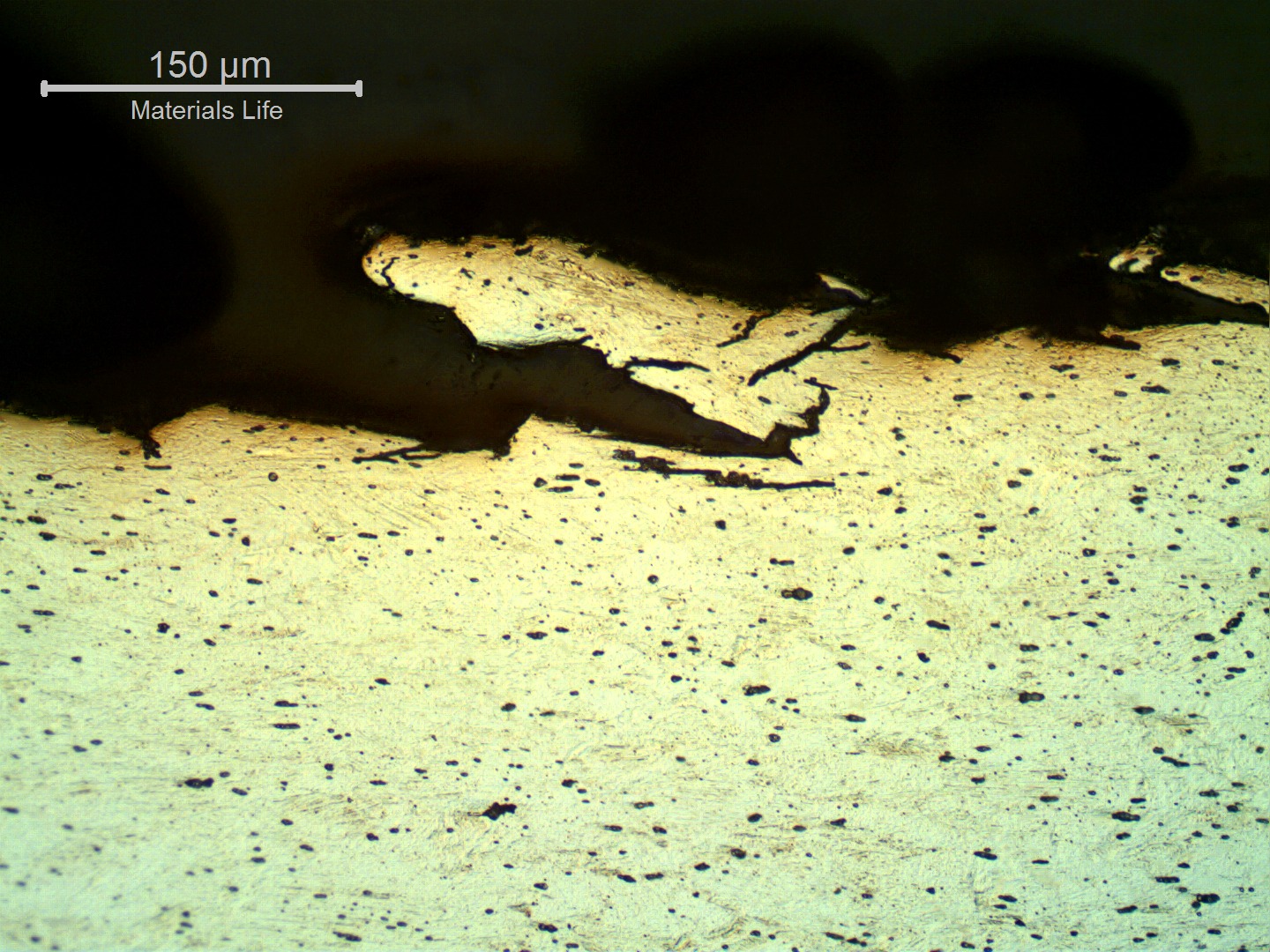

Micrography of a longitudinal section of the wire, at the fracture surface (top of the figure) evidencing the intergranular and transgranular aspects of the hydrogen assisted cracking mechanism.

10

37
of a of the , at the surface (top of the figure) evidencing the intergranular and transgranular aspects of the mechanism.
M

Material

Precipitation Hardened Stainless Steel
  • UNS S17700
Ds

Description

The spring was in operation in a and broke in a brittle way, without any variation in the operational conditions, after less than 6 month in service. The intergranular and transgranular brittle indicate a effect of this high strength exposed to seawater . Intergranular were observed all through the spring surface.

C

Chemistry (% in weight)

Small sample analysis

0.09C; 0.25Si; 0.85Mn; 17.2Cr; 7.1Ni; 0.1Mo; 1.30Al.

Associated Images
The spring presents intergranular and transgranular brittle aspects in the fracture surface.
