High Strength Austenitic SS Bolt

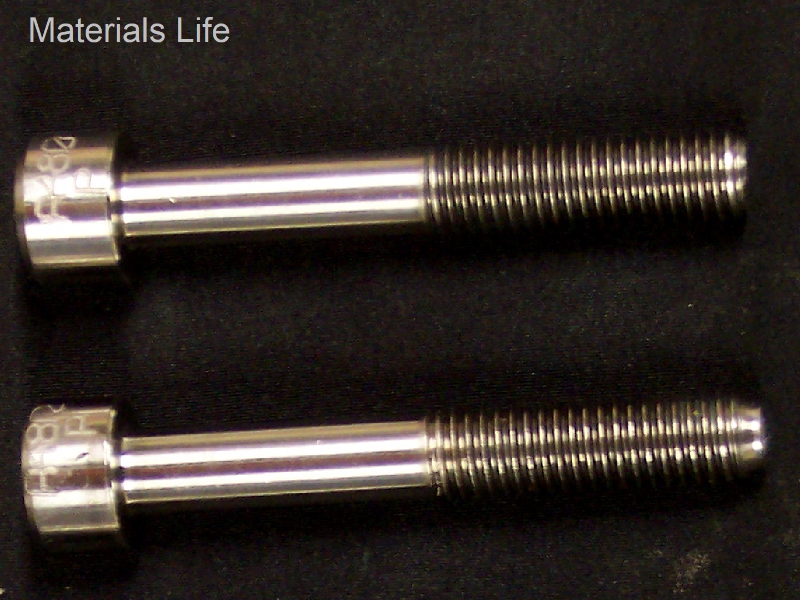

Socket head capscrew bolt, M10 x 70, 1.5 coarse thread.

4

63

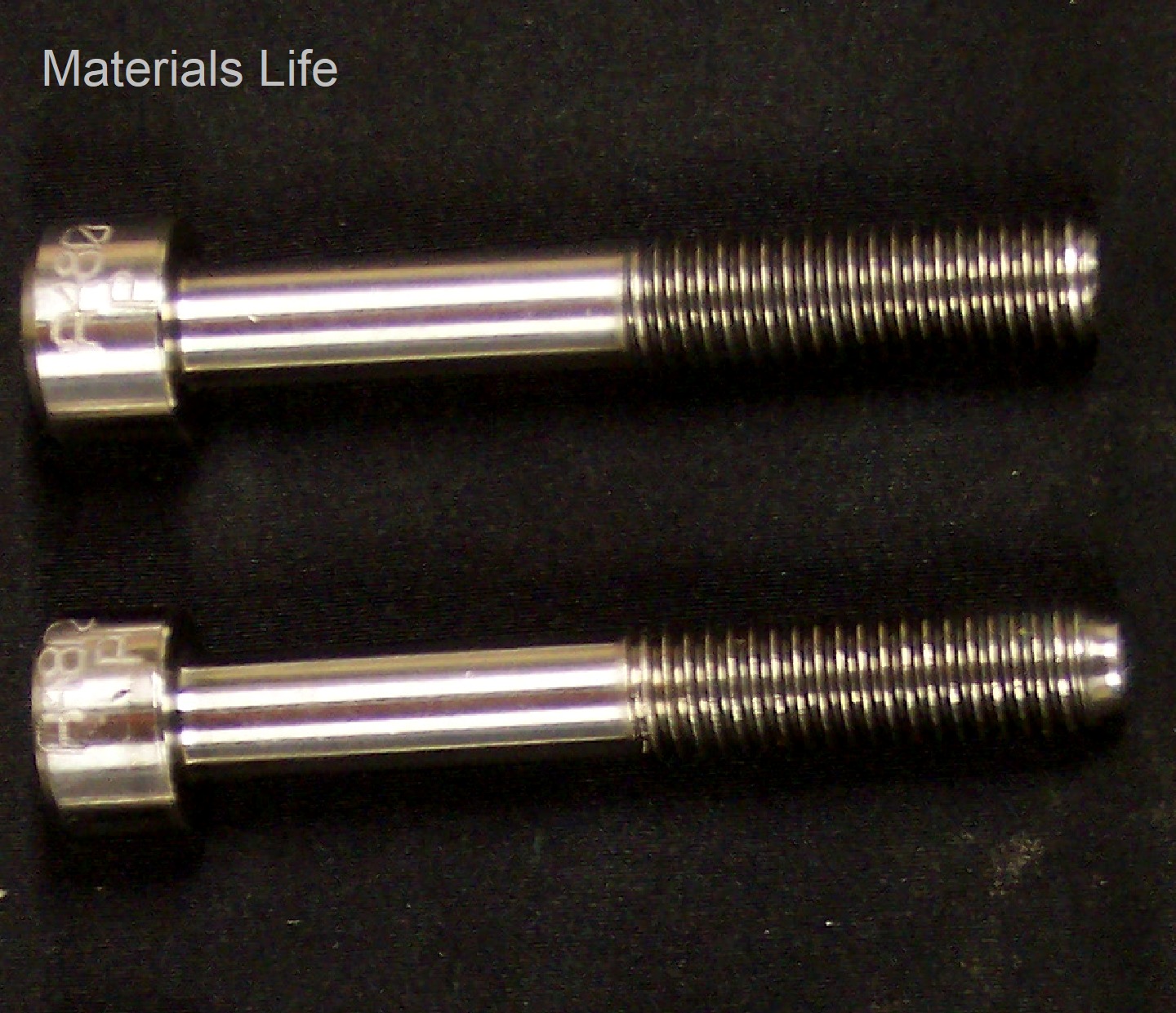

Socket head capscrew , M10 x 70, 1.5 coarse thread.
M

Material

Austenitic Stainless Steel
  • AISI 316
  • ASTM A 193 grade B8M class 2
Ds

Description

This high strength resistant alloy material was destroyed and metallurgically analyzed to qualify a new supplier of for application. The requirements for this application include maximum hardness of 35 (not to be embrittled by from ). This obtains its high strenght by (strain hardening) and the maximum actual individual hardness measured for this bolt was 31 HRc.

C

Chemistry (% in weight)

Product Analysis

0.07C; 0.42Si; 1.24Mn; 0.042P; 0.012S; 16.3Cr; 10Ni; 2.1Mo; 0.6Cu.
