ML00117 - Jan.2018

High Carbon Steel Wire Rope

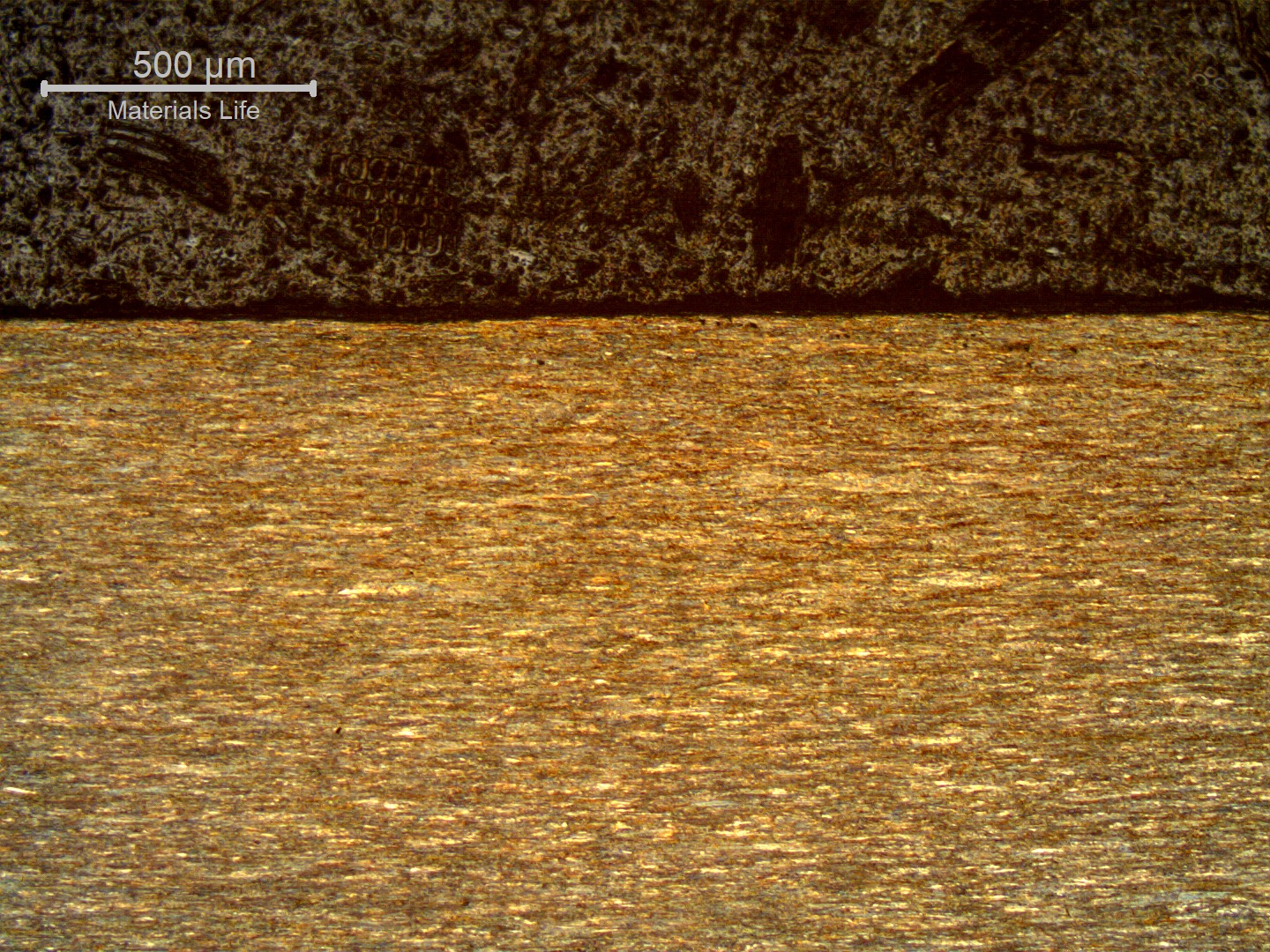

Micrography of a longitudinal section of the strand internal layer, wire of 2.6 mm diameter, at the surface, showing that the wire presents no protective layer (not galvanized nor plated) and the microstructure is strain hardened, aligned.

11

31
of a of the strand internal layer, of 2.6 mm diameter, , showing that the presents no protective layer (not galvanized nor plated) and the is , aligned.
M

Material

High Carbon Steel
  • API 9A grade 1960
  • UNS G10900
  • UNS G10800
  • UNS G10700
Ds

Description

The rope was to be evaluated concerning its integrity. It was disassembled and the wires were individually tested. No was detected. It is a high strength wire rope, construction 6 x 26, right regular lay, independent core (IWRC) with the wires of all strands and the core manufactured in extra improved plow (EIPS) that is a cold drawn high carbon steel.

C

Chemistry (% in weight)

Core wire, 2.0 mm

0.98C; 0.26Si; 0.88Mn; 0.036P; 0.029S; 0.02Cr; 0.01Ni.

Strand internal wire, 2.6 mm

0.82C; 0.23Si; 0.85Mn; 0.022P; 0.030S; 0.03Cr; 0.04Ni.

Strand external wire, 3.8 mm

0.69C; 0.23Si; 0.77Mn; 0.025P; 0.028S; 0.03Cr; 0.04Ni.

Associated Images
Wire rope, nominal diamater 2". The wire includes an independent core (IWRC) with 7 wires of 2.0 mm and 6 strands with 26 wires (1+5+[5+5]+10). The external strand layer presents a 3.8mm wire, and there are two internal strand layers with different wire sizes. The wire rope presents plastic reinforcement. It is a right regular lay AACI made by extra improved plow steel (EIPS) wires.
