Collapse in Tubular 13Cr

13Cr SS in the longitudinal section, at the collapsed region. Non uniform structure (ferritic matrix and decorated prior austenite grain boundaries) that evidences an usuitable heat treatment during fabrication, and explains the material low strenght.

2

53
13Cr in the , at the collapsed region. Non ( matrix and decorated prior grain boundaries) that evidences an usuitable during fabrication, and explains the material low strenght.
M

Material

Martensitic Stainless Steel
  • API 5CT L80
Ds

Description

The tubular joint has collapsed in service due to a manufacturing problem. The material in the failed location is (matrix) and the previous grain boundaries are decorated. It reveals an unsuitable and results in lower strength and toughness than required. Probably the material was overheated during tempering. Far from the failed region the material presented a typical .

C

Chemistry (% in weight)

Product Analysis

0.18C; 0.31Si; 0.38Mn; 0.010P; 0.003S; 12.9Cr; 0.15Ni; 0.03Mo.

Associated Images

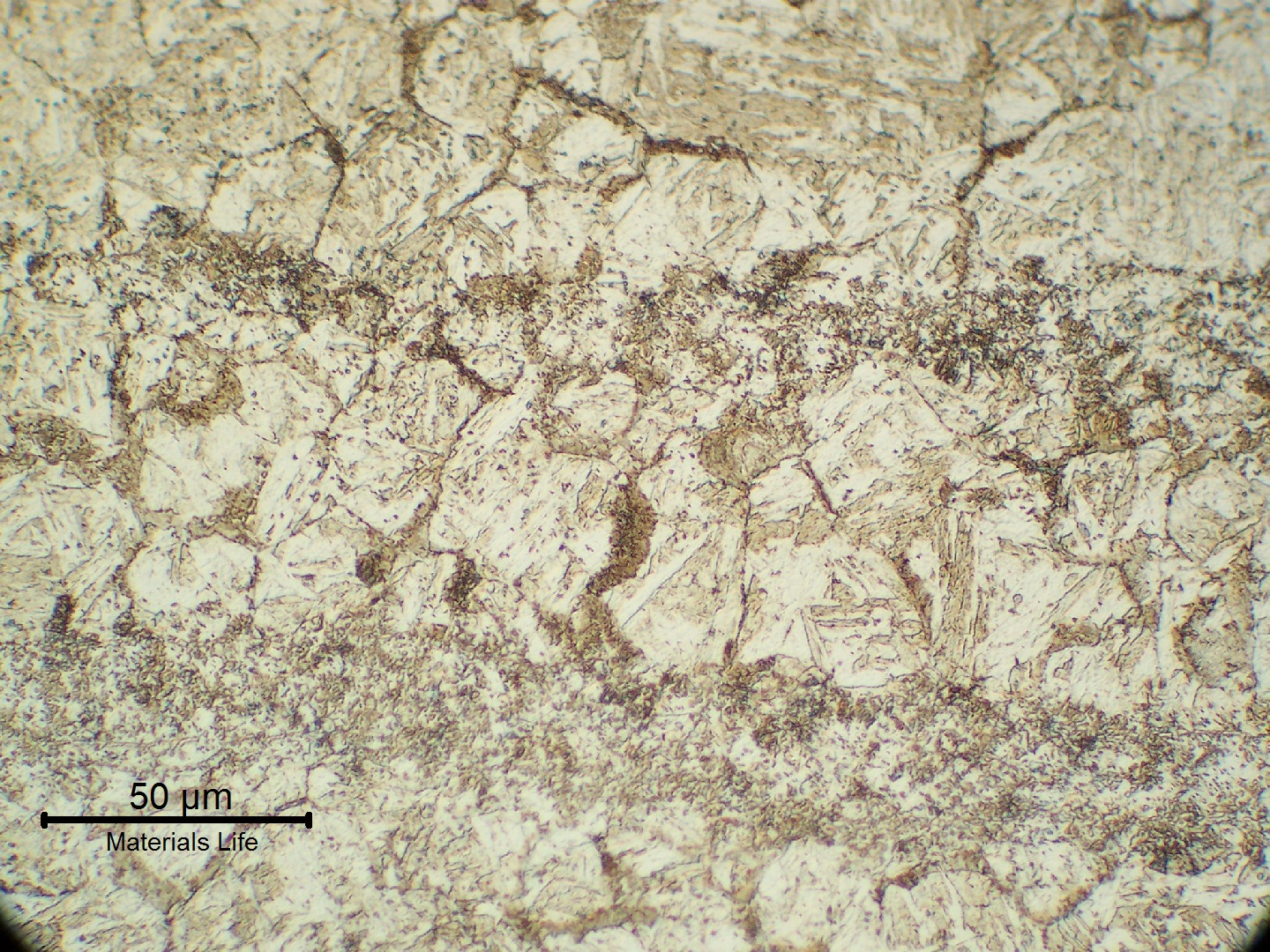

13Cr SS longitudinal section micrography, at the collapsed region, showing a ferritic matrix structure (overtempered) with the previous austenite grain boundaries decorated by phases (carbides and probably martensite islands), indicating that the material was exposed to a high tempering temperature that created a partial austenitizing condition. It explains the material low toughness and lower strenght (than required).
436
VIEW
ML00039 / Apr.2017
Collapse in Tubular 13Cr
M - Martensitic Stainless SteelP - Seamless PipeAp - Oil and GasCd - Heat Treatment Defect
