Cold Cracks in C-Mn SAW Weld Metal

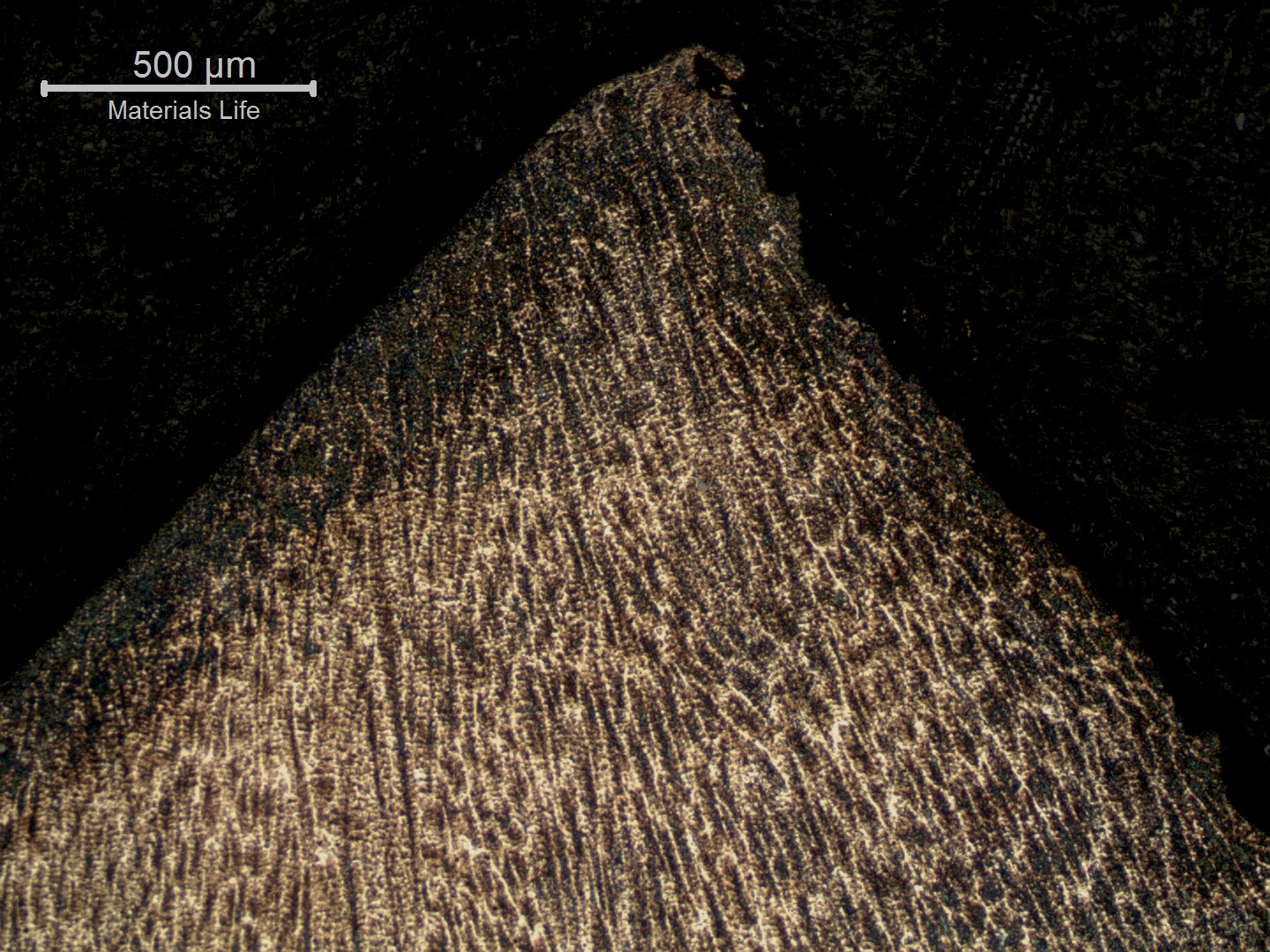

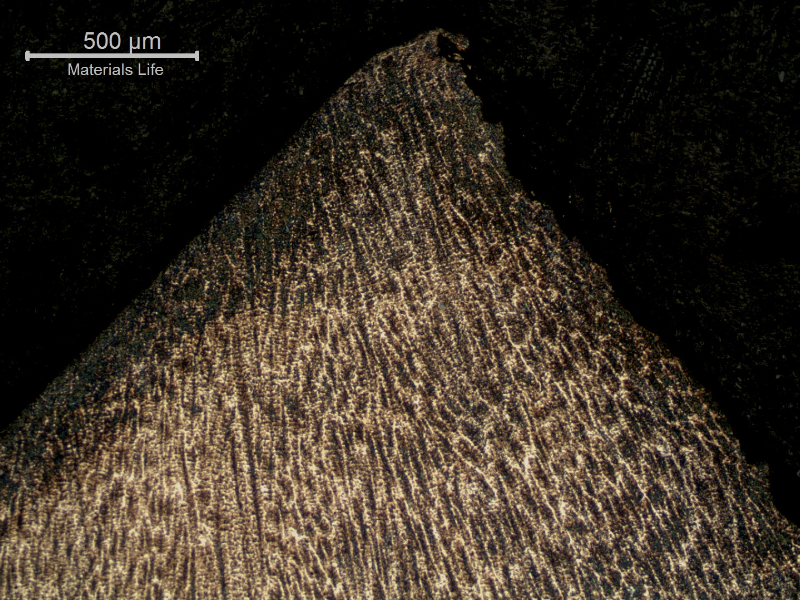

Micrography of the fractured region in the center of the fillet weld metal, that is hard due to the increase in the Mn and Si contents.

12

43
of the fractured region in the center of the metal, that is hard due to the increase in the and contents.
M

Material

CMn Steel
  • UNS G10080
  • UNS G15240
Ds

Description

During fabrication of an component using overlap between a (superior) and a C- plate (inferior) a occurred in the after , due to the adoption of an in a condition where a cleaning effect was not required, increasing the Mn and contents in the weld metal and forming a hard martensitic .

C

Chemistry (% in weight)

8 mm plate

0.06C; 0.02Si; 0.26Mn; 0.008P; 0.013S; 0.005Nb; 0.003Ti; 0.002V; 0.04Cr; 0.02Cu; 0.050Al.

12 mm plate

0.18C; 0.17Si; 1.42Mn; 0.023P; 0.004S; 0.043Nb; 0.003Ti; 0.02Cr; 0.02Cu.

Weld Metal - Non Cracked

0.10C; 0.50Si; 1.29Mn; 0.026P; 0.017S; 0.020Nb; 0.03Cr; 0.04Ni; 0.01Mo; 0.06Cu.

Cracked Weld Metal

0.13C; 0.75Si; 1.83Mn; 0.026P; 0.019S; 0.025Nb; 0.04Cr; 0.04Ni; 0.02Mo; 0.07Cu.

Associated Images
Micrography of the weld metal presenting a martensitic island with microcracks, due to a localized increase in the manganese and silicon content, probably because an active flux was adopted in a condition where a high cleanning action was not required. A high flux-to-wire ratio (>1) could also be an issue.
