Cold Cracks in API 5CT L80 Tube Welded to a Structural Part

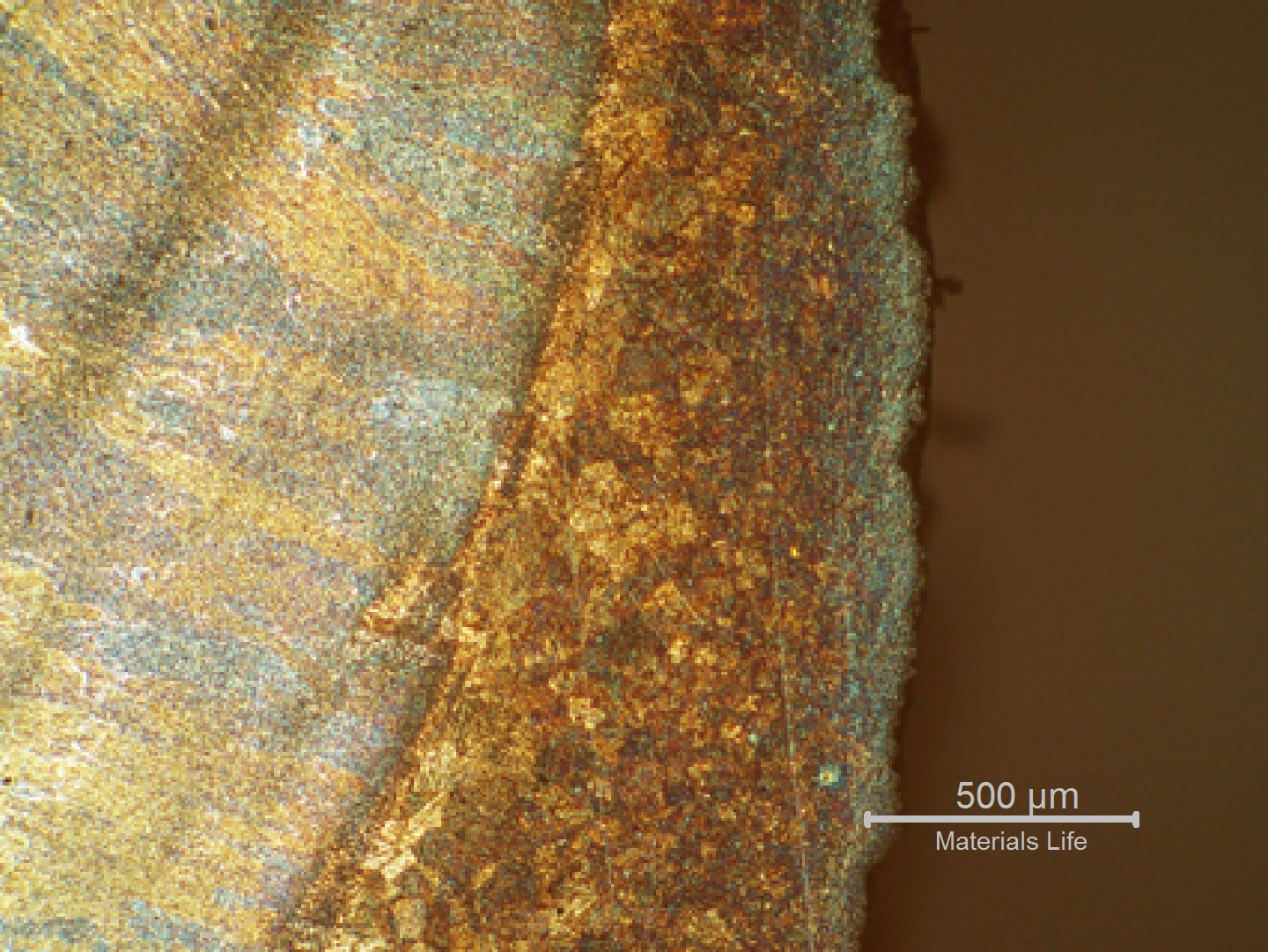

The micrography shows the region underbead, of the tube HAZ, responsible for the hydrogen cracking (fracture in the right side of the photo - black). The hardness of the HAZ is about 600 HV.

5

55
The shows the region underbead, of the , responsible for the ( in the right side of the photo - black). The hardness of the is about 600 .
M

Material

Low Alloy Steel
  • ASTM A 36
  • NF EN 10025-2
  • API 5CT L80 type 1
  • NF EN ISO 11960
Ds

Description

The L80 was welded to a adopting a (WPS) qualified for structural parts but not suitable for this high hardenability . Cold were detected during inspection of the . For the single fillet, the of the plate is bainitic and for the tube is martensitic. The of high carbon in the weld makes it , but there are high dilution zones that show large microestructural differences.

C

Chemistry (% in weight)

Plate Product Analysis

0.18C; 0.23Si; 0.85Mn; 0.024P; 0.015S.

Tube Product Analysis

0.43C; 0.23Si; 1.74Mn; 0.019P; 0.010S; 0.05Cr; 0.02Ni; 0.14Mo.
