ML00097 - Nov.2017

Cast SS Tube Removed From High Temperature Service

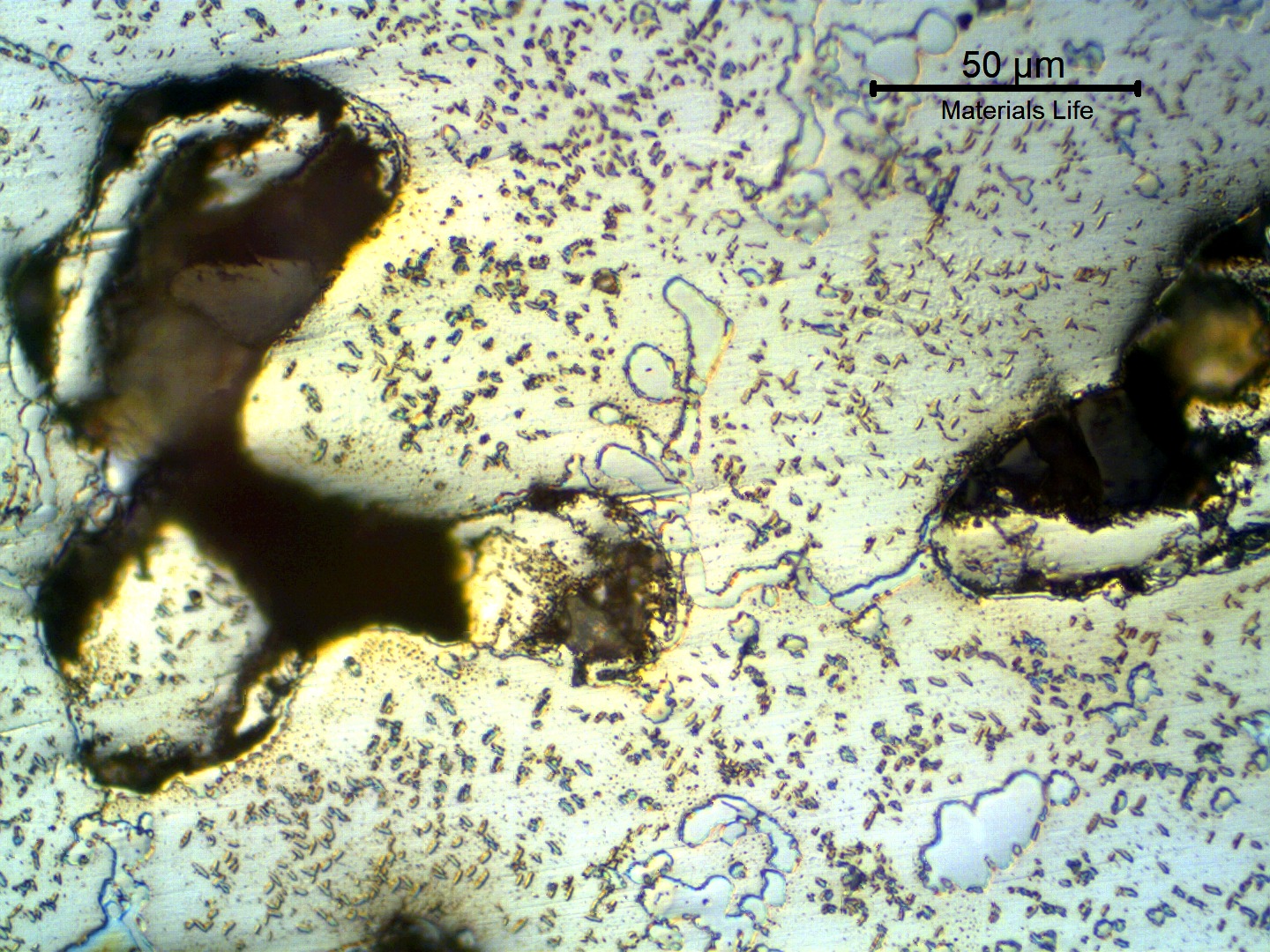

Micrography of the tube removed from service after 6 month, close to a region of a casting defect (shrinkage), presenting austenitic structure with a network of primary precipitates (initial stage of coarsening) and intragranular secondary precipitation.

5

48
of the after 6 month, close to a region of a defect (shrinkage), presenting austenitic with a network of primary precipitates (initial stage of coarsening) and intragranular secondary precipitation.
M

Material

Heat Resistant Steel
  • ASTM A 297 grade HP
Ds

Description

During maintenance of the blast furnace air heater, after 6 month in service at temperatures about 800°C, the cast was removed and compared with a new tube of the same manufacturer. The microstructural evolution was not advanced but (oxidation) was identified for both internal and external tube surfaces, more pronounced at the of the tube, where there are defects.

C

Chemistry (% in weight)

New Tube

0.40C; 1.14Si; 1.37Mn; 0.025P; 0.035S; 24.47Cr; 33.98Ni; 0.04Mo; 0.02Ti; 1.29Nb.

Removed From Service

0.52C; 1.58Si; 1.34Mn; 0.027P; 0.023S; 24.00Cr; 33.17Ni; 0.04Mo; 0.02Ti; 1.62Nb.

Associated Images
Micrography of the new tube close to a region of a casting defect (shrinkage), presenting only austenitic structure with a network of primary precipitates.
351
VIEW
ML00097 / Nov.2017
Cast SS Tube Removed From High Temperature Service
