Brittle Fracture of a LAS Valve Spring

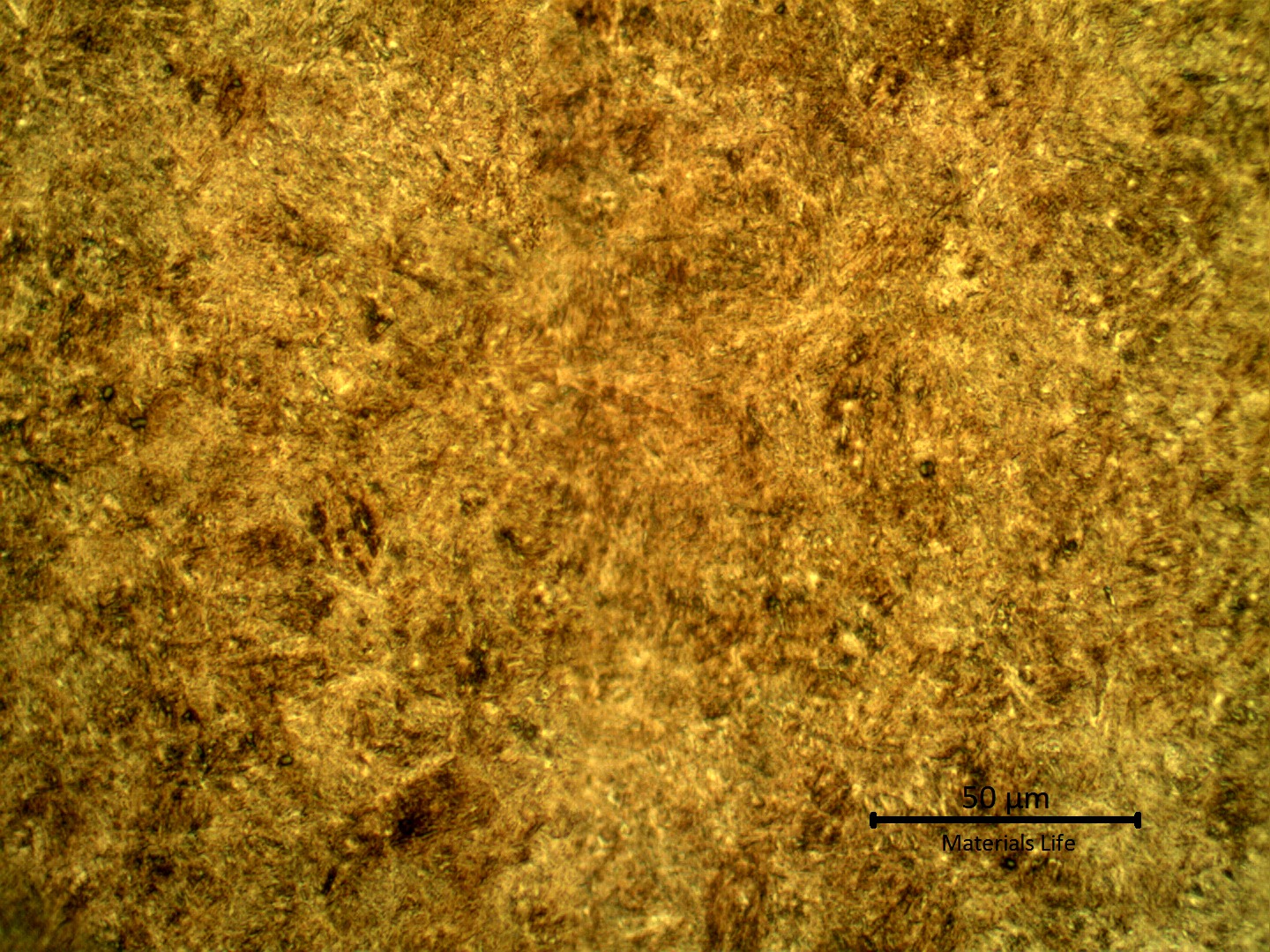

Micrographic detail of the martensitic structure, uniform through thickness.

15

17
Micrographic detail of the martensitic , uniform through thickness.
M

Material

Low Alloy Medium Carbon QT
  • AISI 6150
  • UNS G61500
Ds

Description

The was in operation for four years and, during inspection, it was identified that the valve seal was damaged and the spring was broken. The analysis indicated that the spring surface was corroded, presenting pits, and there were multiple intergranular in the bottom of the pits, suggesting a embritlement effect. The environmentally assisted cracks generated the flat of this high strength spring.

C

Chemistry (% in weight)

Product Analysis

0.51C; 0.23Si; 0.83Mn; 0.011P; 0.010S; 0.96Cr; 0.13Ni; 0.02Mo; 0.10V.

Associated Images
Aspect of the broken spring. The wire is 36 mm diameter and the ourter diameter of the spirals is 320 mm. It was broken in different locations.
