Autogenous Seam Welded Tube in Ferritic SS

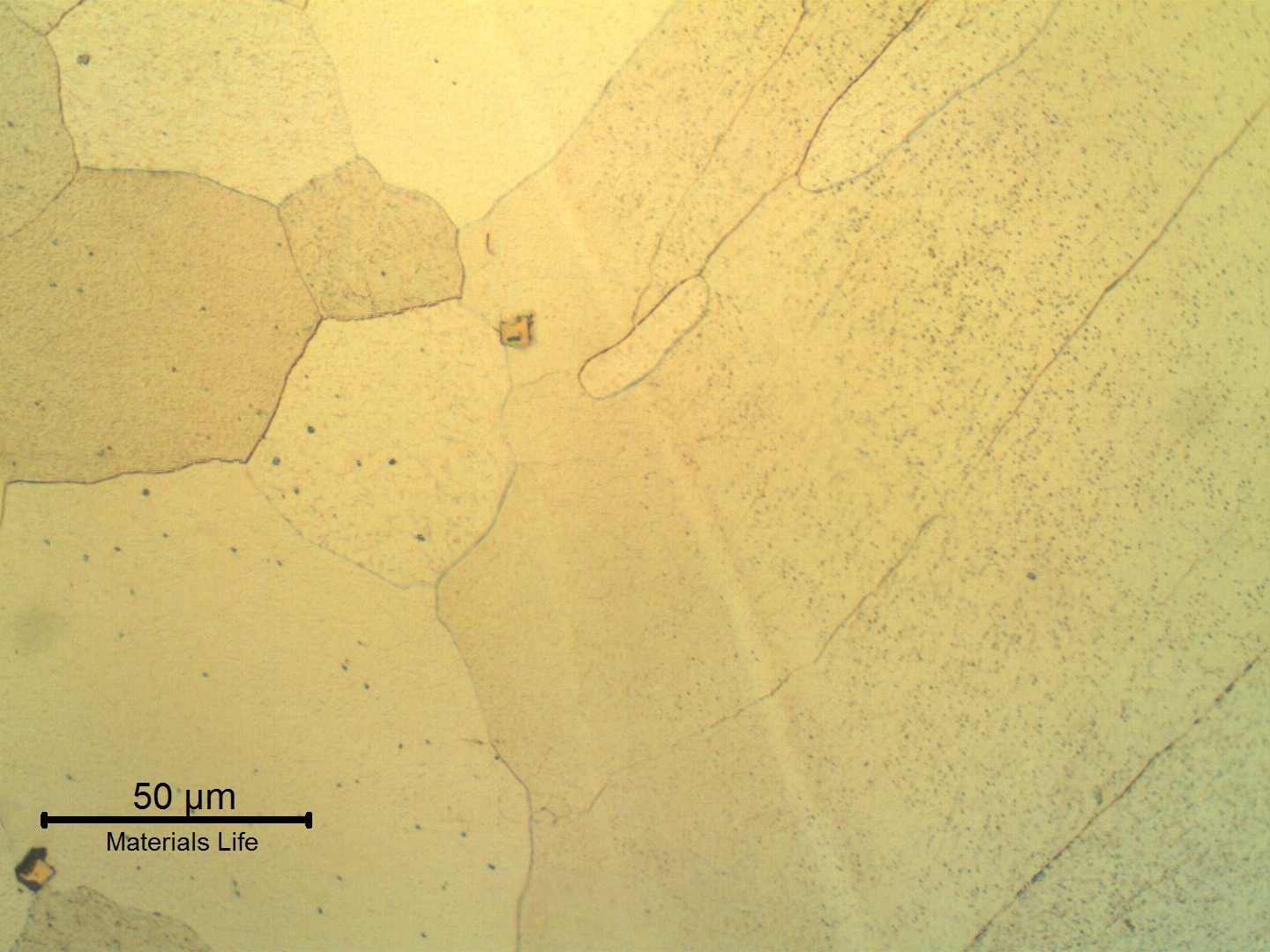

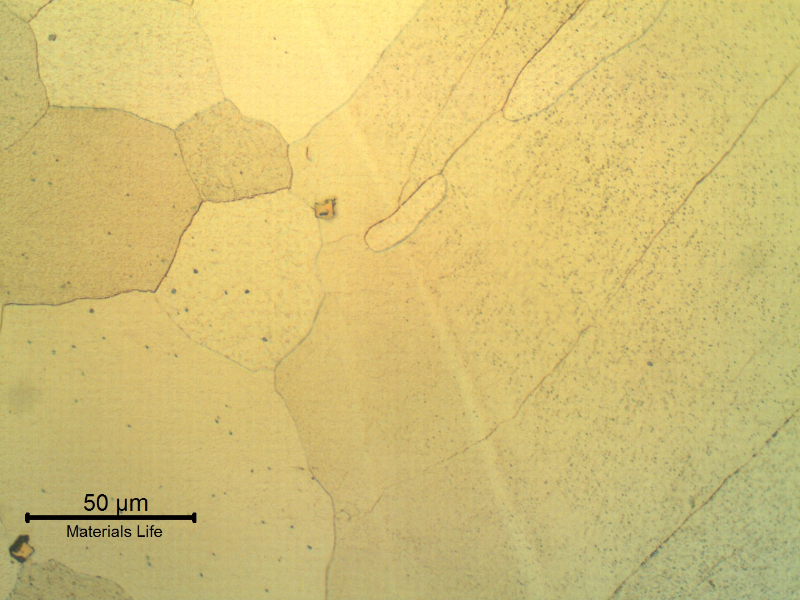

Micrography of the transverse section of the tube presenting the autogenous weld at the fusion line.

10

27
of the of the presenting the at the .
M

Material

Ferritic Stainless Steel
  • UNS S40900
  • ASTM A 268 TP 409
Ds

Description

adopted for resisting the temperature and corrosive action of exhausting gases from combustion .

C

Chemistry (% in weight)

Product Analysis

0.04C; 0.61Si; 0.22Mn; 0.018P; 0.005S; 11.55Cr; 0.22Ni; 0.02Mo; 0.54Ti.
