Autogenous Seam Welded Tube in Ferritic SS

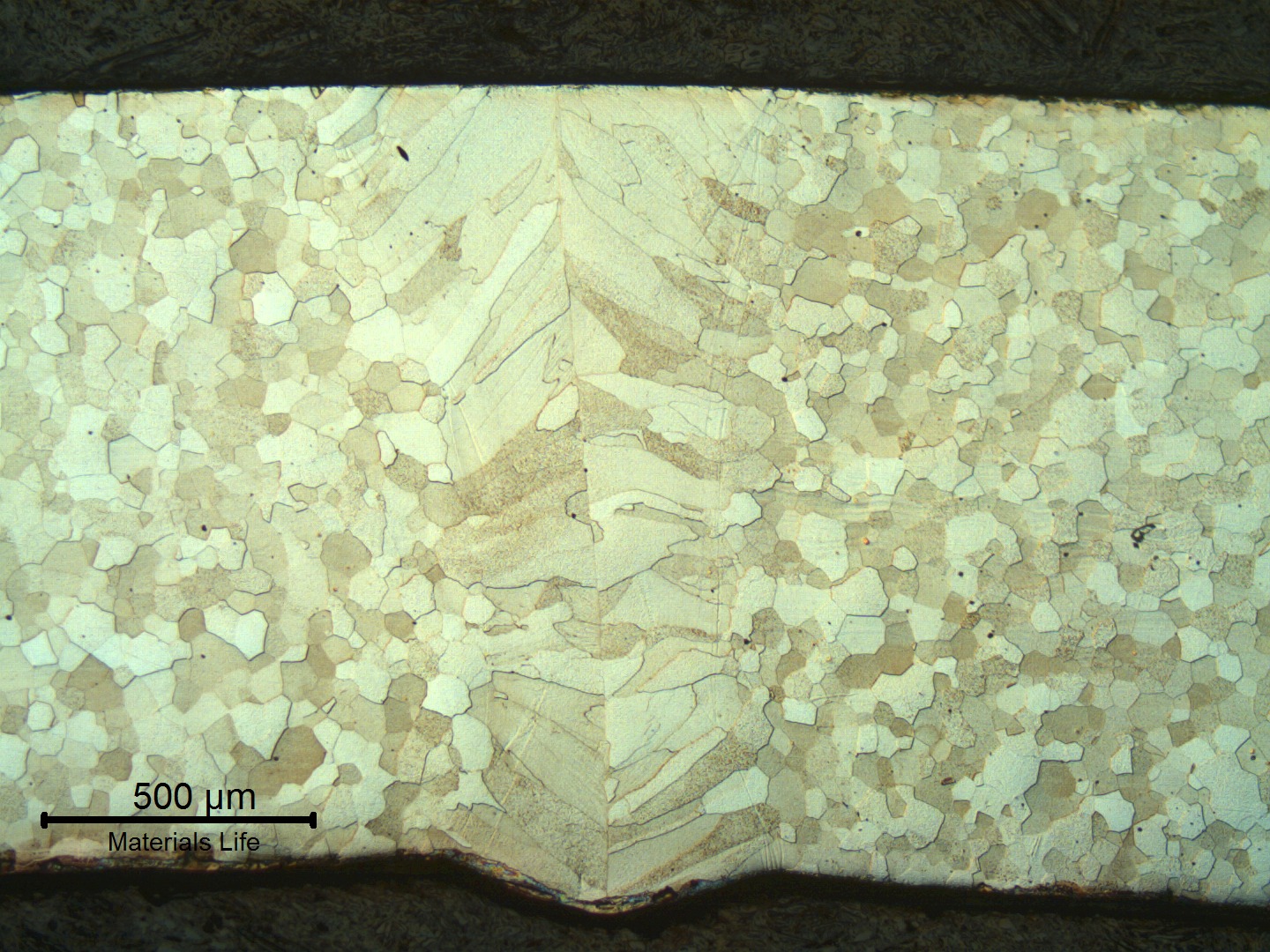

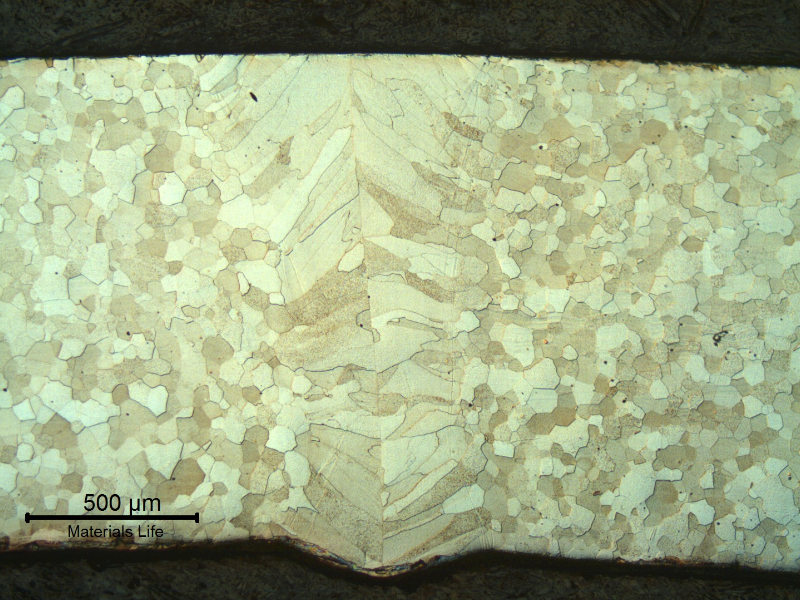

Transverse section of the 1/16" thick tube at the autogenous seam weld.

1

588
of the 1/16" thick at the autogenous weld.
M

Material

Ferritic Stainless Steel
  • UNS S40900
  • ASTM A 268 TP 409
Ds

Description

adopted for resisting the temperature and corrosive action of exhausting gases from combustion .

C

Chemistry (% in weight)

Product Analysis

0.04C; 0.61Si; 0.22Mn; 0.018P; 0.005S; 11.55Cr; 0.22Ni; 0.02Mo; 0.54Ti.

Associated Images
Transverse section of the 1/16" thick tube at the autogenous seam weld.
588
VIEW
ML00026 / Feb.2017
Autogenous Seam Welded Tube in Ferritic SS
M - Ferritic Stainless SteelP - Fabrication WeldAp - AutomotiveCd - Typical manufacturing
Cm - Kalling Etched Micrography by OMDf - Autogenous Weld
Seam welded tube, nominal diameter 2 1/4" and thickness 1/16".
