ML00102 - May.2018

AISI 4130 Forging Welded and Overlaid

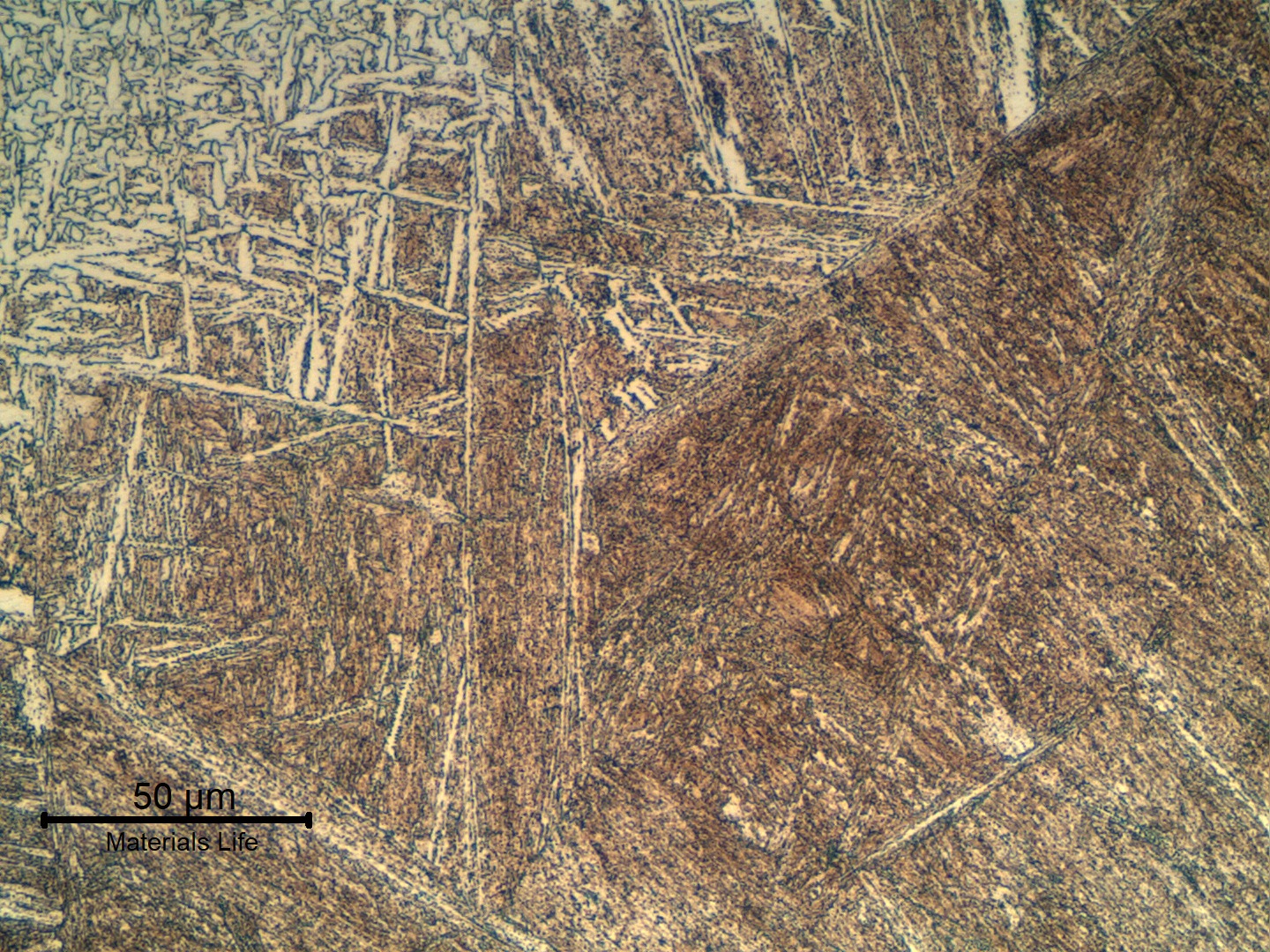

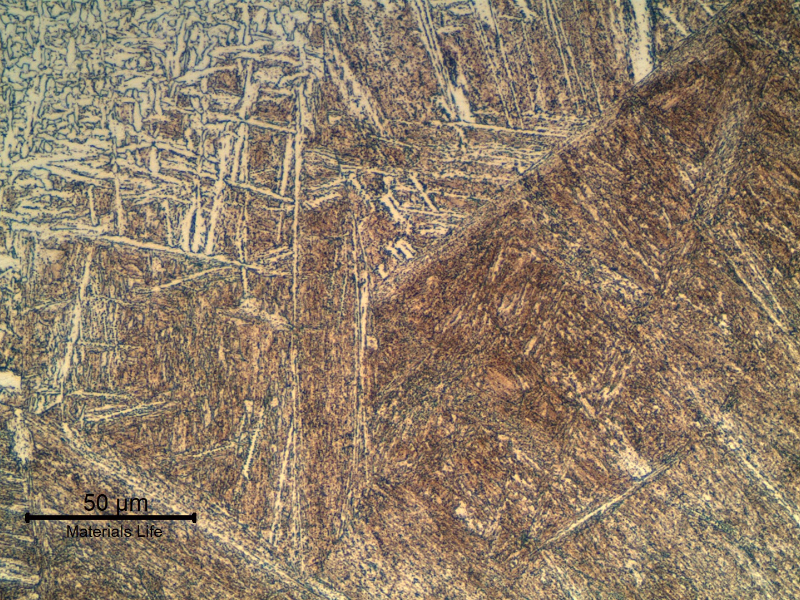

Micrographic detail of the tempered martensitic structure of the tubular 4130 forging butt weld HAZ (at the face). The martensite was formed during welding, not reheated (because it was the last bead in that position), and tempered during PWHT.

10

43
Micrographic detail of the tempered martensitic of the tubular 4130 butt weld (at the face). The was formed during , not reheated (because it was the last bead in that position), and tempered during .
M

Material

Low Alloy Steel
  • AISI 4130
  • ALLOY 625
Ds

Description

A tubular normalized and tempered , modified (tempered at 660°C), presenting a butt weld to a and a full of Inconel 625 at the internal diameter, was metallurgically analyzed to see if the application of a single (at 630°C) after the two conditions (joining and overlay) was effective to restrict the maximum hardness level to 22HRc at the (HAZ), which proved to be successful.

C

Chemistry (% in weight)

Base Metal Analysis

0.31C; 0.33Si; 0.52Mn; 0.007P; 0.009S; 0.95Cr; 0.32Ni; 0.17Mo; 0.02Cu; 0.030V.

Associated Images
Macrography of the tubular forging, butt welded using a LAS filler metal, and overlaid using Inconel 625 filler metal. The micrographic characterization was conducted for the HAZ of the overlay and for the HAZ of the butt weld, at the root position (with several welding cycles) and at the face.
