ML00027 - Apr.2017

Adhesive Wear of Spur Gear Rack

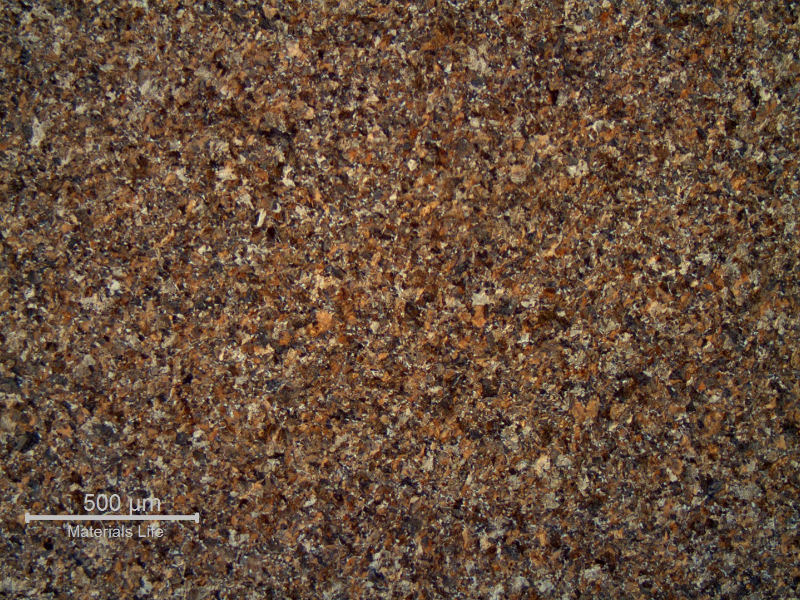

SPUR GEAR ferritic perlitic microstructure in the center of the tooth. Predominantly perlitic.

14

34

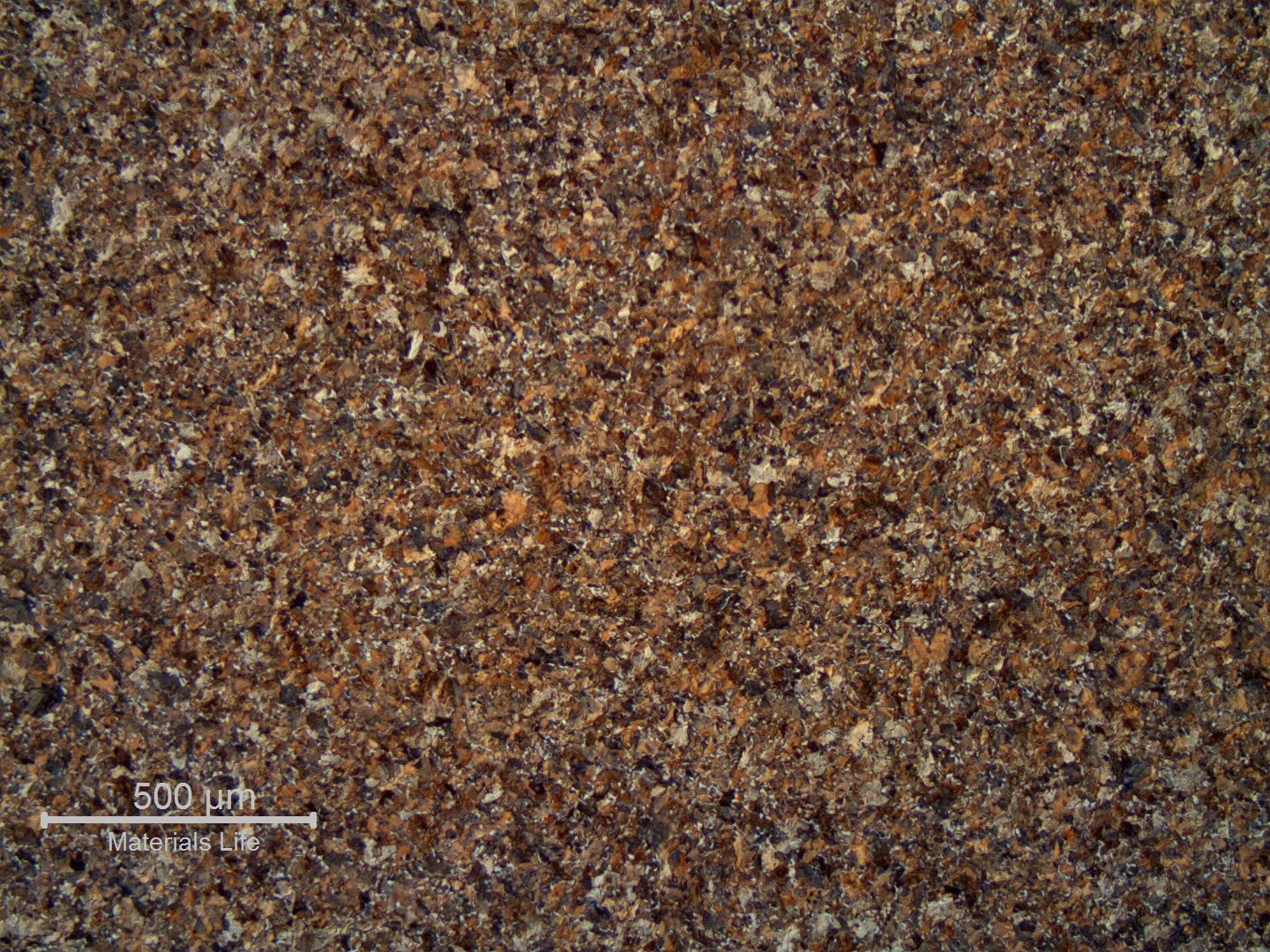

SPUR GEAR perlitic in the center of the tooth. Predominantly perlitic.
M

Material

Medium Carbon Steel
  • UNS G10450
  • UNS G10550
Ds

Description

The spur gear/rack coupling has failed after a short time in service. The parts were not surface hardened.

C

Chemistry (% in weight)

Spur Rack

0.44C; 0.25Si; 0.72Mn; 0.022P; 0.017S; 0.10Cr; 0.08Ni; 0.02Mo.

Spur Gear

0.56C; 0.28Si; 0.65Mn; 0.019P; 0.009S; 0.21Cr; 0.13Ni; 0.05Mo.

Associated Images
The tooth contact surface of the SPUR RACK shows adhesive wear damage after a short time in service.
501
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Aspect Before AnalysisDf - Metal to Metal Wear
The macrography of the transverse tooth section of the SPUR GEAR shows that the surface is not hardened by any process or treatment.
105
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - NItal Etched MacroDf - Non Hardened Surface
A detail of the macrography, by stereoscope, of the SPUR RACK shows strong plastic deformation at the contact surface.
88
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - NItal Etched MacroDf - Plastic Deformation
SPUR RACK ferritic perlitic microstructure in the center of the tooth.
89
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Ferrite and Pearlite
SPUR RACK ferritic perlitic microstructure in the center of the tooth.
77
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Ferrite and Pearlite
SPUR RACK ferritic perlitic microstructure in the center of the tooth.
67
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Ferrite and Pearlite
SPUR RACK ferritic perlitic microstructure in the surface of the tooth, evidencing no surface hardening treatment.
54
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Non Hardened Surface
The non hardened surface of the SPUR RACK tooth presents a strong plastic deformation at the metal to metal contact region.
51
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Plastic Deformation
The non hardened surface of the SPUR RACK tooth presents a strong plastic deformation at the metal to metal contact region. There are also evidences of heat transformation due to the heat generated in the sliding.
49
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Plastic Deformation
The non hardened surface of the SPUR RACK tooth presents a strong plastic deformation at the metal to metal contact region. There are also evidences of heat transformation due to the heat generated in the sliding.
44
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Plastic Deformation
The tooth contact surface of the SPUR GEAR shows adhesive wear damage after a short time in service.
52
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Aspect Before AnalysisDf - Metal to Metal Wear
The macrography of the transverse tooth section of the SPUR GEAR shows that the surface is not hardened by any process or treatment.
43
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - NItal Etched MacroDf - Non Hardened Surface
A detail of the macrography, by stereoscope, of the SPUR GEAR shows strong plastic deformation at the contact surface.
37
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - NItal Etched MacroDf - Plastic Deformation
SPUR GEAR ferritic perlitic microstructure in the center of the tooth. Predominantly perlitic.
34
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Ferrite and Pearlite
SPUR GEAR ferritic perlitic microstructure in the center of the tooth. Predominantly perlitic.
32
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Ferrite and Pearlite
SPUR GEAR ferritic perlitic microstructure in the center of the tooth. Predominantly perlitic.
32
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Ferrite and Pearlite
SPUR GEAR ferritic perlitic microstructure in the surface of the tooth, evidencing no surface hardening treatment.
24
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Non Hardened Surface
The non hardened surface of the SPUR GEAR tooth presents a strong plastic deformation at the metal to metal contact region.
26
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Plastic Deformation
The non hardened surface of the SPUR GEAR tooth presents a strong plastic deformation at the metal to metal contact region.
25
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Plastic Deformation
The non hardened surface of the SPUR GEAR tooth presents a strong plastic deformation at the metal to metal contact region.
24
VIEW
ML00027 / Apr.2017
Adhesive Wear of Spur Gear Rack
M - Medium Carbon SteelP - Spur GearAp - Mechanical IndustryCd - Adhesive Wear
Cm - Nital Etched Micrography by OMDf - Plastic Deformation
