45 Years Old Acquaduct Grey Cast Iron

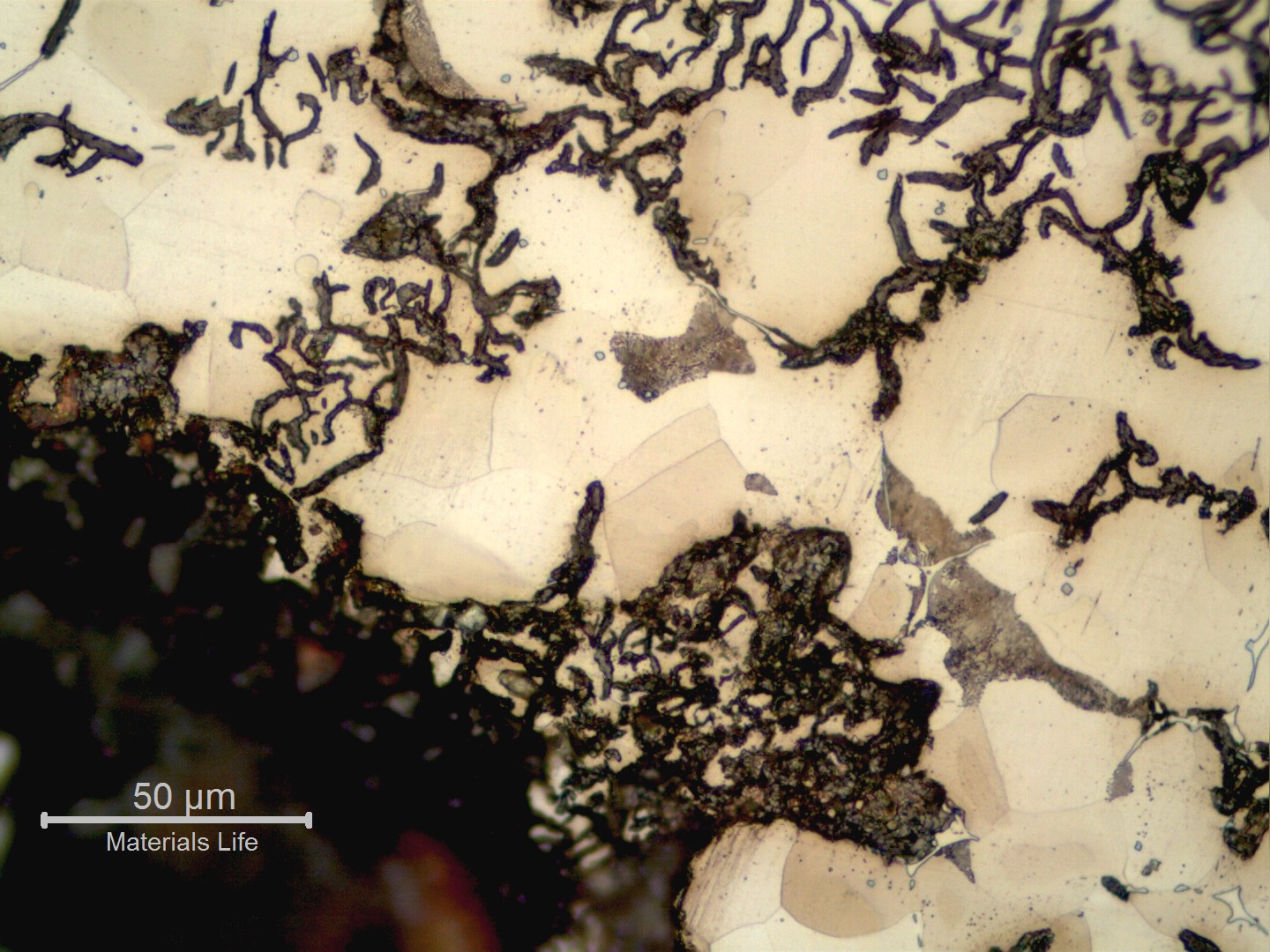

Micrographic detail of the graphite/matrix interface corrosion, leading to a general corrosion loss.

2

189
Micrographic detail of the graphite/matrix interface , leading to a general loss.
M

Material

Gray Cast iron
  • ASTM A 48 grade 25
Ds

Description

The was working in a buried Acquaduct during 45 years and presented 2 mm wall thickness loss. The of this pipe evidenced a large variation in the graphite type through wall, and the matrix is close to the and ferritic perlitic close to the .

C

Chemistry (% in weight)

Product Analysis

3.25C; 1.70Si; 0.51Mn; 0.340P; 0.060S; 0.03Cr; 0.04Ni; 0.01Cu.

Associated Images
The micrography of a longitudinal section of the pipe, close to the internal surface, shows a general corrosion mechanism (with slow wall thickness loss), although the graphite/matrix interface is corroded preferentially.
