ML00112 - Dec.2017

1" XXS Pipe Not Qualified For Low Temp

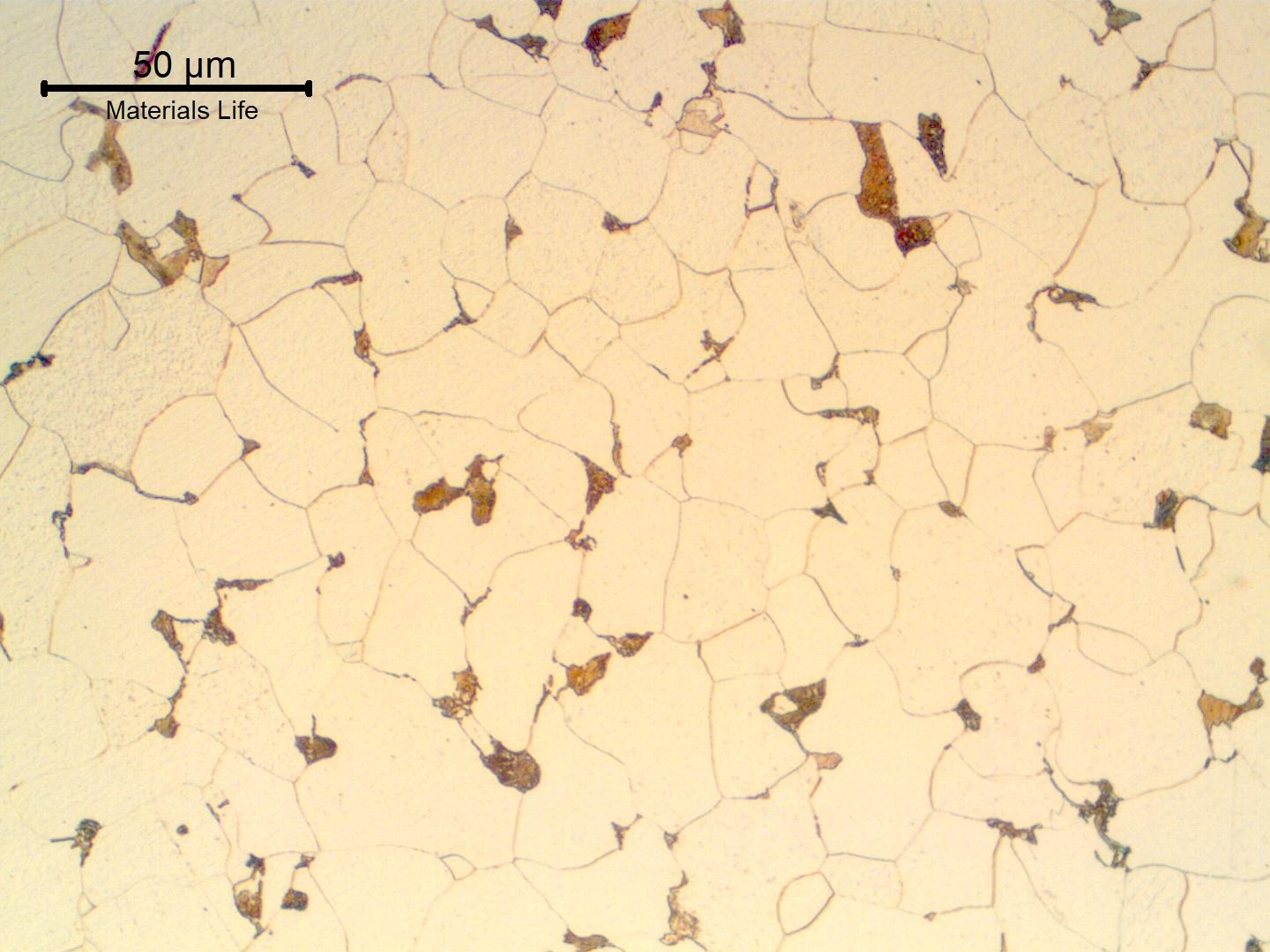

Micrography of a transverse section of the pipe, external diameter 33.4 mm schedule XXS, in the center of the 9.1 mm thickness. The structure is predominantly ferritic. Small amount of pearlite.
