Seamless Pipe Overlaid with Alloy 625

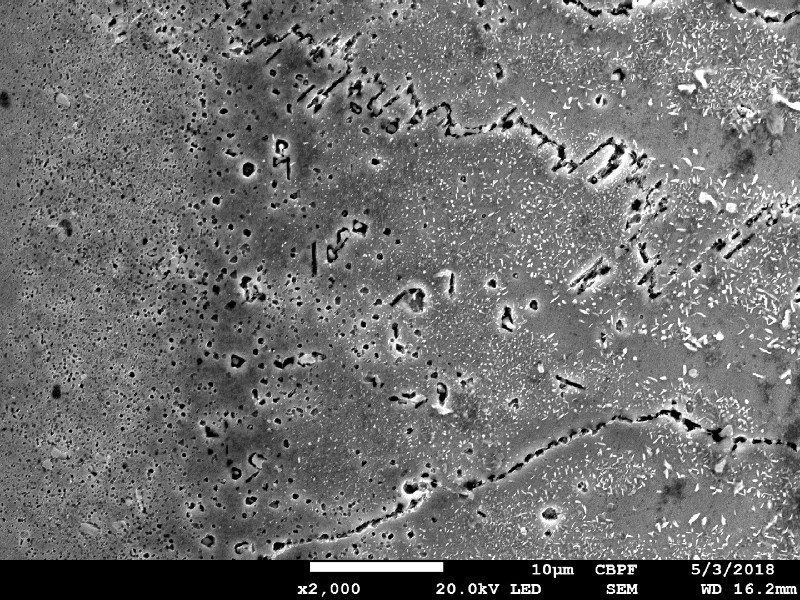

Image by scanning electron microscopy of the metallurgically bonded interface of the internally cladded pipe. It is a seamless pipe in a low alloy steel X70 cladded by welding overlay of Alloy 625 (by automatic GTAW process). The region is a detail of the interface inside the Ni alloy weld metal, presenting columnar grains and intragranular preciptation. The pipe was heat treated before bending (solution annealing) and after bending (quenching and tempering to meet X70 grade). The microhardness of this region is higher than the value obtained out of this region, in the overlay.

1

656
Image by of the metallurgically bonded interface of the internally cladded . It is a in a X70 cladded by overlay of (by automatic process). The region is a detail of the interface inside the alloy , presenting and intragranular preciptation. The was heat treated before () and after (quenching and tempering to meet X70 grade). The microhardness of this region is higher than the value obtained out of this region, in the overlay.
M

Material

LAS / Ni Alloy
  • API 5L grade X70
  • ALLOY 625
Ds

Description

The presented an internal overlay of in a seamless X70 , heat treated to be bent and to meet X70 properties. The alloy was deposited in two layers by a process. The presented (with celular morphology) and at the interface, that is harder than the pipe substrate and the rest of the overlay. The chemistry presented maximum of 5% (and at 3 mm from ).

C

Chemistry (% in weight)

Cladding Analysis (surface)

63.2Ni; 20.1Cr; 0.008Cu; 4.35Fe; 0.04Co; 8.2Mo; 0.04W; 3.55Nb; 0.20Ti; 0.18Al; 0.02C; 0.05Mn; 0.04Si; 0.001S; 0.004P.

Associated Images

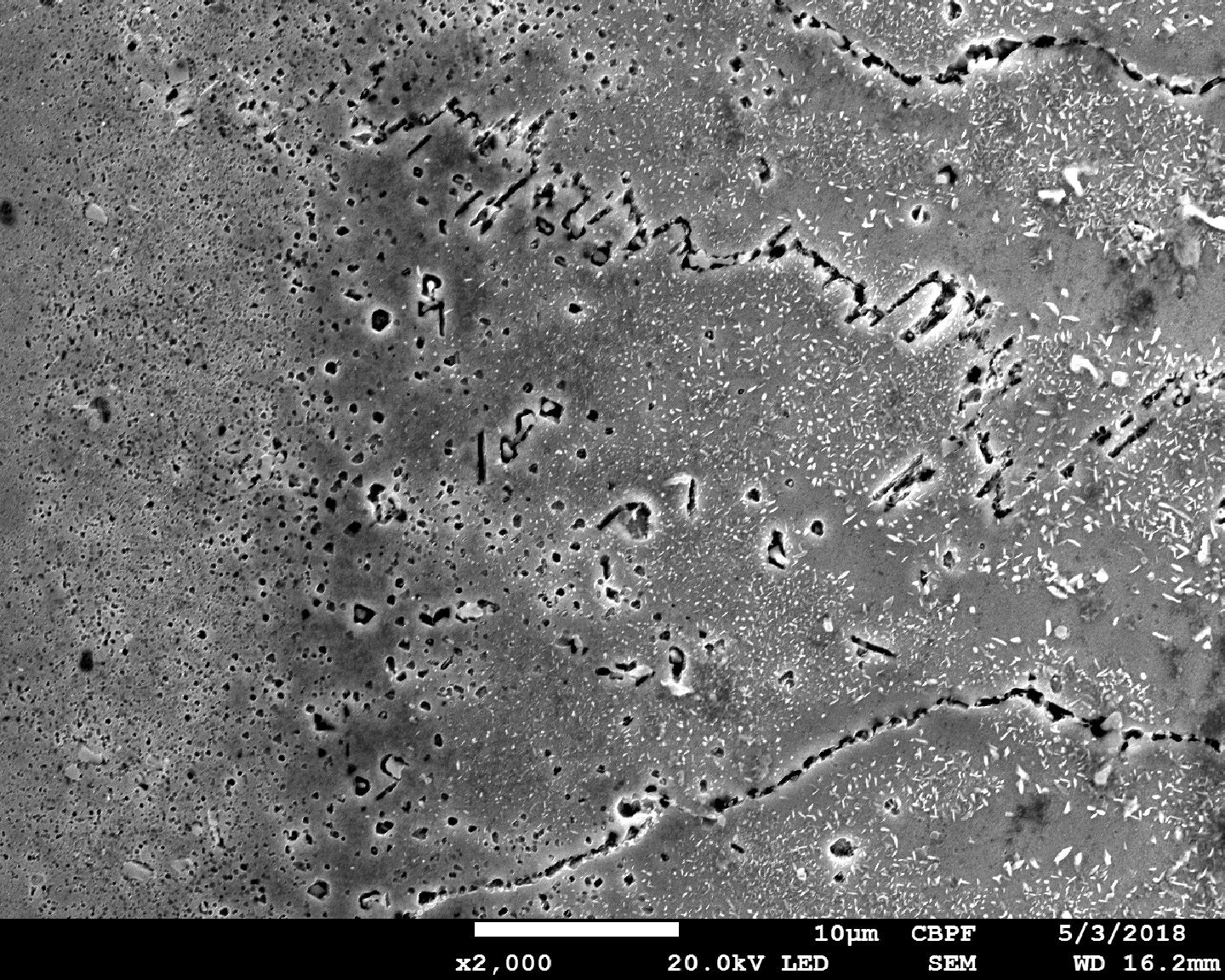

Image by scanning electron microscopy of the metallurgically bonded interface of the internally cladded pipe. It is a seamless pipe in a low alloy steel X70 cladded by welding overlay of Alloy 625 (by automatic GTAW process). The region is a detail of the interface inside the Ni alloy weld metal, presenting columnar grains and intragranular preciptation. The pipe was heat treated before bending (solution annealing) and after bending (quenching and tempering to meet X70 grade). The microhardness of this region is higher than the value obtained out of this region, in the overlay.
656
VIEW
ML00132 / May.2018
Seamless Pipe Overlaid with Alloy 625
M - LAS / Ni AlloyP - Seamless PipeAp - Oil and GasCd - Welding
Cm - Electrolytic Etch Micrography by SEMDf - Clad Interface
The 4 1/2" nominal diameter seamless pipe internally overlaid with Alloy 625. This pipe corresponds to a 90° curve. The overlaid pipe was heat treated before and after bending. The final quenching and tempering heat treatment was conducted to meet API 5L X70 properties.
113
VIEW
ML00132 / May.2018
Seamless Pipe Overlaid with Alloy 625
M - LAS / Ni AlloyP - Seamless PipeAp - Oil and GasCd - Welding
Cm - Aspect Before AnalysisDf - Welded Joint
The macrography of a longitudinal section shows the low alloy (C-Mn) steel pipe, internally cladded by overlay in two layers.
