High Strength 316SS Bolt

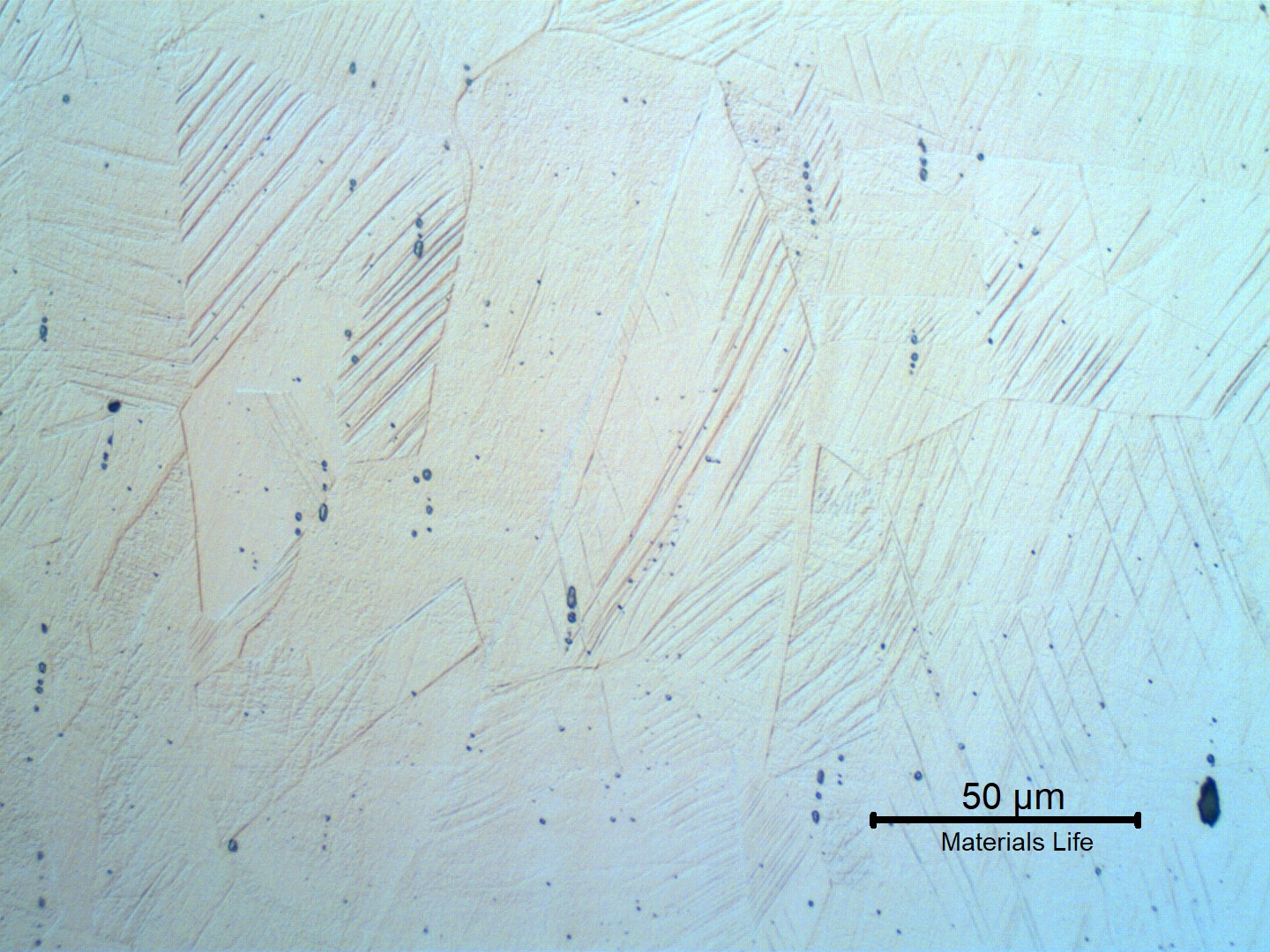

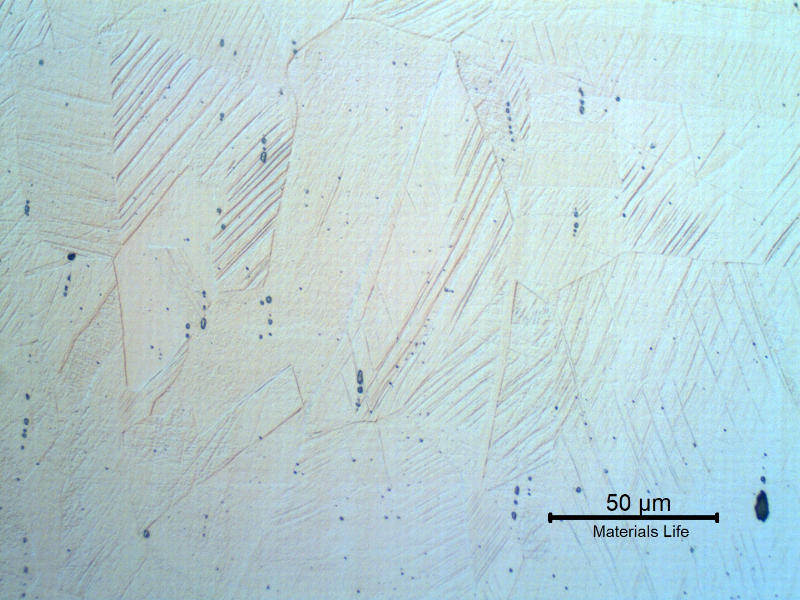

Micrographic detail of the strain hardened austenitic structure in the longitudinal section of the bolt.

1

441
Micrographic detail of the austenitic in the of the .
M

Material

Austenitic Stainless Steel
  • AISI 316
  • ASTM A 193 grade B8M class 2
Ds

Description

This high strength resistant alloy material was destroyed and metallurgically analyzed to qualify a new supplier of for application. The requirements for this application include maximum hardness of 35 (not to be embrittled by from ). This obtains its high strength by (strain hardening) and the maximum actual individual hardness measured for this material was 31 HRc.

C

Chemistry (% in weight)

Product Analysis

0.038C; 0.35Si; 1.15Mn; 0.029P; 0.014S; 16.5Cr; 11.4Ni; 2.1Mo; 0.31Cu.

Associated Images
Micrographic detail of the strain hardened austenitic structure in the longitudinal section of the bolt.
441
VIEW
ML00101 / Nov.2017
High Strength 316SS Bolt
M - Austenitic Stainless SteelP - BoltAp - SubseaCd - Typical manufacturing
Cm - Micrography by OM using A262 Method ADf - Austenite
Micrography of the longitudinal section of the bolt, in the center of the body thickness. Strain hardened austenic structure.
