ML00096 - Oct.2017

Carbon Steel Tee Rail

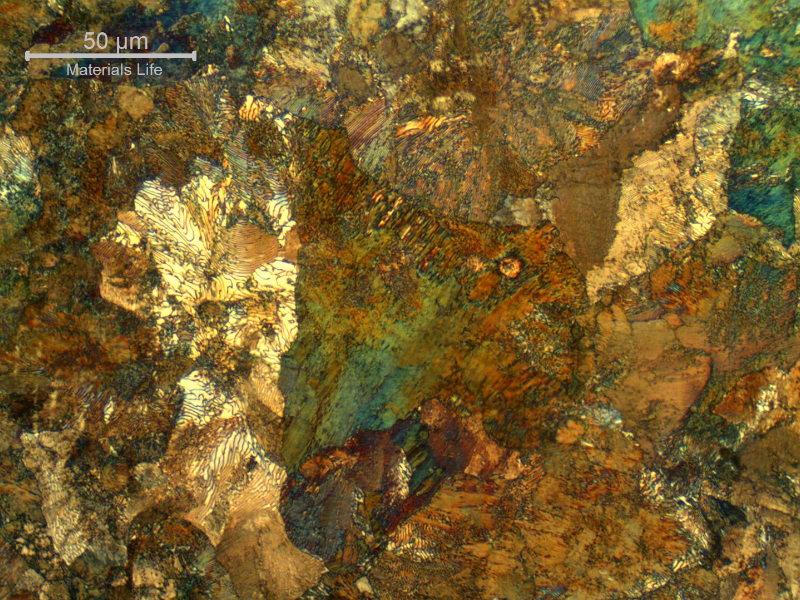

Micrographic detail of a transverse section of the rail, in the head, showing a fully perlitic structure.

1

520
Micrographic detail of a of the rail, in the head, showing a fully perlitic .
M

Material

High Strength Low Alloy
  • ASTM A 1
Ds

Description

This transport rail was qualified for adoption in a transportation system.

C

Chemistry (% in weight)

Rail analysis

0.72C; 0.45Si; 1.05Mn; 0.015P; 0.015S; 0.25Cr; 0.10Ni; 0.03Mo; 0.21Cu.

Associated Images

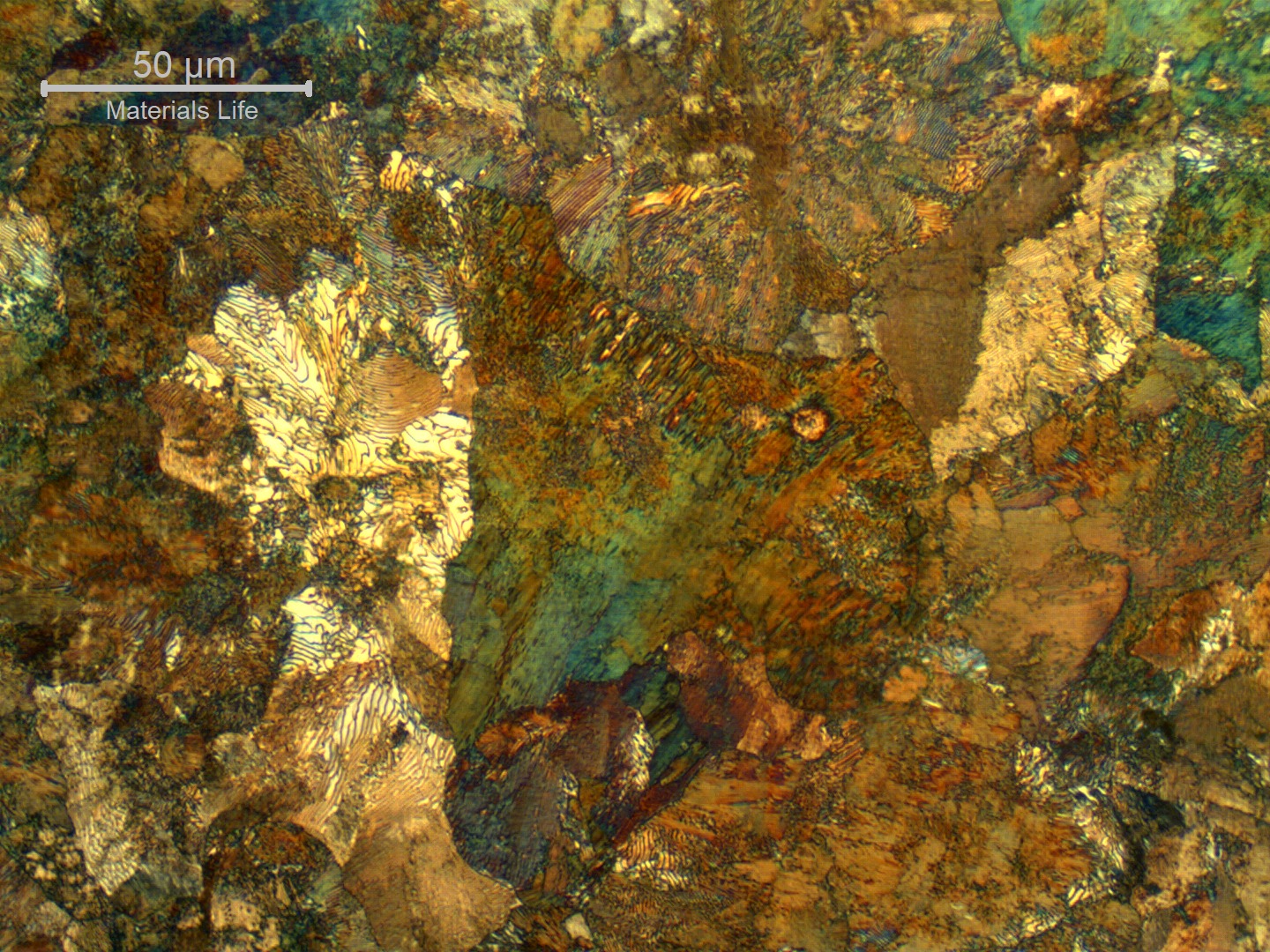

Micrographic detail of a transverse section of the rail, in the head, showing a fully perlitic structure.
520
VIEW
ML00096 / Oct.2017
Carbon Steel Tee Rail
M - High Strength Low AlloyP - RailAp - TransportationCd - Typical manufacturing
Cm - Nital Etched Micrography by OMDf - Pearlite
Micrographic detail of a transverse section of the rail, in the head, showing a fully perlitic structure.
